Postazione di lavoro e di comando

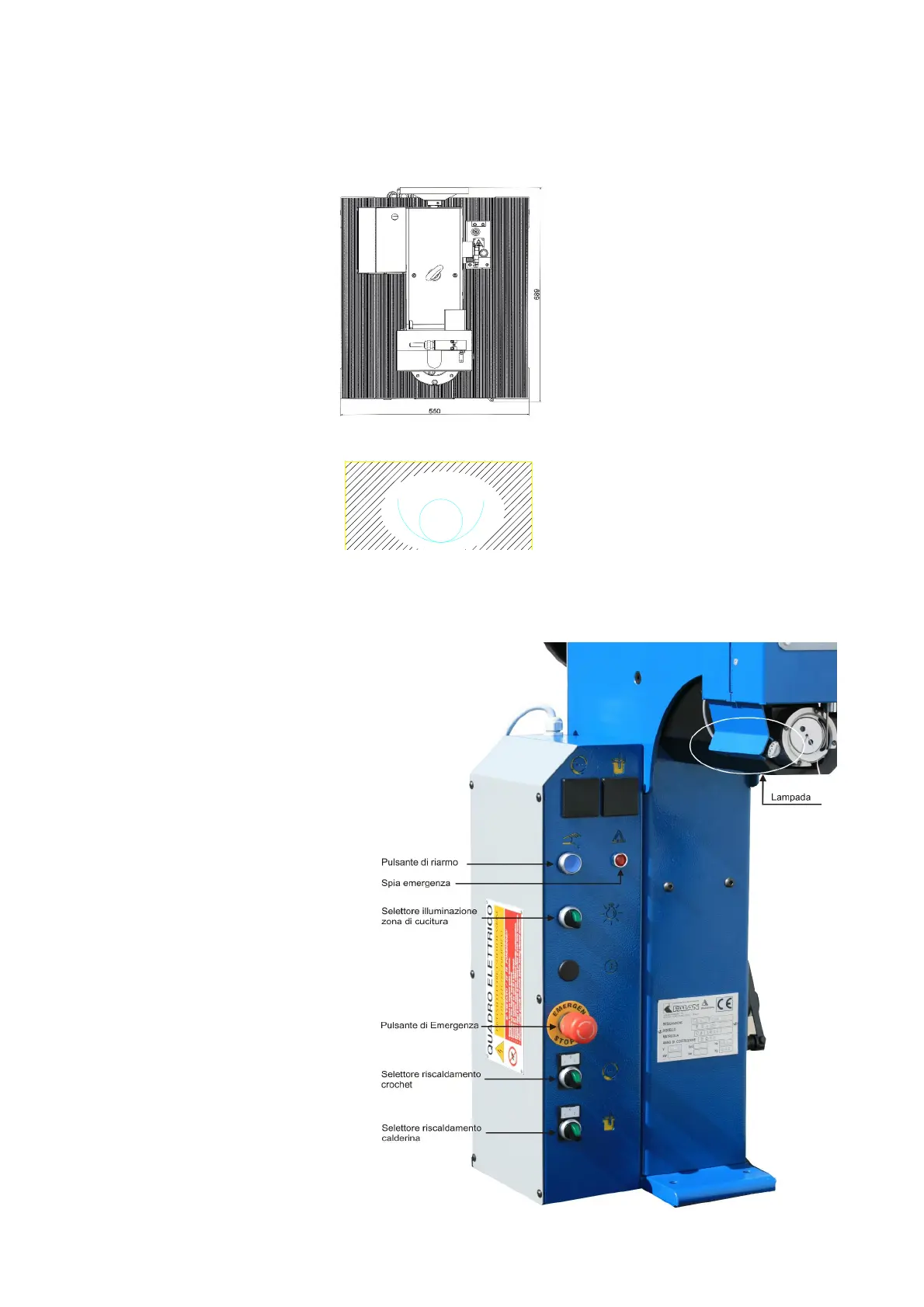

8.1. Electrical control panel
The electrical control panel door is placed
on the left side of the column.
8 SETTING UP THE MACHINE READY FOR WORK.
The machine is designed with the operating position in front of the machine.
Drawing 20
