DS6M2A.1DS6M2B.1DS6M2C.1
6’ Mini Single-leg mounted to Dorsal D-ring
6’ Mini Single-leg mounted to Anchorage
6’ Mini Twin-leg mounted to Dorsal D-ring
Shaded area indicates Range of Allowable Connecon from:
Directly Overhead to as low as 5’ Below Dorsal D-ring for 310 lb User
Shaded area indicates Range of Allowable Aachment from:
Directly Overhead to as low as 5’ Below Dorsal D-ring for 310 lb User
Shaded area indicates Range of Allowable Connecon from:
Directly Overhead to as low as 5’ Below Dorsal D-ring for 310 lb User
TS6M2A.1TS6M2B.1TS6M2C.1

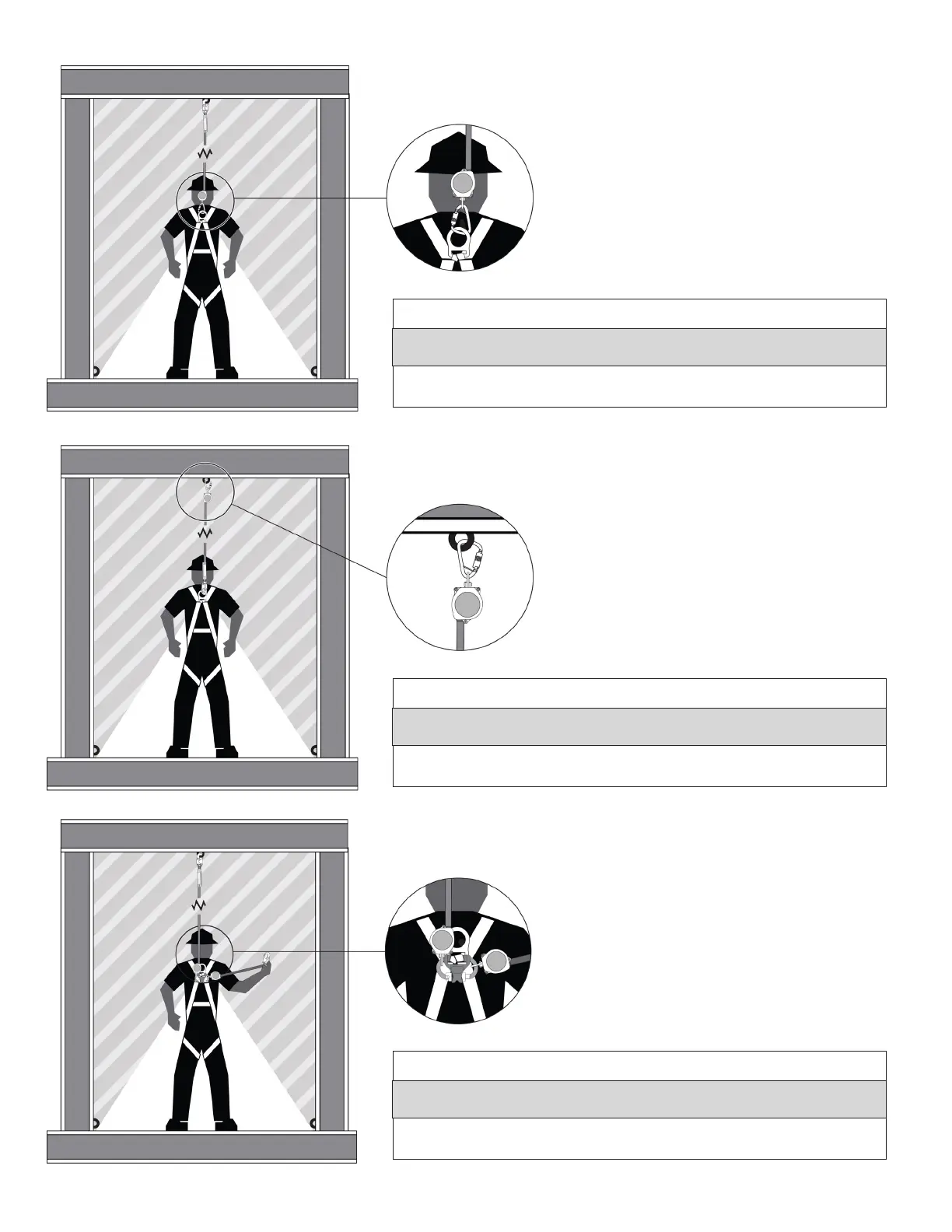

Figure 2A: 6’ Mini Orientaon and Acceptable Anchorage Range
Figure 2B: 6’ Mini Orientaon and Acceptable Anchorage Range
Figure 2C: 6’ Mini Orientaon and Acceptable Anchorage Range
APPENDIX A
010819
