1. Unscrew the lid and remove it.

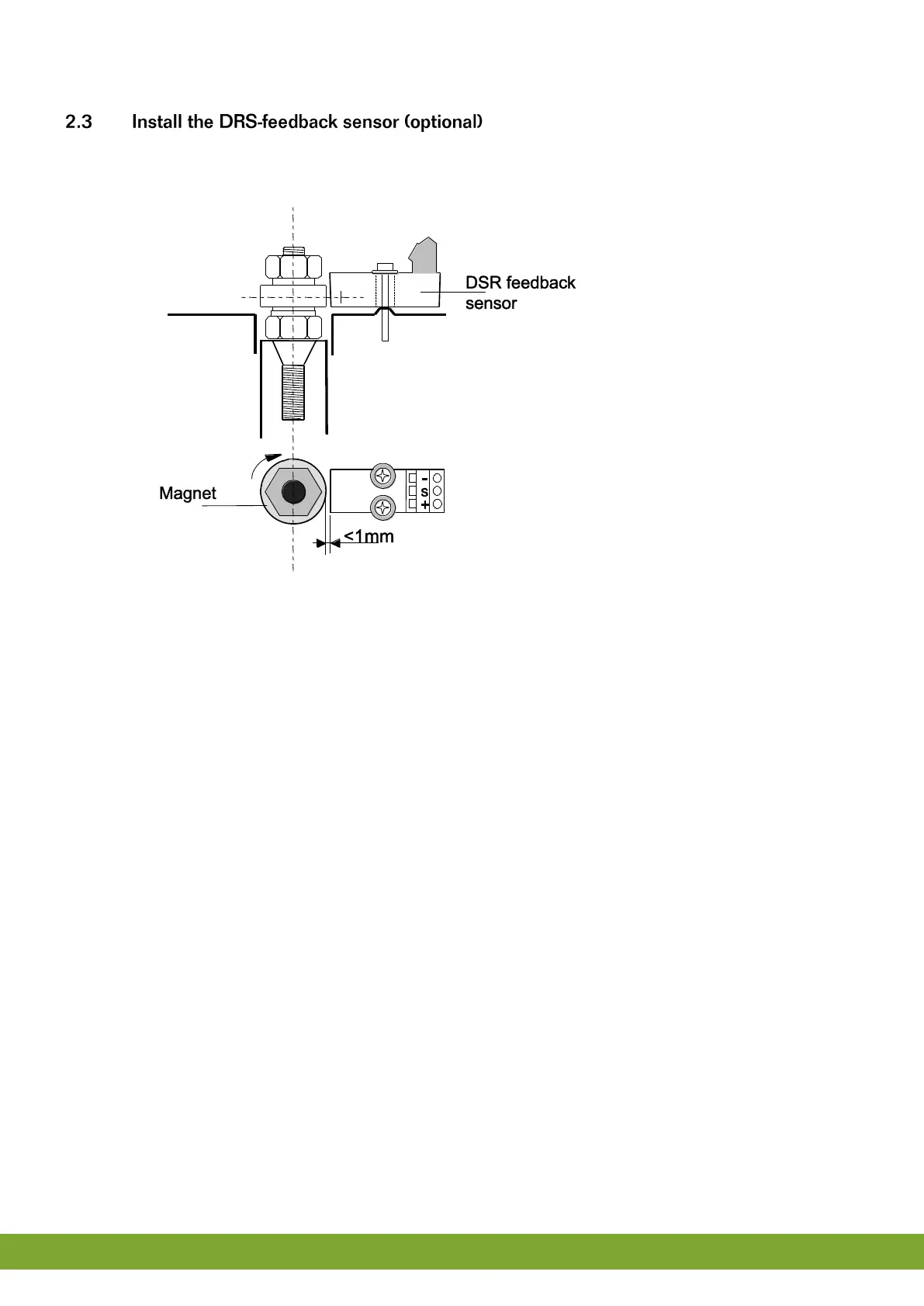

2. Place the DRS-feedback sensor and the magnet. Ensure the bottom of the DSR-feedback sensor is on a
level with the bottom of the magnet and that it revolves exactly around the center line of the magnet.
3. Connect the DSR-feedback sensor according to the instructions and diagram (see page 7 and page 8).
4. Replace the lid and crew the lid on the Fan.
