DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
.

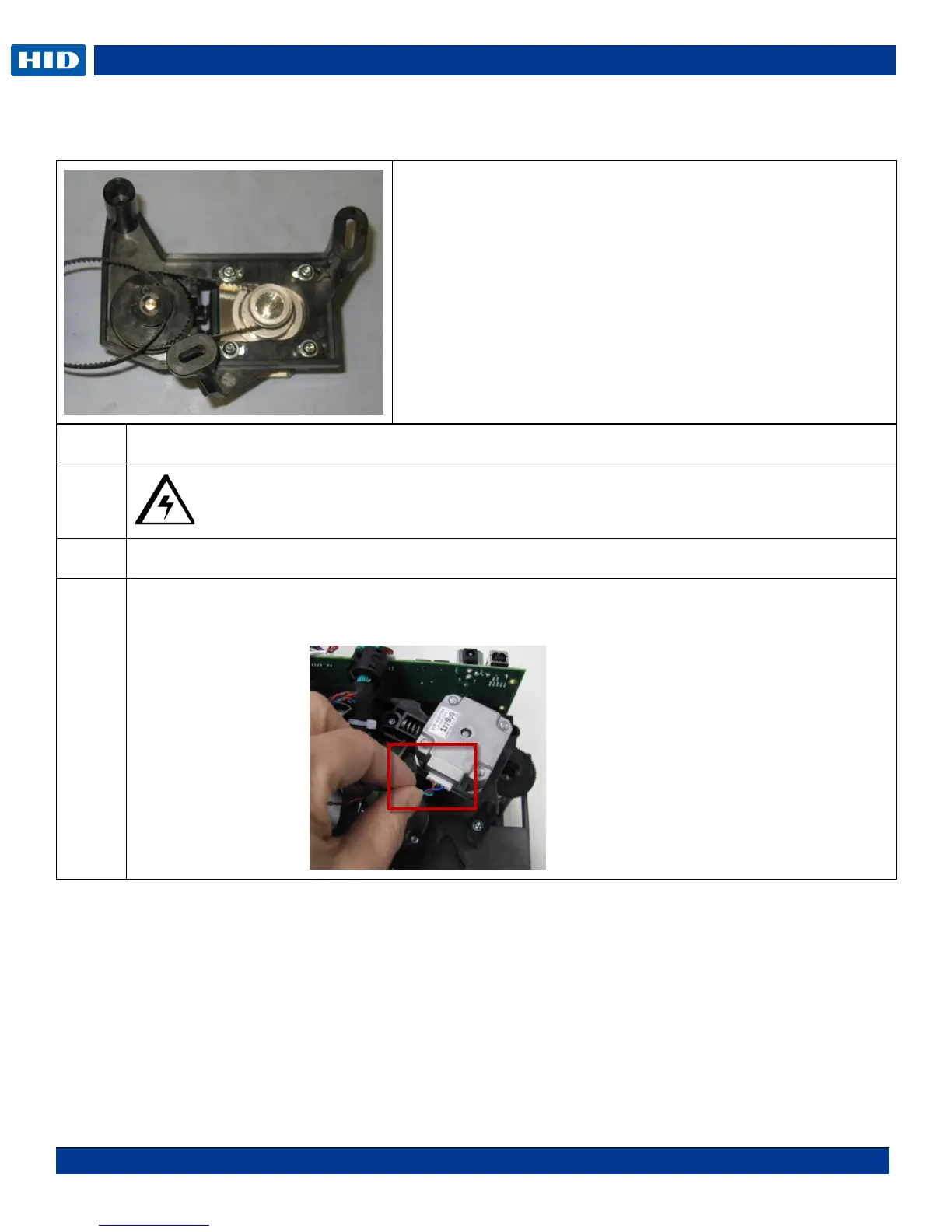

Remove/Replace the Stepper Motor D930027, Stepper Belt F000424, Pulley D900430
Caution: Turn OFF the Printer and unplug the power cord from the Printer.
Lay printer on its front.
Remove the cable harness (D930600) from the Stepper Motor.
Tools needed: T10 Torx screwdriver
E CLIP tool
Estimated Repair Time: 30 min
Preparation: Remove the Covers
Important: This procedure can only be performed by
authorized service personnel.
Part Number: Complete Stepper Drive assembly
D930028
To Next Page
