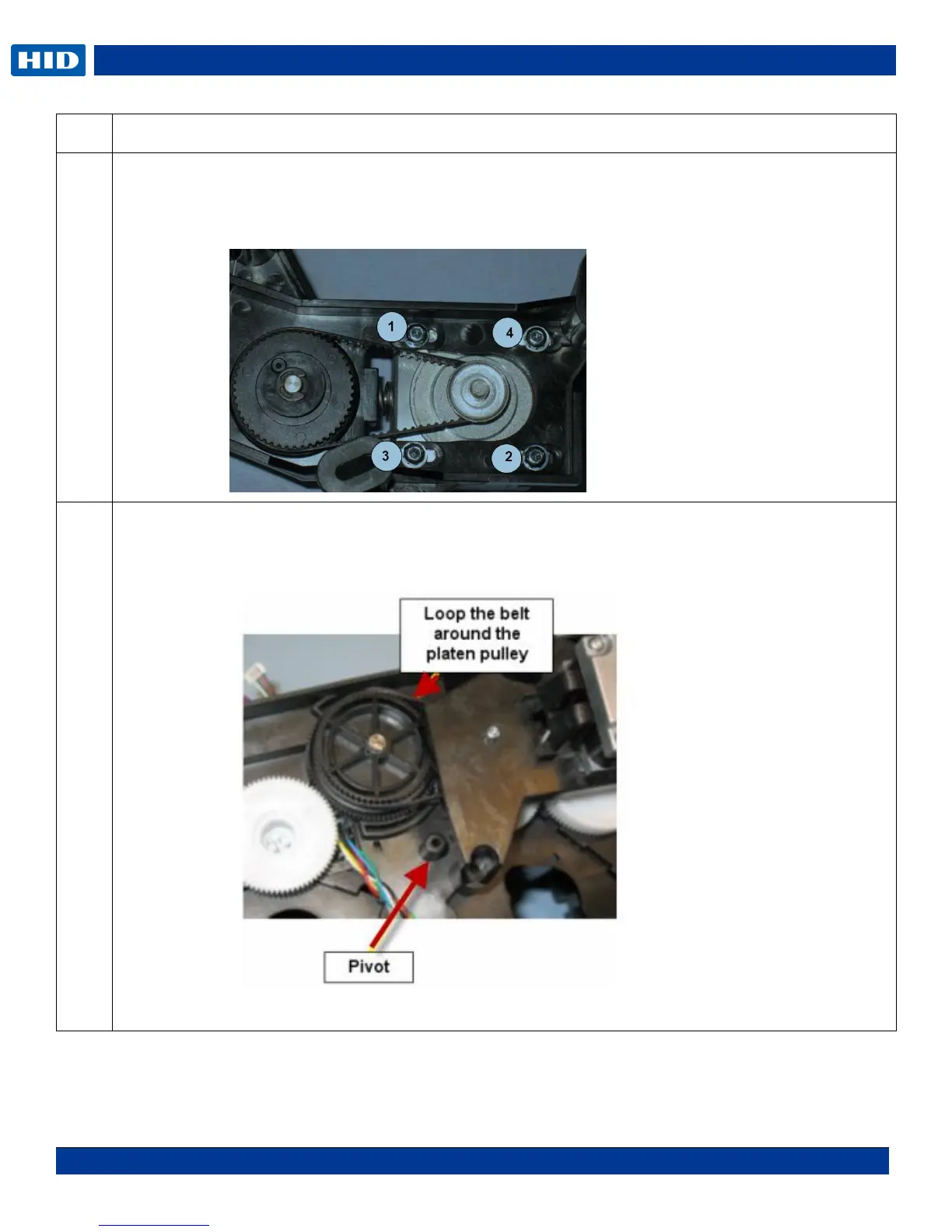

DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0

November 2013 39

Step

Procedure

This Stepper Motor Mount provides a self tensioning feature.

Keep the four (4) screws loose while holding the Mount Frame.

Allow the spring to self-tension, then tighten the four (4) screws.

Install belt on stepper motor assembly and then loop the belt w/stepper drive assembly around the

platen roller shaft gear.

Place the Stepper Mount over the pivot peg.
