DTC1000Me-1250e-4250e-4500e Card Printer Service Manual PLT-01543 rev 1.0
November 2013 65
.

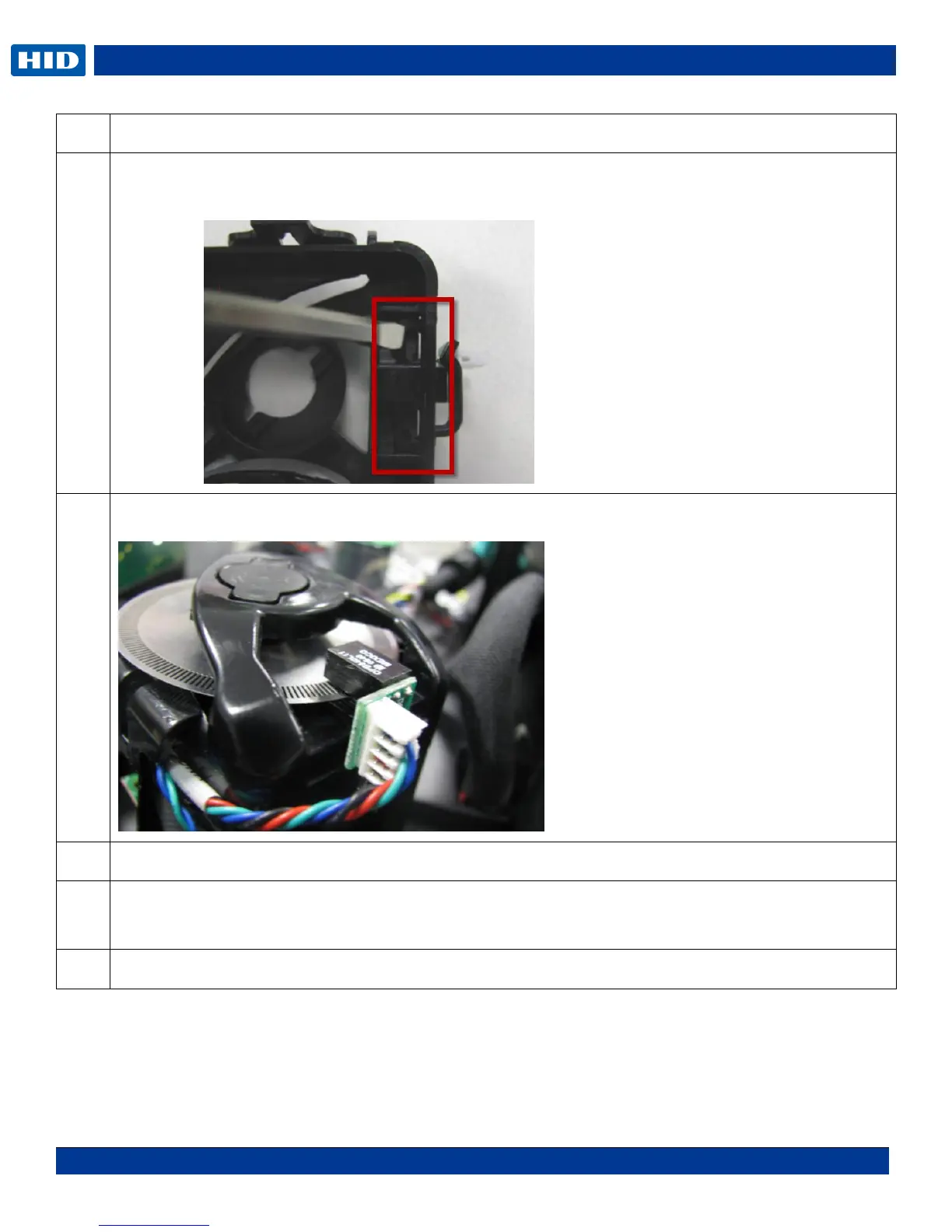

Step
Procedure
5
Remove the sensor.
Use a thin flat blade screwdriver to unlatch the tabs holding the sensor to the frame.
6
Press the new sensor into the assembly; make sure the encoder wheel is in between the sensor.
7
Replace with new Sensor (A930514) and/ or Cable (D930605)
8
Line up the sensor with the slot and snap back in.
Reconnect cable to J18
9
Procedure is complete.
