FarmTek Chick-Inn - Main Roof Frame Assembly; Assembling the Main Roof Frame

7
CHICK-INN
Revision date: 12.19.07
Chick-Inn
Pipe Identication
Location Pipe Length
Rafter 166P096 96"
Purlin 166P034 34"
Rafter
Purlin
NOTE: Frame length shown may di󰀨er from actual frame.

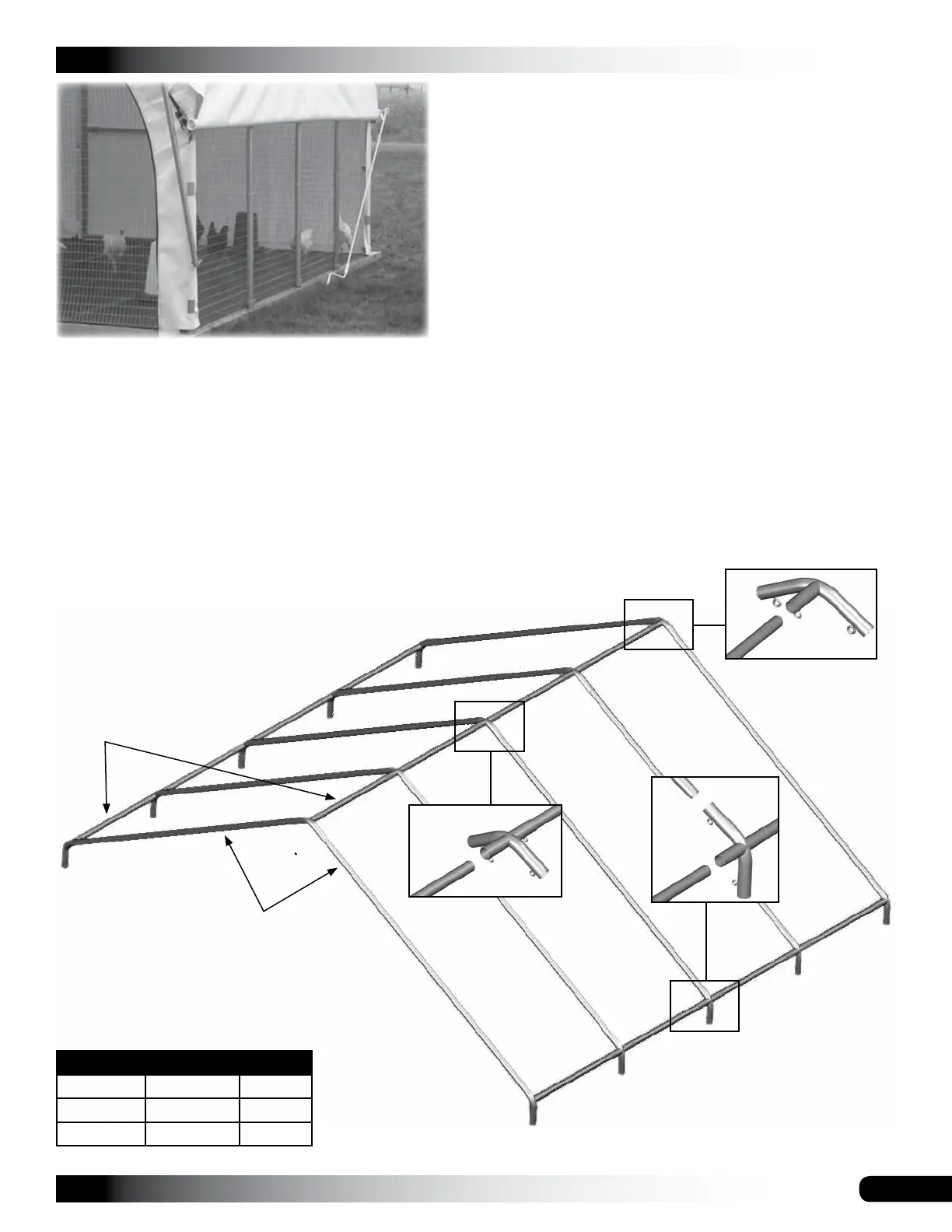

ASSEMBLE THE MAIN ROOF FRAME
This section is an overview of the process for assembling
the roof frame. See illustration below to identify main parts
of the assembly.
1. Locate the required couplers and pipes and assemble
the roof frame as shown below.
2. Secure each pipe in the coupler using the locking
eyebolt. If the couplers are not equipped with locking
eyebolts, secure each pipe in the coupler using a Tek
screw.
ATTENTION: If used, position Tek screws so they will
not touch the main covers or side panels when these
are installed.
