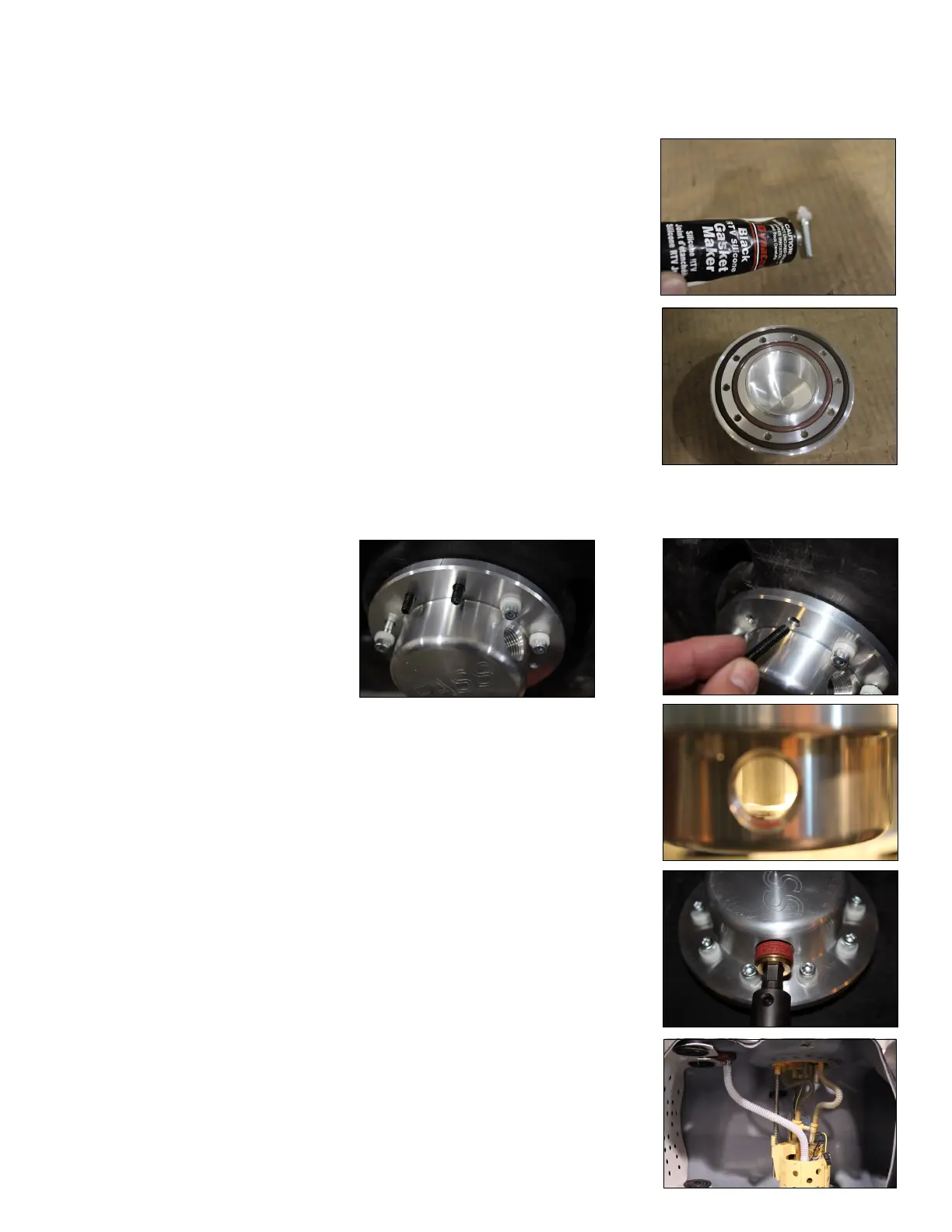

G. Place nylon washers onto the 1/4 - 20 x 1 1/2 SHCS’s. Recommendation:
apply a small amount of gasket sealant onto the threads to help prevent
any leaks.
J. Double check positioning of the DT-1002 (draw tube) to the floor surface.
Make any necessary adjustments if needed.
H. Install the inner and outer O-rings to the sump.
K. Plug the suction hole using the 1/2” plug.
L. Make sure there are no restrictions in the FL-1007
I. Using the 1/4 - 20 x 1 1/2 SHCS’s, install sump over alignment studs, then remove the alignment studs
and replace with the SHCS’s. Note: Direct the fuel suction hole of the sump in the proper direction.
Torque to 30 in lbs. Applying silicone to the SHCS’s is also recommended.
Step 5: re-installing Fuel Sending Unit & Connecting
sump
