Step 3: Mount Fuel System

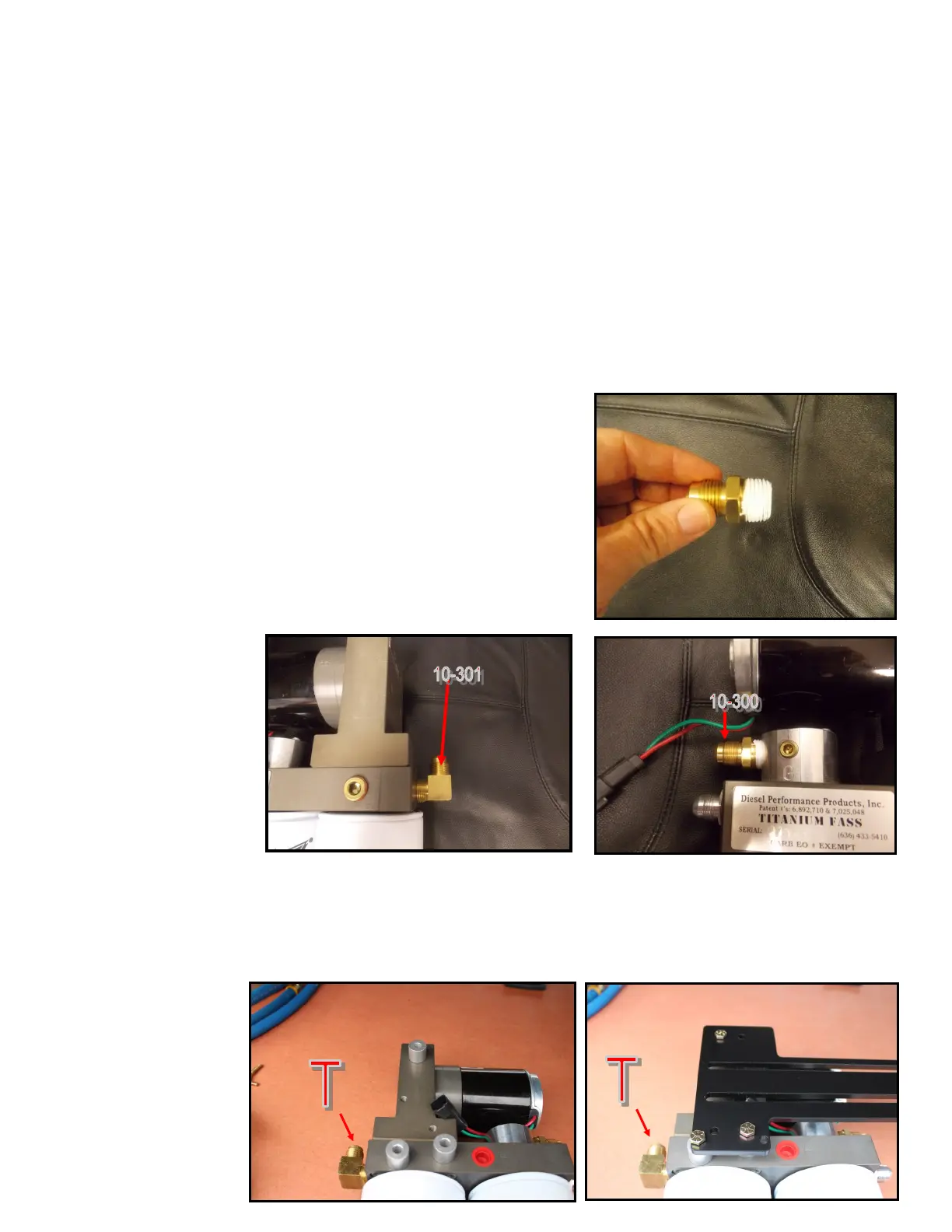

A. Install 10-300 into the "E" port and 10-301 into the "T" port of FASS, torque to 20 ft./lbs.
***FITTINGS COME EQUIPPED WITH THREAD SEALANT, DO NOT USE
THREAD TAPE***
B. For fitting purposes. Secure PBR-2001 to pump assembly lightly with (3) 1/4”-20x1 3/4 bolts and (3)
WA-1001D. This will assembly will be used in future steps for correct fitting of brackets. (Note:
Bracket maybe flipped to accommodate your application.)
NOTE: Before installing fittings make sure to inspect for burs or flare imperfections.
When cutting fuel line make sure to blow out line to keep debris from moving forward.
Before starting installation please review contents page to insure all necessary parts are included. Please
call Diesel Performance Products for any missing or incorrect items. 636-433-5410
