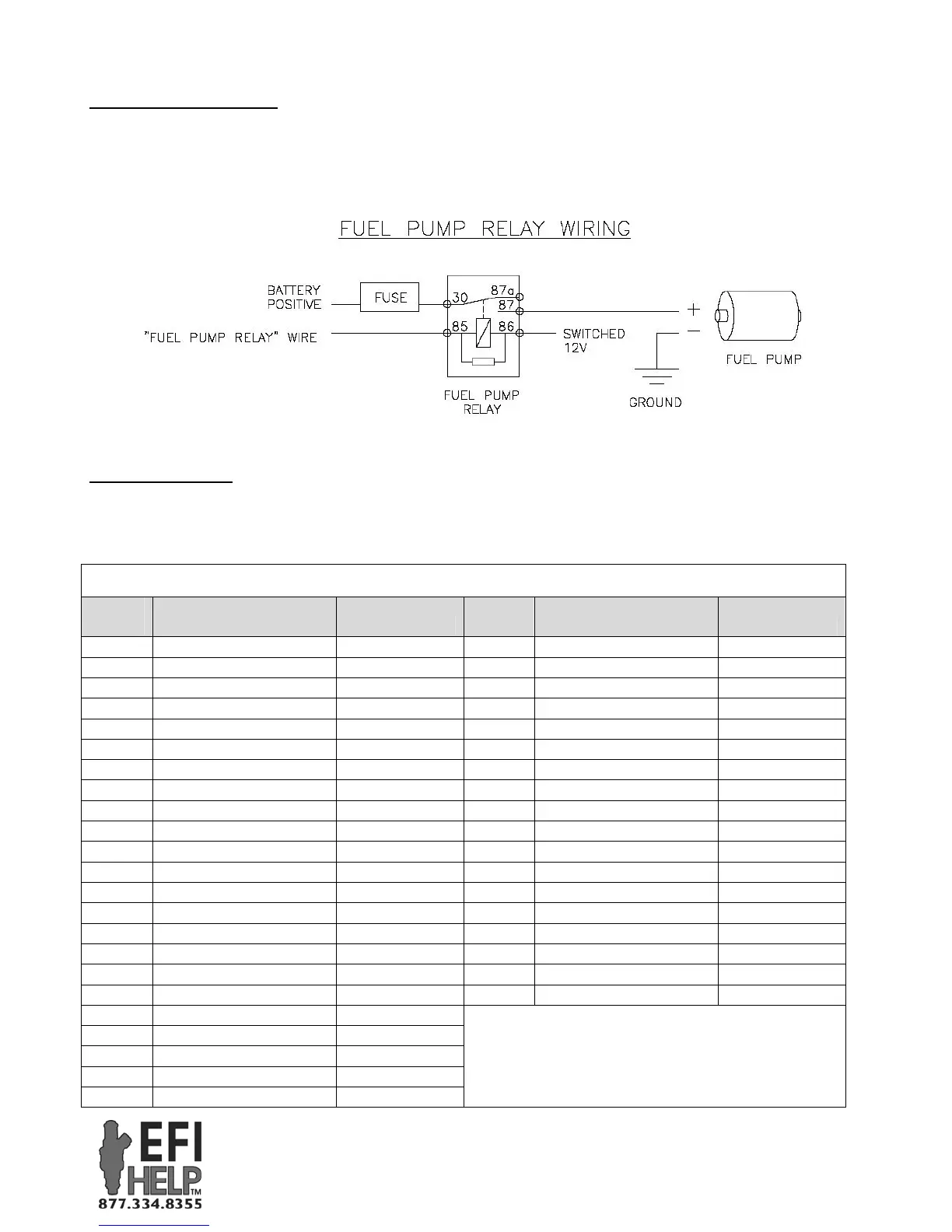

Fuel Pump Relay Control
Pin 18-B3 is a fuel pump relay output. It is available as a loose Green wire. It can be wired to the negative side
of a fuel pump relay to control an electric fuel pump. (Do NOT connect it directly to a fuel pump.) The pump
will be primed at key-on. And then will run whenever the XIM™ sees an RPM signal.
Unused Connectors
When using the XIM™ in one of the Standalone modes, the “CAN LINK” and “TO XFI CAM/HALL
EFFECT” connections are not used.
XIM™ Pinout Chart
XIM™
Pin Function Wire Color
XIM™
Pin Function Wire Color
30-A1
Inductive Crank Input Red
18-A1
+12V Switched Input Pink
30-A2
Discrete Crank Input Yellow
18-A2
Retard #2 Input Purple
30-A3
Crank Output / Tach Brown/White
18-A3
Digital GND Black/White
30-B1
Digital GND Black (/White)
18-B1
Battery Input Red
30-B2
Digital GND Black/White
18-B2
Retard #1 Input Gray
30-B3
Cam Output Yellow/Black
18-B3
Fuel Pump Output Lt. Green
30-C1
Inductive Cam Input Red
18-C1
Coil Output A Orange
30-C2
Discrete Cam Input Brown
18-C2
Auxiliary Output*
30-C3
Flash Enable Input Blue
18-C3
Power GND Black
30-D1
Digital GND Black (/White)
18-D1
Coil Output D Purple
30-D2
Digital GND Black/White
18-D2
Coil Output C Gray
30-D3
Load Input White/Violet
18-D3
Coil Output B Blue
30-E1
Analog 2 Input*
18-E1
Coil Output E Black
30-E2
5V Reference Red/White
18-E2
Power GND Black
30-E3
Analog GND Black/Pink
18-E3
Power GND Black
30-F1
RS-232 RxD Black
18-F1
Coil Output F Brown
30-F2
RS-232 TxD Red
18-F2
Coil Output G Yellow
30-F3
Dig GND (RS-232) White
18-F3
Coil Output H Green
30-G1
CAN_H Yellow
30-G2
CAN_L Green
30-G3
Digital GND Black/White
30-H1
EST Output A Purple
30-H2
EST Output B Purple/White
* Reserved for future use
