Fatal1ty Z270 Professional Gaming i7 Series
2.9 M.2_SSD (NGFF) Module Installation Guide
e M.2, also known as the Next Generation Form Factor (NGFF), is a small size and
versatile card edge connector that aims to replace mPCIe and mSATA. e Ultra M.2
Sockets (M2_1 and M2_2) support SATA3 6.0 Gb/s module and M.2 PCI Express module
up to Gen3 x4 (32 Gb/s).
* M2_1, SATA3_0 and SATA3_1 share lanes. If either one of them is in use, the others will
be disabled.
* M2_2, SATA3_4 and SATA3_5 share lanes. If either one of them is in use, the others will
be disabled.
* If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.
Installing the M.2_SSD (NGFF) Module
Step 1
Prepare a M.2_SSD (NGFF) module
and the screw.
3
2
4
1

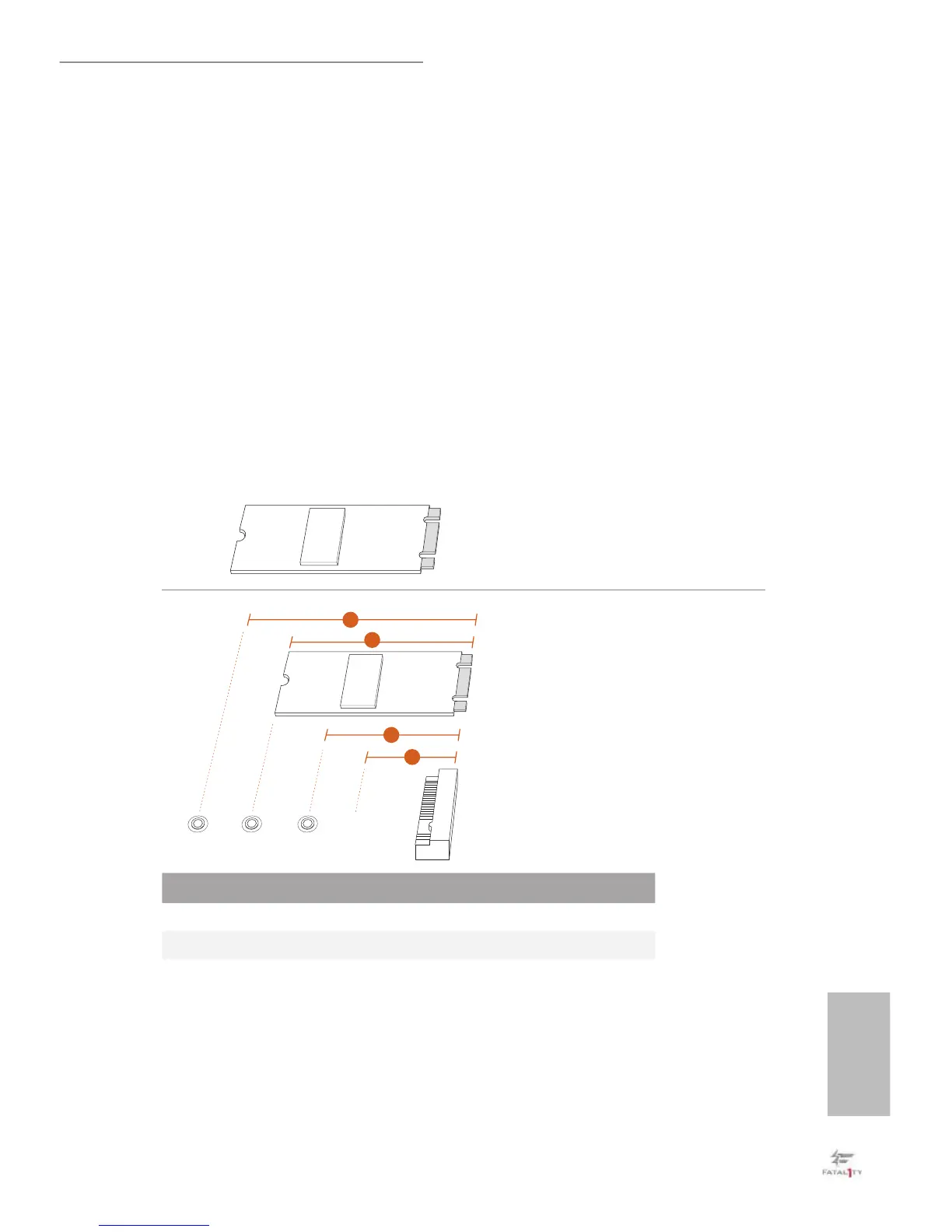

Step 2
Depending on the PCB type and
length of your M.2_SSD (NGFF)
module, nd the corresponding nut
location to be used.
No. 1 2 3 4
Nut Location A B C D
PCB Length 3cm 4.2cm 6cm 8cm
Module Type Type2230 Type 2242 Type2260 Type 2280
