Fatal1ty Z270 Professional Gaming i7 Series

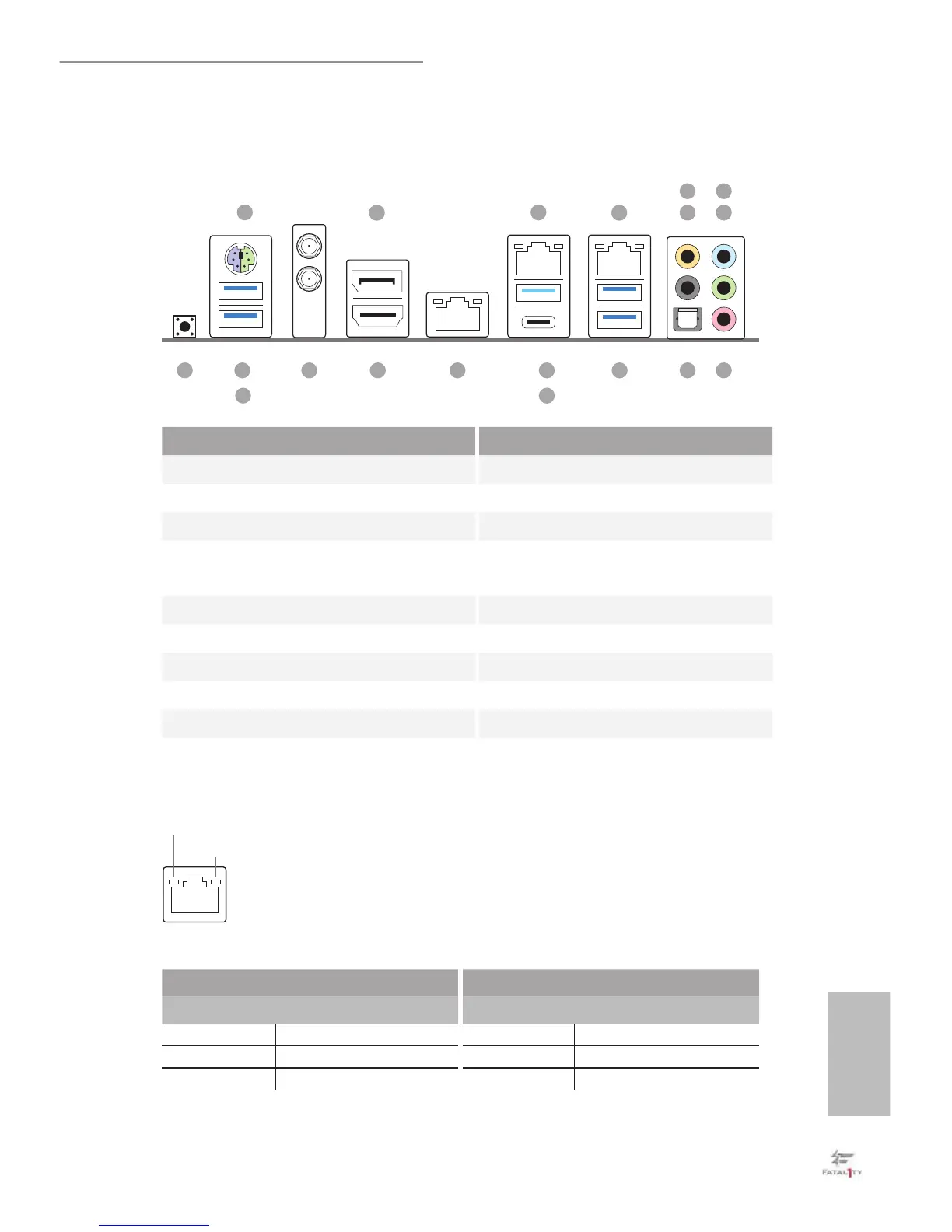

I/O Panel
1
91012
13
17 11141519
2
6
5
8
7
3
16
18
4
No. Description No. Description
1 PS/2 Mouse/Keyboard Port 11 USB 3.0 Ports (USB_4_5) ****
2 DisplayPort 1.2 12 USB 3.1 Type-A Port (USB31_TA_1)
3 LAN RJ-45 Port (Intel® I211AT)* 13 USB 3.1 Type-C Port (USB31_TC_1)
4
GLAN RJ-45 Port (AQUANTIA®
AQC108)**
14 LAN RJ-45 Port (Intel® I219V)*
5 Central / Bass (Orange) 15 HDMI Port
6 Rear Speaker (Black) 16 Antenna Ports
7 Line In (Light Blue) 17 Fatal1ty Mouse Port (USB_1)
8 Front Speaker (Lime)*** 18 USB 3.0 Ports (USB_2)
9 Microphone (Pink) 19 Clear CMOS Switch
10 Optical SPDIF Out Port
* ere are two LEDs on each LAN port. Please refer to the table below for the LAN port LED indications.
Activity / Link LED Speed LED
Status Description Status Description
O No Link Orange 10Mbps connection
Blinking Data Activity Orange 100Mbps connection
On Link Green 1Gbps connection
ACT/LINK LED
SPEED LED
LAN Port
