9

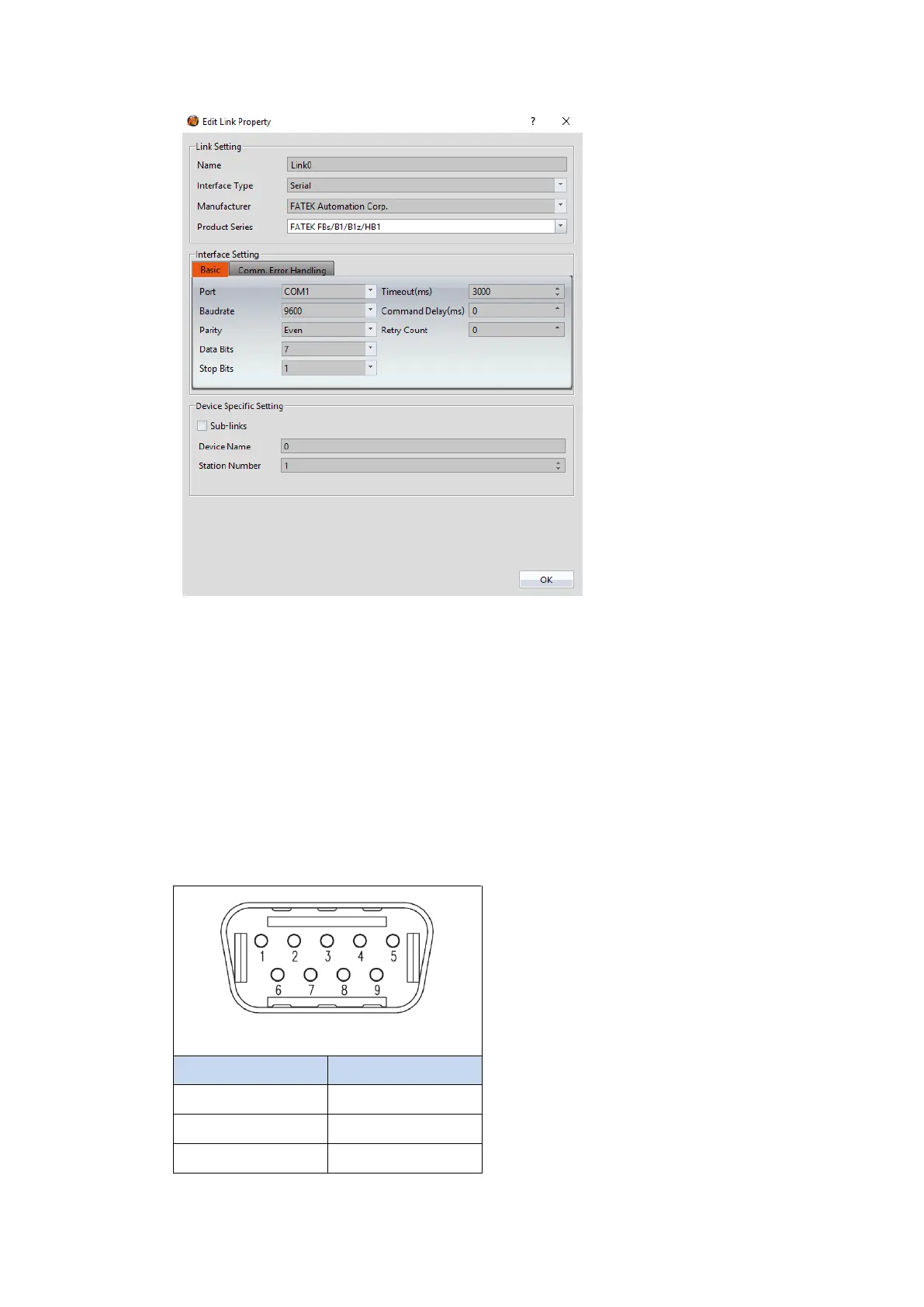

Within the Link configuration window in FvDesigner:
Under Interface Type select Serial
Under Manufacturer select FATEK Automation Corp
Under Product Series select FATEK FBs/B1/B1z/HB1
Under Port select COM1
Verify the other parameters are consistent with the settings on the PLC.
2.1.1.4 Wiring Diagrams
HMI COM1 Pinout
*Looking into COM1 Port
PIN#
COM1 (RS232)
1
2
RX
3
TX
