D
B
A
C

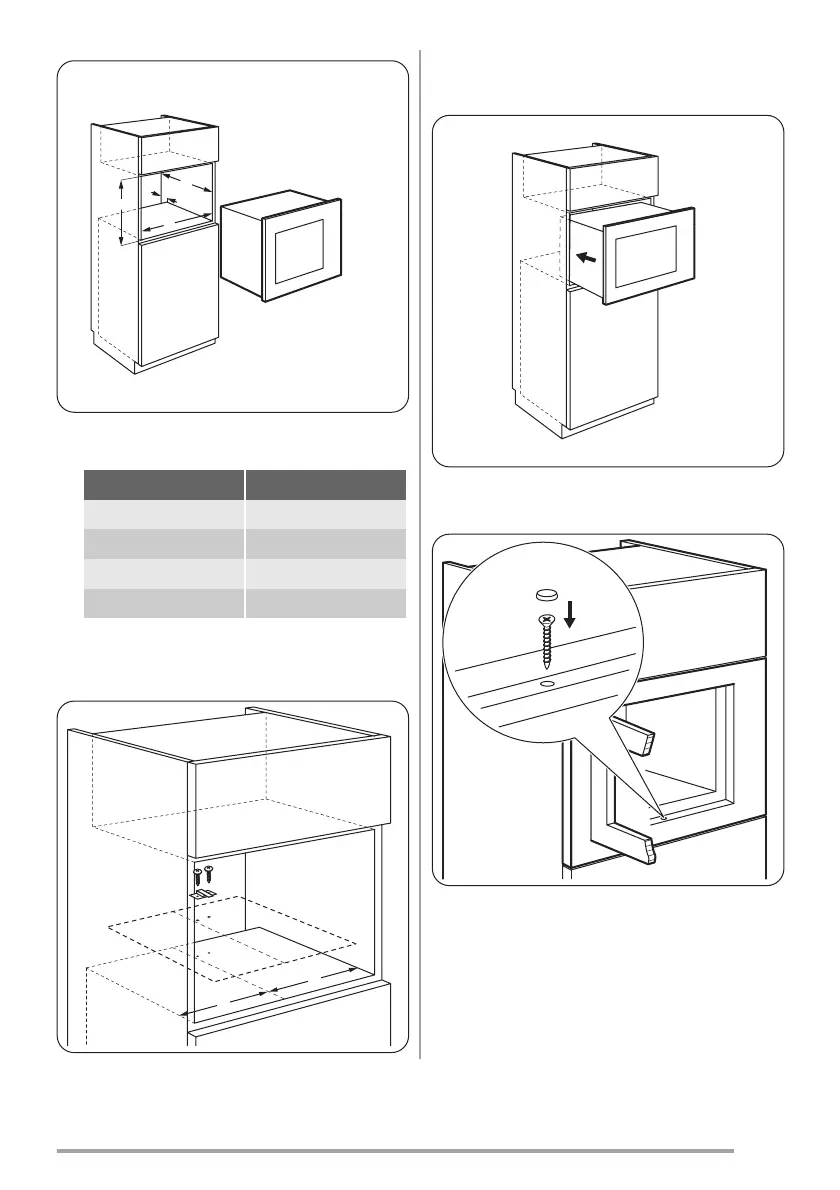

Installation distances
Dimension mm
A 450 + 2
B 560 + 8
C 500
D 45
2. Put the template on the bottom of cabinet and
mark the spots for screws. Remove the template
and fix the bracket with the screws.
=
=
3. Install the appliance. Make sure the bracket locks
the back of the appliance.
4. Open the door and fix the appliance to the cabinet
with a screw.
