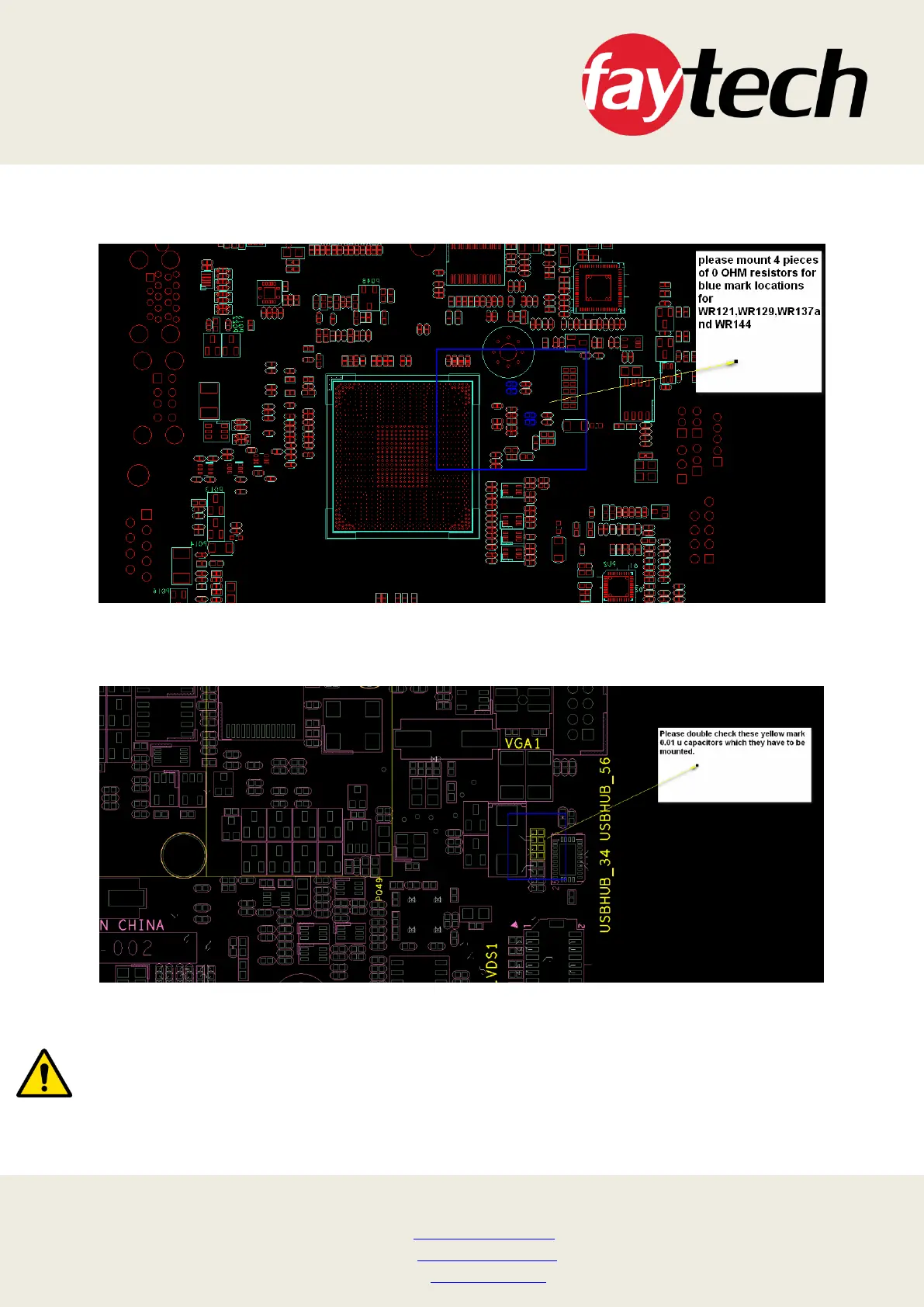

STEP 4: Use the 4 resistors from Step 3 and solder them on the 4 location indicated in the following picture:
Corporate Headquarters
faytech Tech Co., Ltd. support@faytech.com China: +86 755 89580612
Bldg. C, Hongmen Tech. Zone, Jihua Rd., contact@faytech.com Germany: +49 551 82098660
Shenzhen, China, 518129 www.faytech.com USA: +1 720 251 4158
STEP 5: On the component side, please check if the following 4 capacitors are in place. If not, please add 4
pieces of 0.01uF capacitors.
faytech Tech. Co., Ltd. once again strongly urges you not to attempt any modifications by yourself as it
will lead to the termination of the warranty of the product and may damage the product itself.
