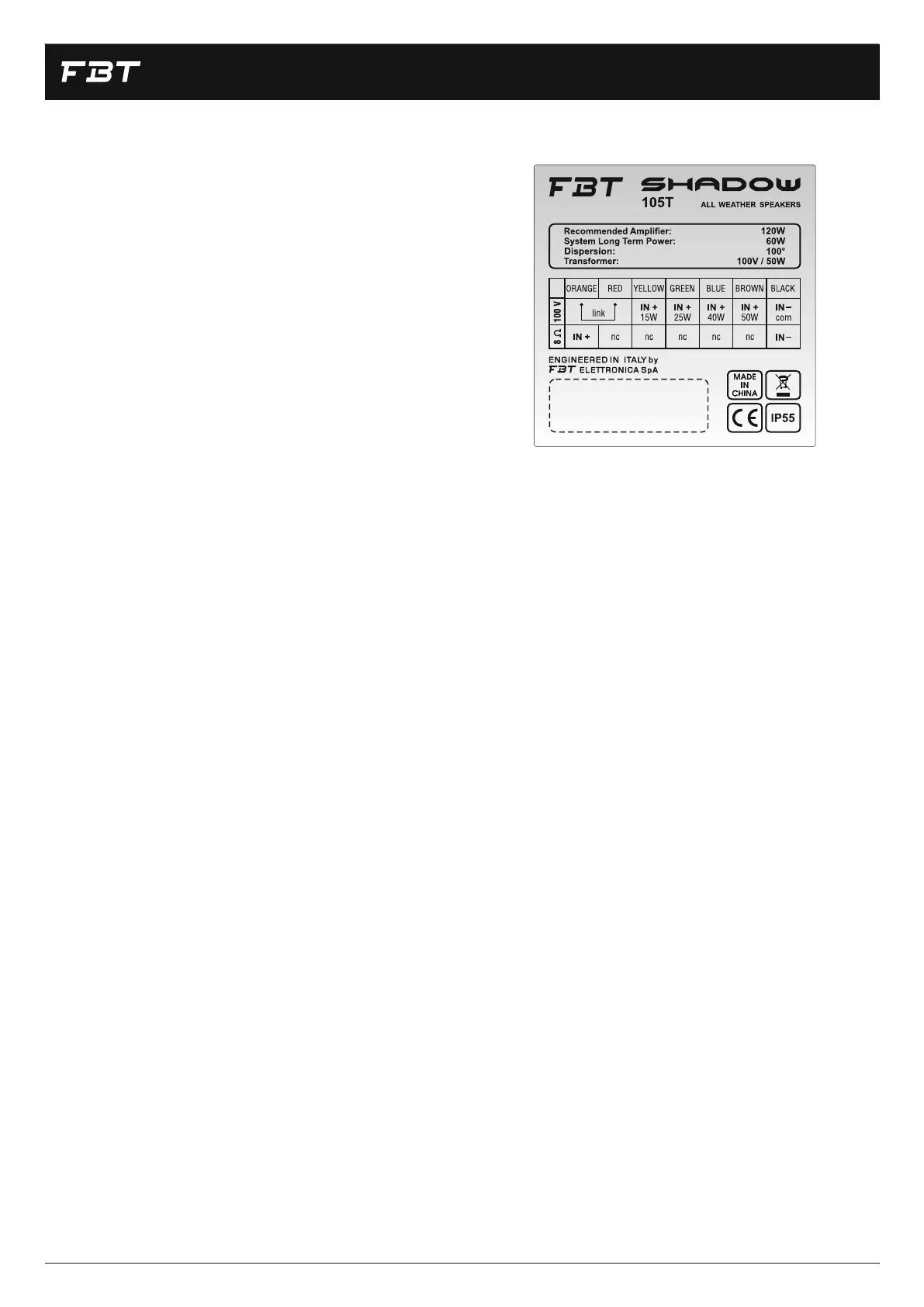

CONNECTIONS
14
• Connect the speaker's BLACK conductor (com) to the 100V line on
the amplifier terminal marked with "-" / "0" / "com".
CONSTANT VOLTAGE LINE
• Choose a conductor among the YELLOW / GREEN / BLUE /
BROWN ones according to the desired power, and connect it to the
100V line on the amplifier terminal marked with "100V" / "+".
• ORANGE AND RED CONDUCTORS ARE TO BE JOINED
TOGETHER.
• Connect the speaker's ORANGE conductor (8 Ohm) to the amplifier
terminal marked with "+".
• NOT ALLOWED ON 100V LINES.
CONSTANT IMPEDANCE CONNECTION
• Connect the speaker's BLACK conductor (com) to the amplifier
terminal marked with "-".
