FE PETRO STP - Page 16

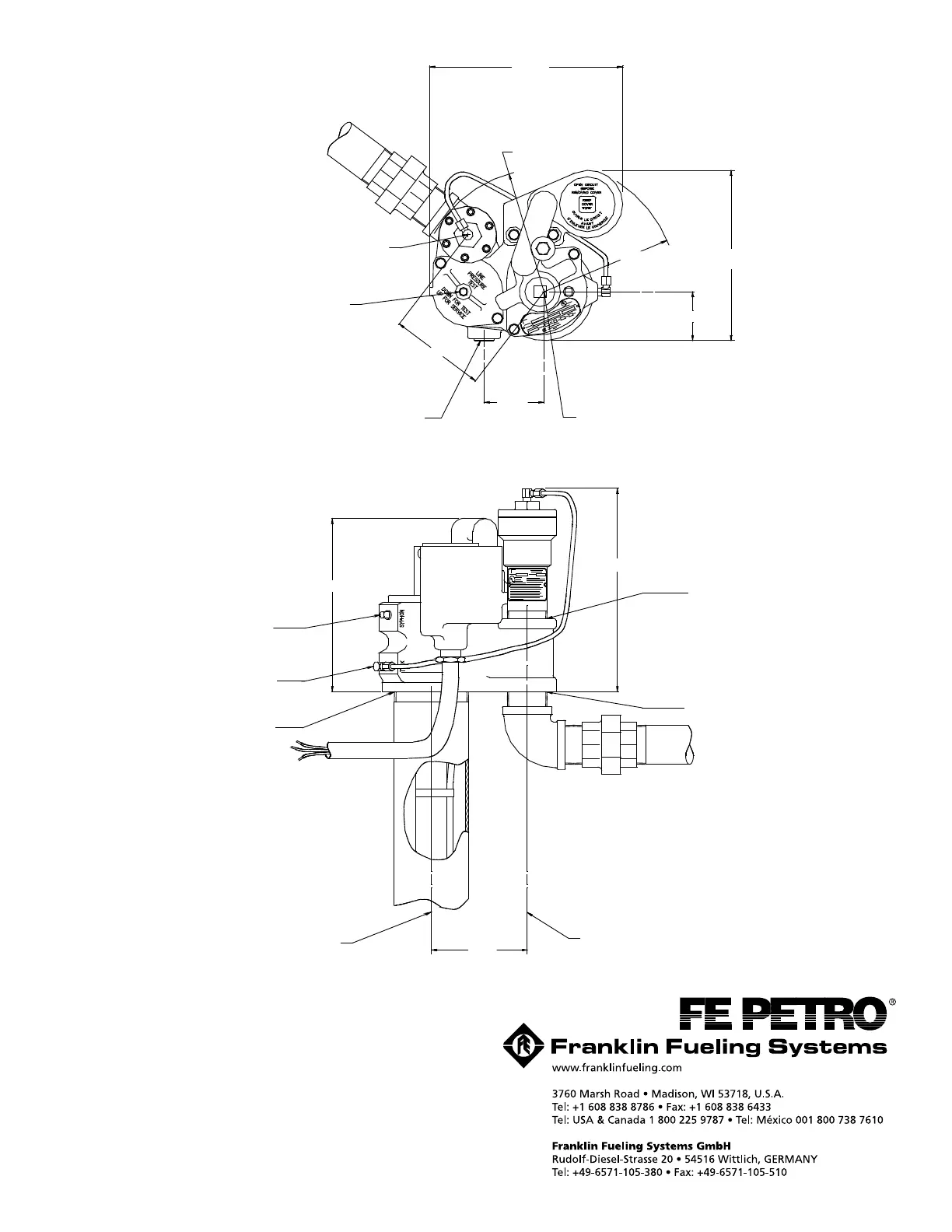

Figure 18
Discharge / Leak Detector
Centerline
Discharge / Leak Detector
Centerline
Line Test port
¼" NPT
Vapor Recovery
Discharge Port 1" NPT
Riser / Column Pipe Centerline
Riser / Column Pipe Centerline
11.70"
7.55" R
10.45"
8.12" R
3.00"
5.80"
3.63"
Leak Detector Port
2" NPT
Discharge Outlet
2" NPT
12.50"
Riser Pipe
4" NPT
Tank Port
¼" NPT
Syphon Port
¼" NPT
10.65"
5.80"
©2009 FFS 400604005 Rev. 15
