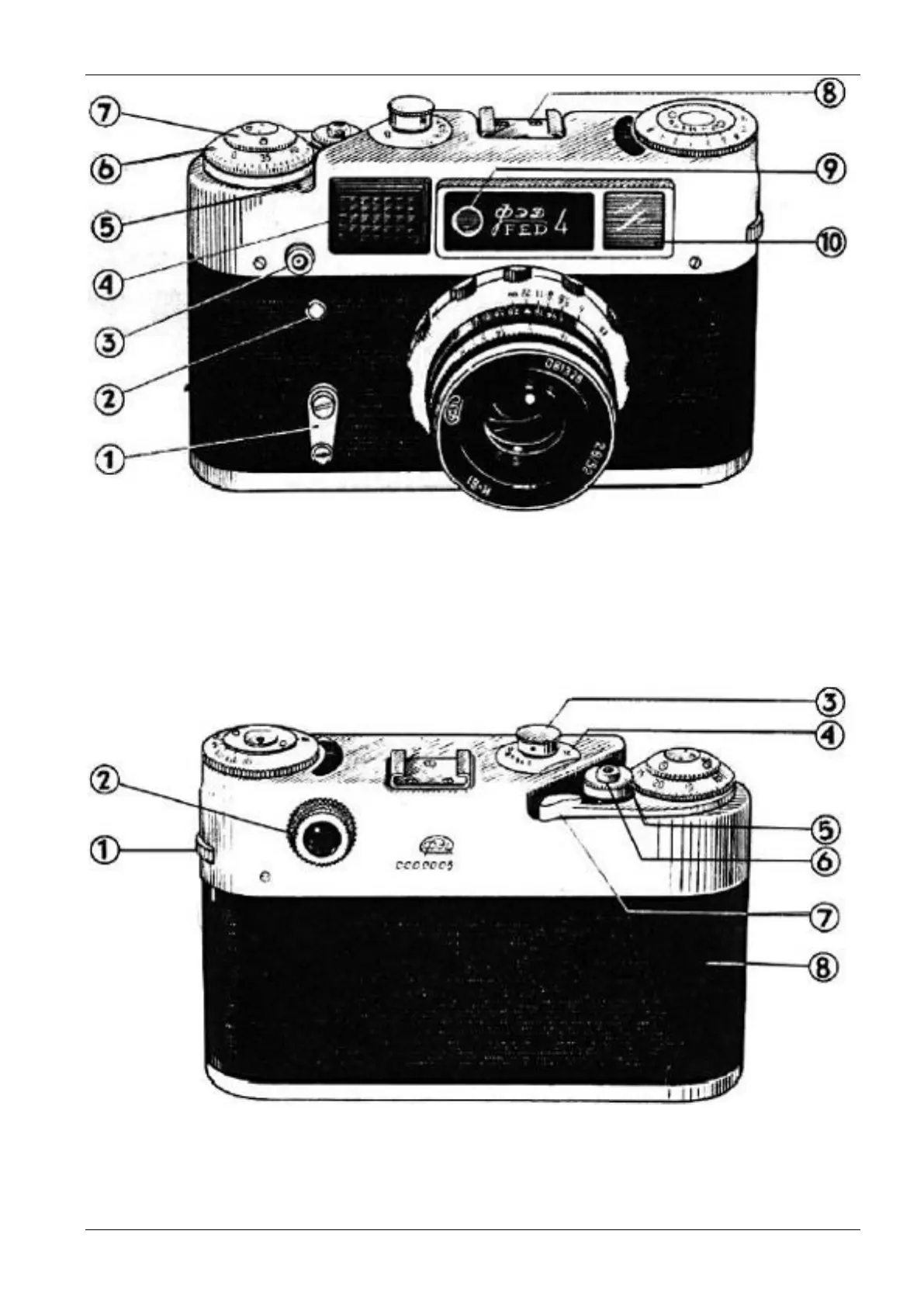

Front view:
1 — automatic releaser lever;
2 — automatic releaser button;
3 — synchronizer socket;
4 — exposure meter aperture;
5 — frame indicator;
06 — picture counter dial;
07 — film indicator;
08 — accessory shoe;
09 — range-finder aperture;
10 — view finder aperture.
Rear view:
1 — rewinding disk;
2 — dioptric view finder ring;
3 — exposure head;
4 — shutter speed dial;
5 — disconnector clutch;
6 — release button;
7 — winding lever;
8 — rear hood.
