Fit the take-up reel on the bush and then
place the magazine to the camera. At this point
the film should be slightly stretched and the
teeth of the sprocket should enter the
perforations of the film.
Close the camera.
The unexposed film is fed to the picture
aperture by winding the shutter twice pressing
the release button after each winding.
The winding lever should be turned as far as
it goes.
When properly loaded the camera is wound
easily without jerky motions and noticeable
efforts.
Then, by turning the dial scale set the “0”
point of the picture counter opposite to the
indicator.
Align the sensitivity scale dial with the film-
type indicator index in accordance with the data
of the film loaded in the camera.
The film indicator is a memory device
consisting of a movable sensitivity scale with
conventional designations of film types figured
on it.
— colour film for day light
— colour film for artificial light
— black-and-white film
and a stationary disk with an index.

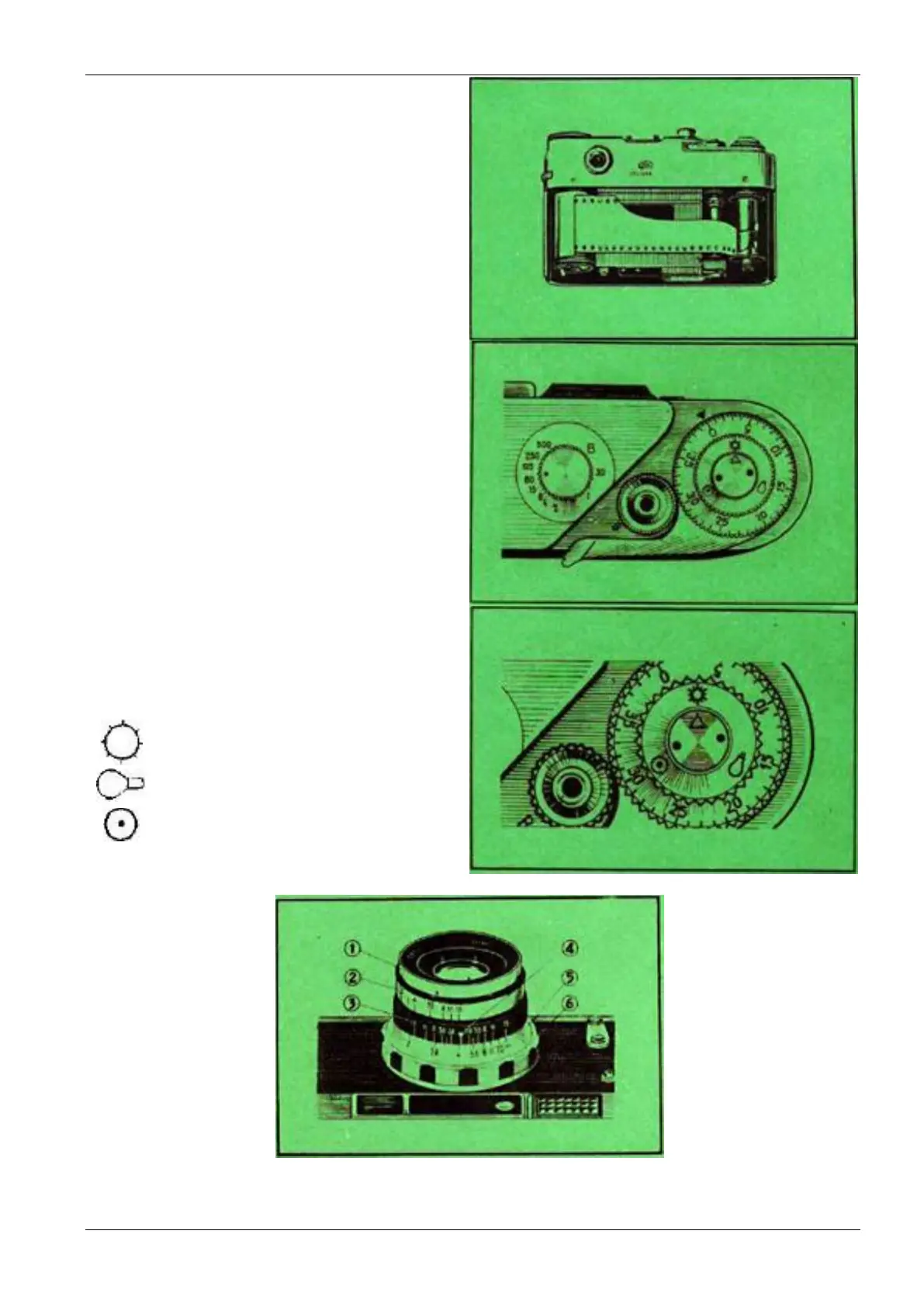

1 — front ring;
2 — diaphragm scale;
3 — depth-of-field scale;
4 — index;
5 — distance scale;
6 — driving ring.
