Feig Electronic TST FUF2-F User Manual

TST
Assembly instructions
FUF2 / FU3F-A/-C/-F
FEIG ELECTRONIC GmbH
Page 72 of 114
TST_FUxF-A-C-F_Montageanleitung_EN_15

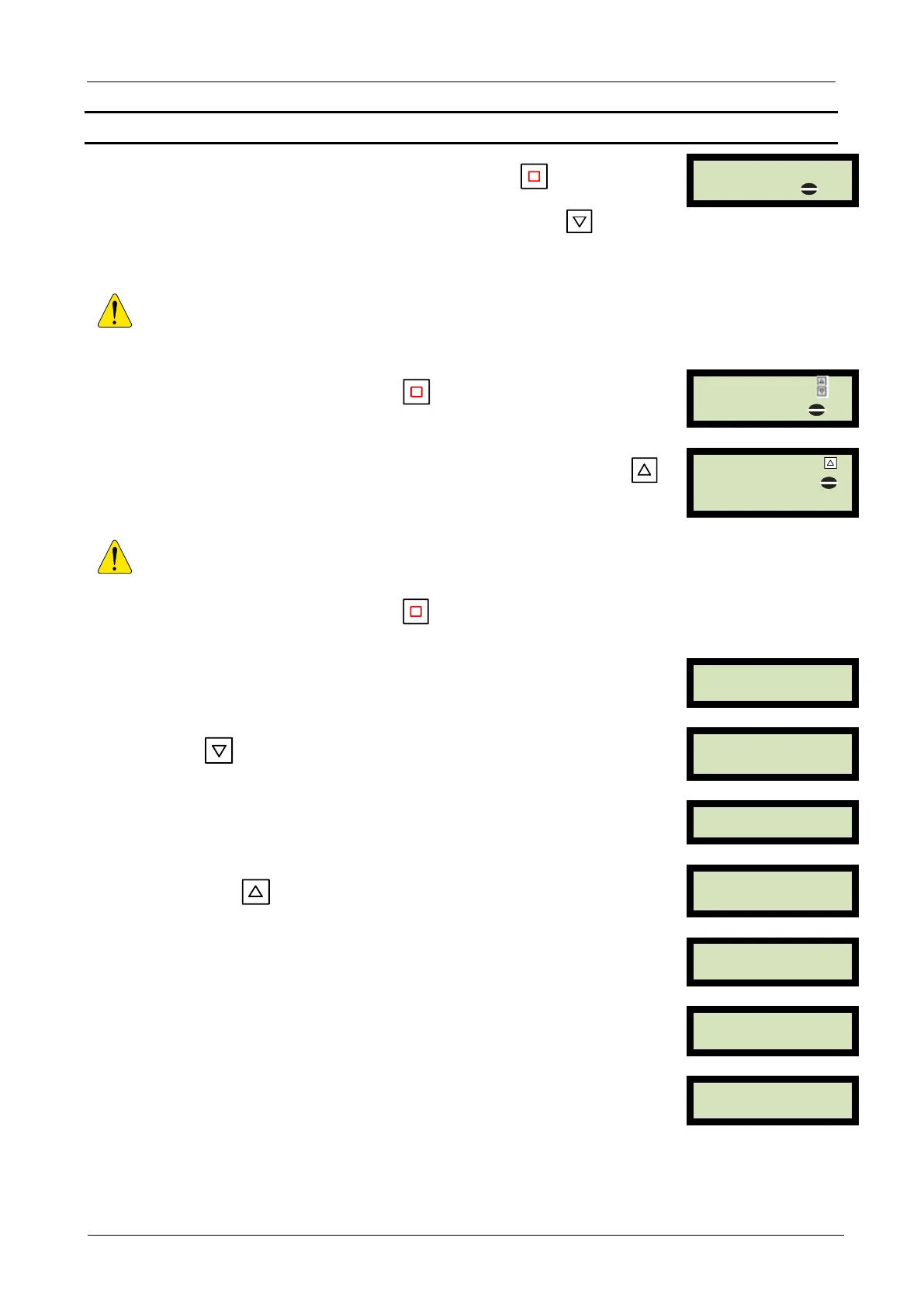

9.1 …with absolute encoder or incremental encoder
1.
Open CALIBRATE mode by briefly pressing the STOP key.
!Eichen!
0 Start mit
2.
Approach door CLOSED position with the CLOSE key .
If the door moves in the incorrect direction: incorrect motor
rotary field, turn off controller and reverse the 2 motor
connections. If the door does not move, the motor lacks power.
With the aid of the boost (performance increase at low speeds)
the motor can be supplied with an increase in power. (see
Chapter 9.5), if necessary, check that the brake was released.
3.
Save by pressing the STOP key for approx. 3 seconds.
Zur Zupos. à
0 Übern. mit
4.
Move the door to the OPEN position by pressing of foil keypad
OPEN and by
Zur Aufpos. à
xxx Übern. mit
If the door does not move, the motor lacks power. With the aid of
the boost (performance increase at low speeds) the motor can be
supplied with an increase in power. (see Chapter 9.5), if
necessary, check that the brake was released.
5.
Save by pressing the STOP key for approx. 3 seconds.
Auf pos. OK
6.
Press briefly, the door moves down and is now taught in its
position.
Tor schließt
I.555 Lern Fahrt
Zu pos. OK
7.
Now press , repeat the process until the correction travel has
been completed. (Message I.510 = OK)
Tor öffnet
I.515 Korr. Fahrt
I.510 Korrek. OK
Tor öffnet
Tor schließt
