7.3 Induction loop detector VEK MNST1/2/3/4
The induction loop detector VEK MNST1/2/3/4 is a system for the inductive detection of vehicles. It can
evaluate up to 4 inductive loops:
Table 3: Pin assignment VEK MNST1/2/3/4
Induction loop detector
VEK MNST1
VEK MNST2
VEK MNST3
VEK MNST4
Loop/channel
1
2
3
4
Connection X3/Pin
1.1-1.2
2.1-2.2
-
-
Connection X4/Pin
-
-
3.1-3.2
4.1-4.2
1.1 1.2 2.1 2.2
3.1 3.2 4.1 4.2
X1
X2
X3
X4

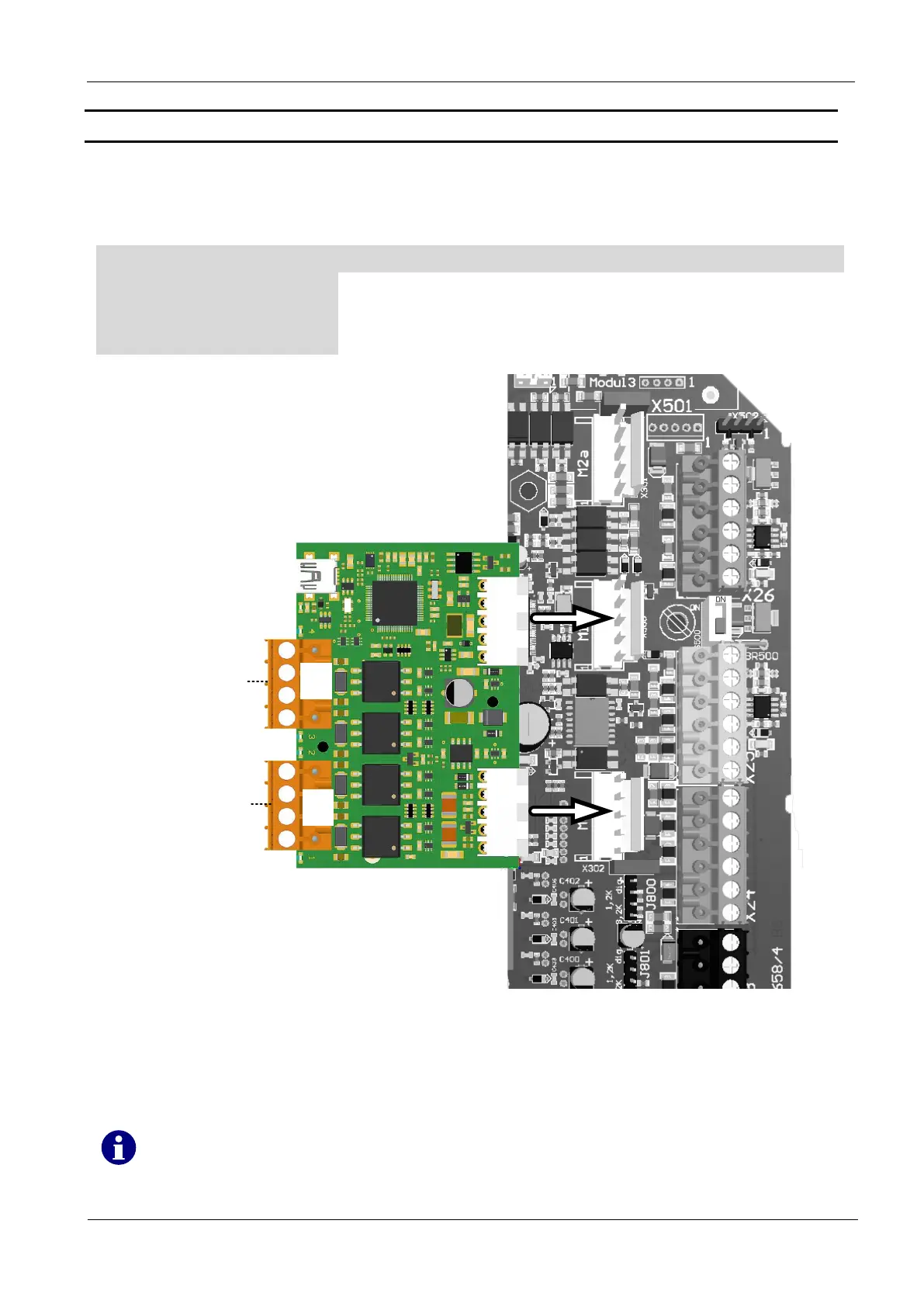

Figure 36: Sample connection to VEK MNST4
To activate the slot for the induction loop detector, parameter P.802 must be set to 0400.
It is not possible to operate detector boards in controller variants -A.
