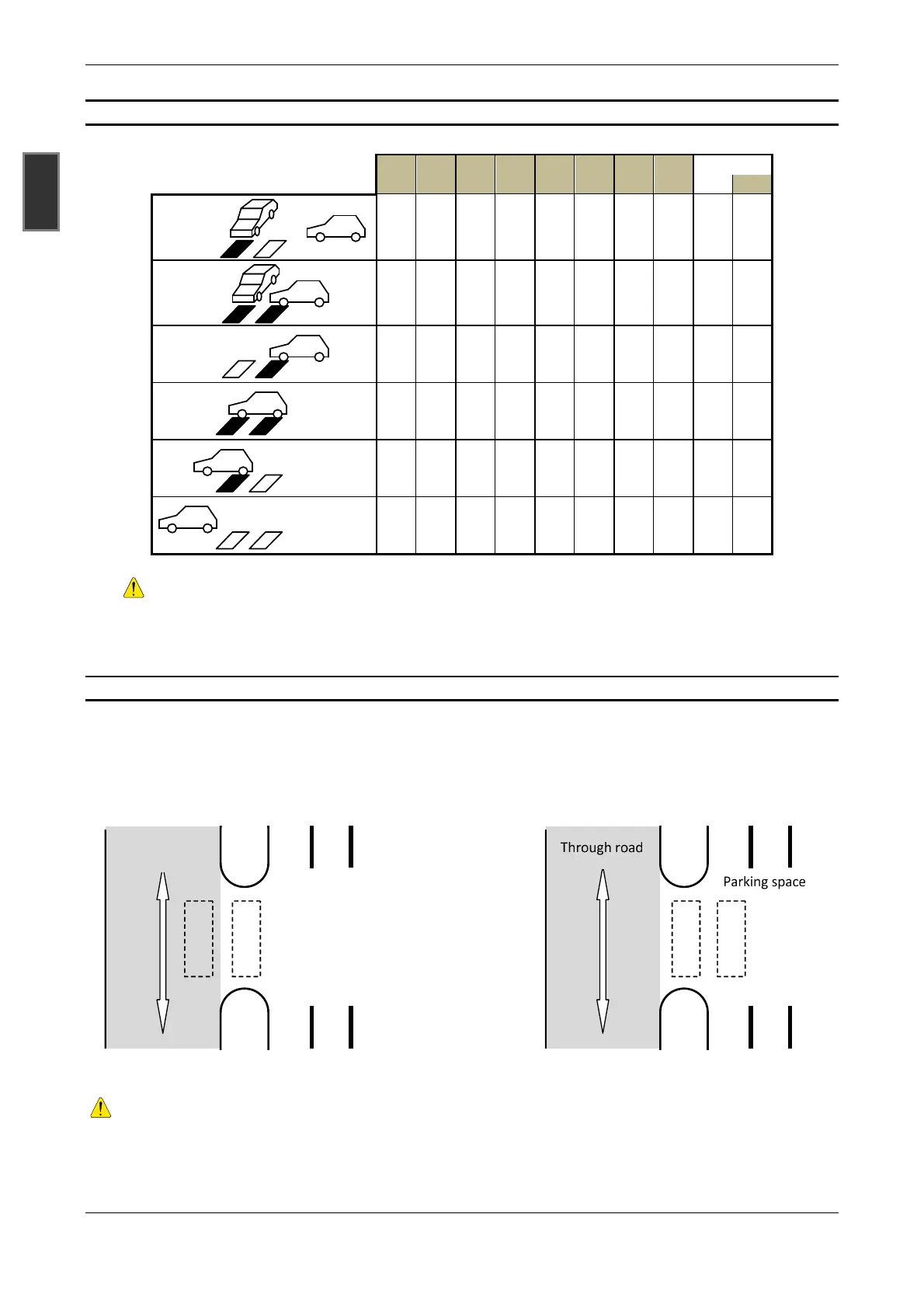

11.12.8 Cross traffic
D2 D1 DB F1 F2 FE SF BS
PB
Ri1 Ri2
1 2
on
|
on
|
1 2
on
|
|
|
|
|
|
|
Imp Imp Imp
1 2
|
|
|
|
off
|
|
|
Imp Imp
1 2
|
|
|
on
|
|
|
|
1 2
|
off
|
|
|
|
|
|
___
Imp
1 2
|
off
|
off
___
Imp
All logics except for the logic PB in direction 1 supply in this traffic situation miscounts since they
count on instead of off signals!
11.12.9 Direction Logics “Parking Bay”
This direction logic is used for short entries and exits. The impairment of the counting process by cross traffic
on loop 1 is suppressed in this logic. It is irrelevant whether loop 1 is placed into the through road or in the
maneuvering area.
1 2
Parkraum
Durchfahrt
(Straße)
Through road
Parking space
or
1 2
Parkraum
Durchfahrt
(Straße)
The placement of loops depends on the direction to be expected for start-stop situations. In traveling di-
rection 1 → 2 no tailback may occur! In the direction of travel 2 → 1, vehicles are also counted correctly
in start-stop situations, but it is necessary that the vehicle gap release one loop respectively.
