Felt IA - Page 11

IA // ROUTING MANUAL
11
STEP 2
Connect a wire (1200mm)—shown in purple in the diagram—to the Junction A box located under the
front cover and route through the stem and into the frame where the top tube-mounted storage box
is located. Then continue routing through the downtube to Junction B box located around the bottom
bracket area. See Figure B2.

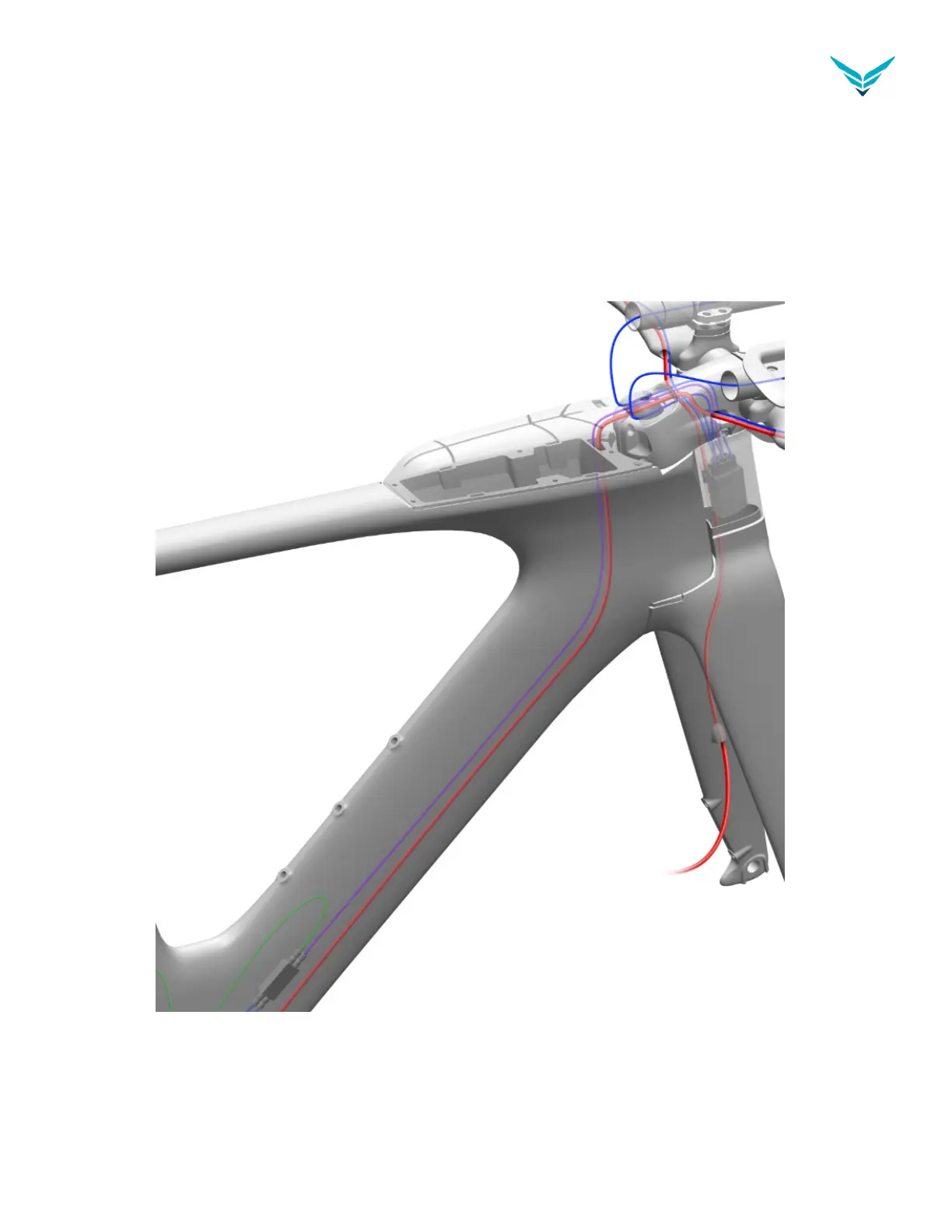

Figure B2
