IA // ROUTING MANUAL
18
REAR BRAKE HOSE
NOTE
A Park Tool IR-2 specialty tool is very helpful when doing some of the next steps, but is not necessary.
STEP 1

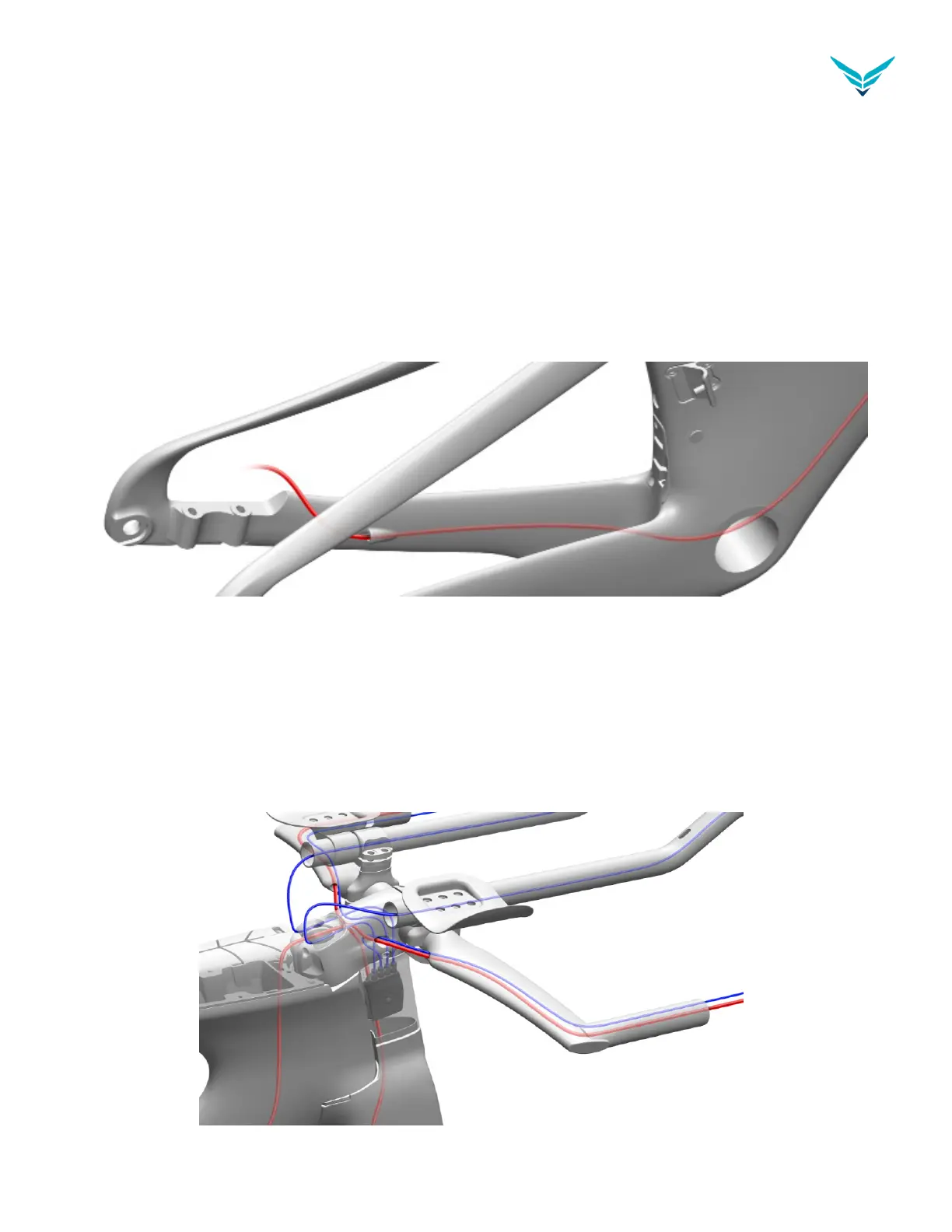

Start from the rear brake caliper and enter the non-drive-side chainstay. Route over the bottom bracket
shell and feed the hose through the downtube. See Figure C2.
Figure C2
STEP 2
Exit where the integrated storage compartment is positioned along the top tube. Route through the
stem and then into the basebar, then towards the brake lever. Here you’ll be able to connect the brake
hose to the brake lever. See Figure C3.
Figure C3
To Next Page
