USING A DIRECT-MOUNT BAR/STEM
If you are using an integrated basebar, please note the following diagram in regards to routing ca-
bles and hoses in and around the bar (all other steps are the same). See Figure A8. Using a Shimano
“Y” E-tube connector (Shimano part number EW-JC130), connect its two electronic shift wires located
where the brake levers will go, and connect to the Junction B box located under the front cover. Con-
nect an electronic wire to each shifter located in the aerobar extensions, and then connect them to the
Junction B box located under the front cover.

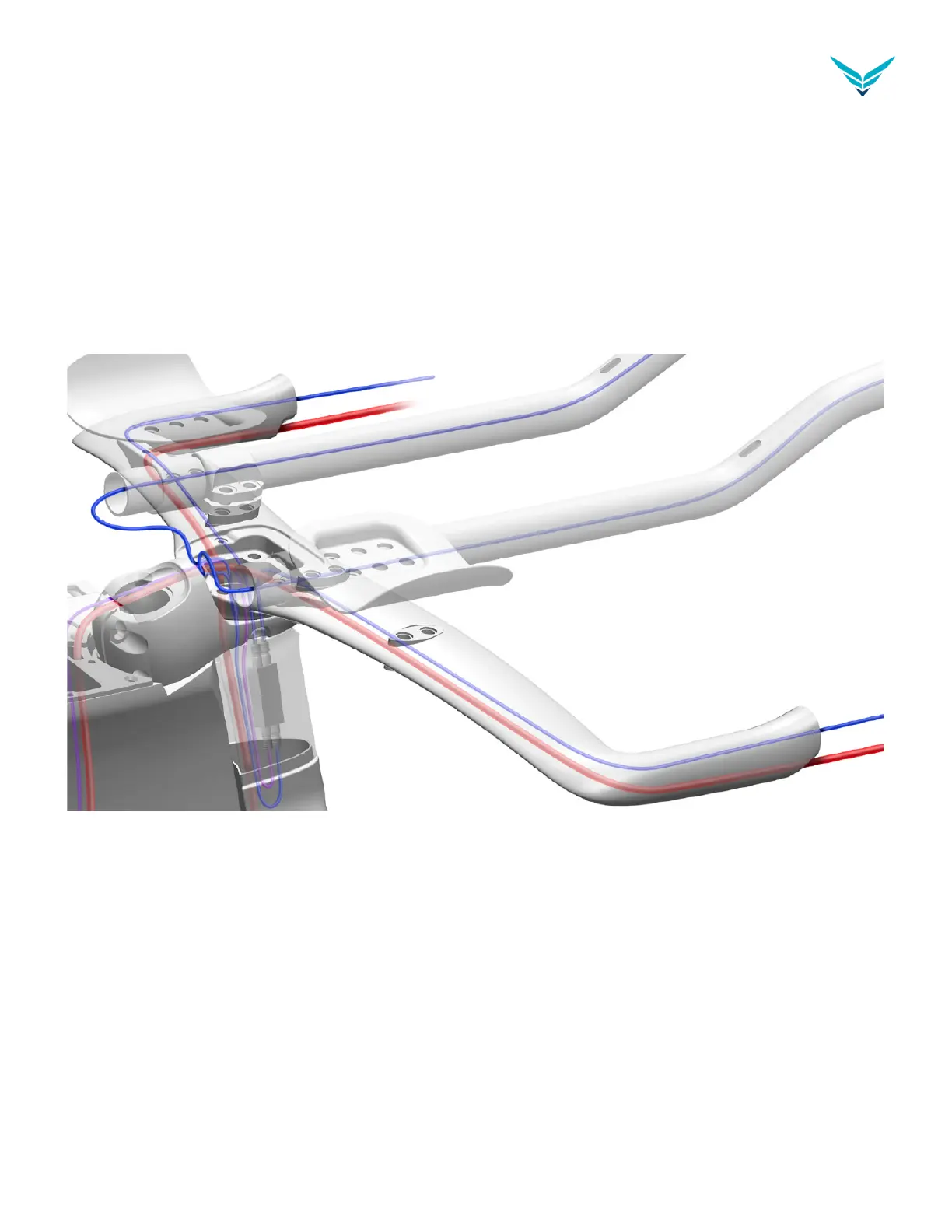

Figure A8
