Your new Champion
®
30 DSP amplifier delivers
world–class Fender
®
tone and world–standard Fender
®
DSP technology:
• 30W output power @ 8 ohms
• Digital Signal Processing
• 16 FX SELECTIONS
• Separate FX LEVEL control
• Selectable Normal and Drive channels with
independent volume controls
• HEADPHONES jack for private sessions
• FOOTSWITCH jack for use with a Fender
®
1-button
footswitch (optional); enables remote activation of
(1) Channel Select
Thank you for choosing Fender
Thank you for choosing Fender
®
®
—T
—T
one, T
one, T
radition and Innovation—since 1946
radition and Innovation—since 1946

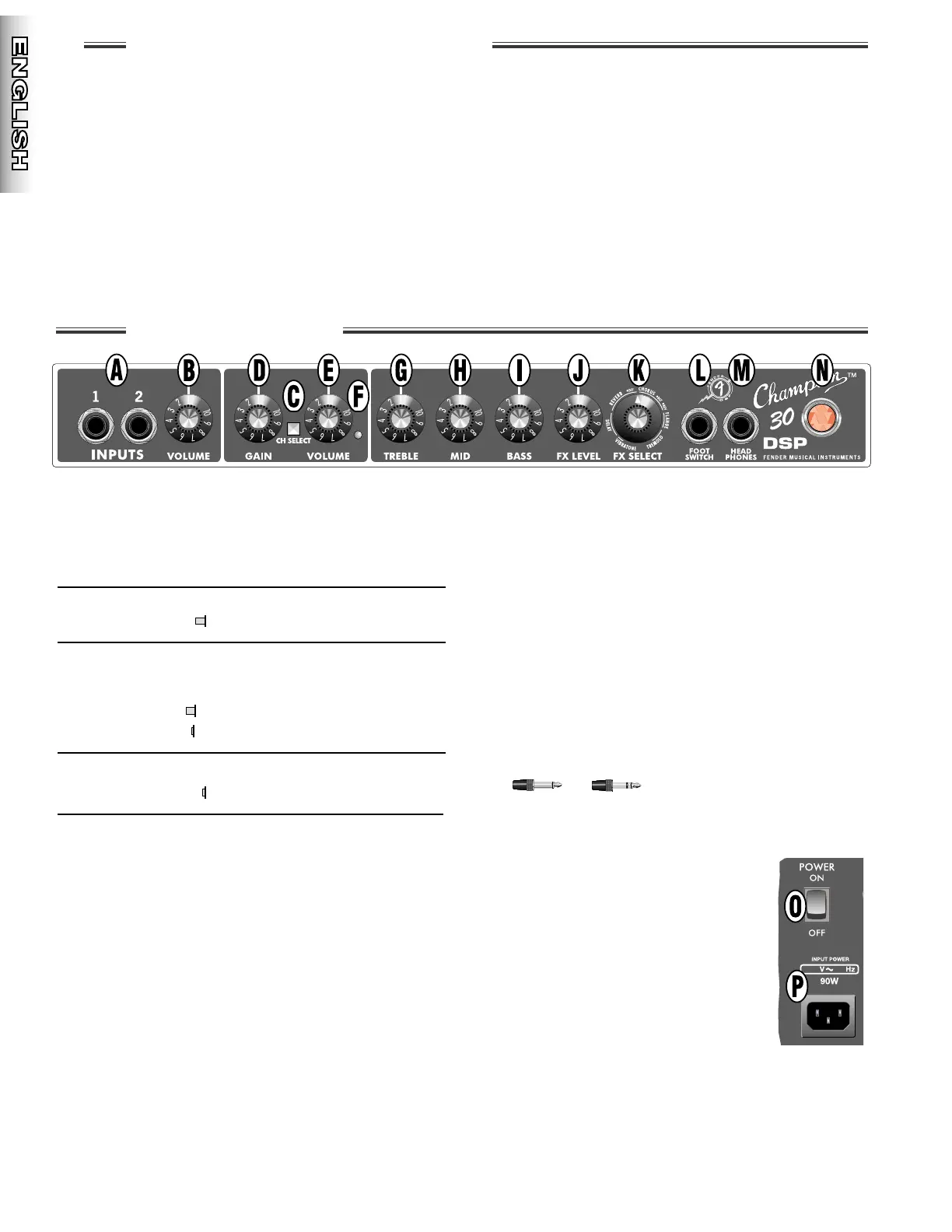

A. INPUTS - Plug your guitar in here. INPUT 1 is used
for normal electric guitars. INPUT 2 is a lower
sensitivity input for guitars equipped with high output
(active) pickups.
The Normal channel control (B) is operational when the
CH SELECT button is out, or footswitch LED
is off.
B. VOLUME - Adjusts the loudness of the amplifier.
C. CHANNEL SELECT -
Button out selects the Normal channel
Button in selects the Drive channel
The Drive channel controls (D–F), are operational when the
CH SELECT button is in, or footswitch LED
is on.
D
.
GAIN - Adjusts the distortion level. Use in conjunction
with the Drive channel VOLUME control (E) to adjust
the overall loudness of the amplifier.
E. VOLUME - Adjusts the loudness of the amplifier in
conjunction with the GAIN control (D).
F. CHANNEL INDICATOR -
LED off
Normal channel is active
LED on
Drive channel is active
G. TREBLE - Adjusts the high-frequency tone.
H. MID - Adjusts the mid-frequency tone.
I. BASS - Adjusts the low-frequency tone.
J. FX LEVEL - Adjusts the level of the selected effect.
K. FX SELECT - Selects the active effect (see next
page).
L. FOOTSWITCH - Connect a 1-button Fender
®
footswitch (optional) at this jack to enable remote
switching of CH SELECT. When plugged in, the
footswitch overrides the corresponding panel
control.
M. HEADPHONES - Output jack for headphones using
a standard* 1/4” plug. The internal speaker is
automatically muted when this jack is used.
*( or )
N. POWER INDICATOR - Illuminates when the
amplifier is on.
O. POWER SWITCH - Switches the
amplifier on or off.
P. POWER CORD SOCKET - Connect
the included power supply cord in
accordance with the voltage and
frequency ratings listed on the rear
panel.
