SPECIFICATIONS
TYPE PR 770
POWER Requirements: 100 watts Output: 12 watts RMS into 8Ω @ 5%THD, 1kHz
INPUT IMPEDANCE 1 MΩ (input 1) 136 kΩ (input 2)
OUTPUT IMPEDANCE 8Ω (internal and external speaker jacks combined)
SPEAKER One 10” Jensen® P10-R (8Ω)
TUBES One pair 6V6 (power, PN 0069673300) Three 12AX7 (preamp, PN 0074287400)
One 12AT7 (preamp, PN 0078799200) One 5AR4 (rectifier, PN 0041400000)
FUSE F2A L 250V (100V-120V models) F1.25A L 250V (220V-240V models)
ACCESSORIES Deluxe fitted cover included Two-button footswitch included
DIMENSIONS Width: 20” (50.8 cm) Height: 16.4” (41.6 cm) Depth: 9.4” (23.8 cm)
WEIGHT 32 lbs. (14.5 kg)
Product specifications subject to change without notice.

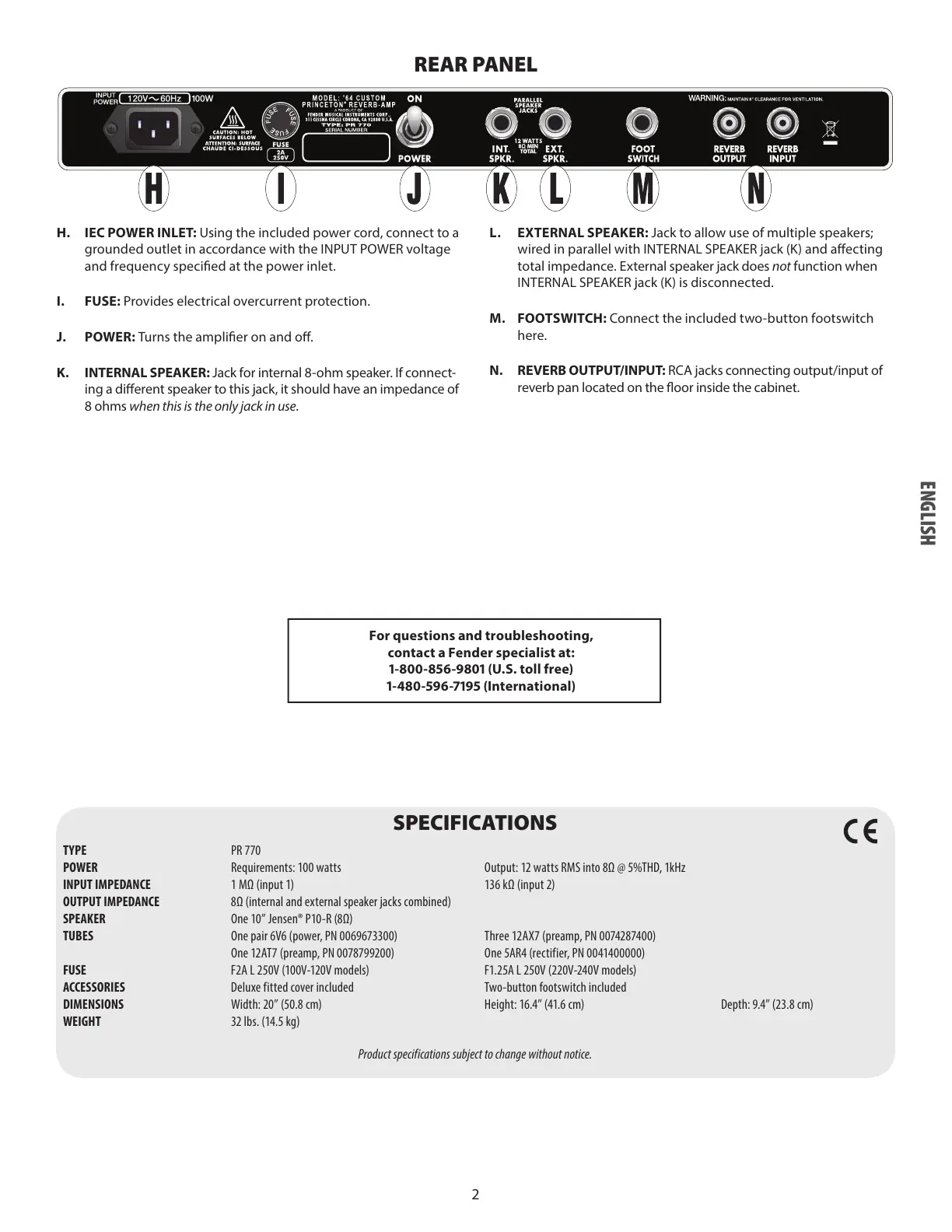

REAR PANEL
H. IEC POWER INLET: Using the included power cord, connect to a
grounded outlet in accordance with the INPUT POWER voltage
and frequency specied at the power inlet.
I. FUSE: Provides electrical overcurrent protection.
J. POWER: Turns the amplier on and o.
K. INTERNAL SPEAKER: Jack for internal 8-ohm speaker. If connect-
ing a dierent speaker to this jack, it should have an impedance of
8 ohms when this is the only jack in use.
L. EXTERNAL SPEAKER: Jack to allow use of multiple speakers;
wired in parallel with INTERNAL SPEAKER jack (K) and aecting
total impedance. External speaker jack does not function when
INTERNAL SPEAKER jack (K) is disconnected.
M. FOOTSWITCH: Connect the included two-button footswitch
here.
N. REVERB OUTPUT/INPUT: RCA jacks connecting output/input of
reverb pan located on the oor inside the cabinet.
