Fender Hot Rod Deluxe IV User Manual

2
ENGLISH
Working guitarists everywhere prize Hot Rod amps for their great volume, reliability, responsiveness to eects pedals, and aord-
ability. The Hot Rod Deluxe IV is a scorching 40-watt 1x12” tube combo decked out with power and performance to spare, great
features and a classic look.
The Hot Rod DeVille is the standard for gigging guitarists worldwide and the ideal amp for crafting your own signature sound. The
Hot Rod DeVille IV combo delivers the goods and then some, with 60 watts of tube power driving a scorching pair of 12” speak-
ers, hot-rodded performance to spare, great features and a classic look.
Features include:
• Modied preamp circuitry for increased note denition in the overdrive channels
• Spring Reverb smoothness mod
• Celestion® 12” A-TYPE speakers
• Steel-reinforced strap handle
• Ivory pointer knobs
• Improved control panel texture and graphics
• Lightly aged silver grille cloth
• Pine cabinet for weight reduction
• Cover and two-button footswitch
MORE
DRIVE
NORMAL
BRIGHT
21
ON
OFF
ON
STANDBY
CHANNEL
SELECT
PRESENCEREVERBMASTERMIDDLEBASS
TREBLEDRIVE
VOLUME
INPUTS
POWER
AMP IN
PREAMP
OUT
FOOT
SWITCH
1
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
12 1
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
121
2
3
4
5
6 7
8
9
10
11
12

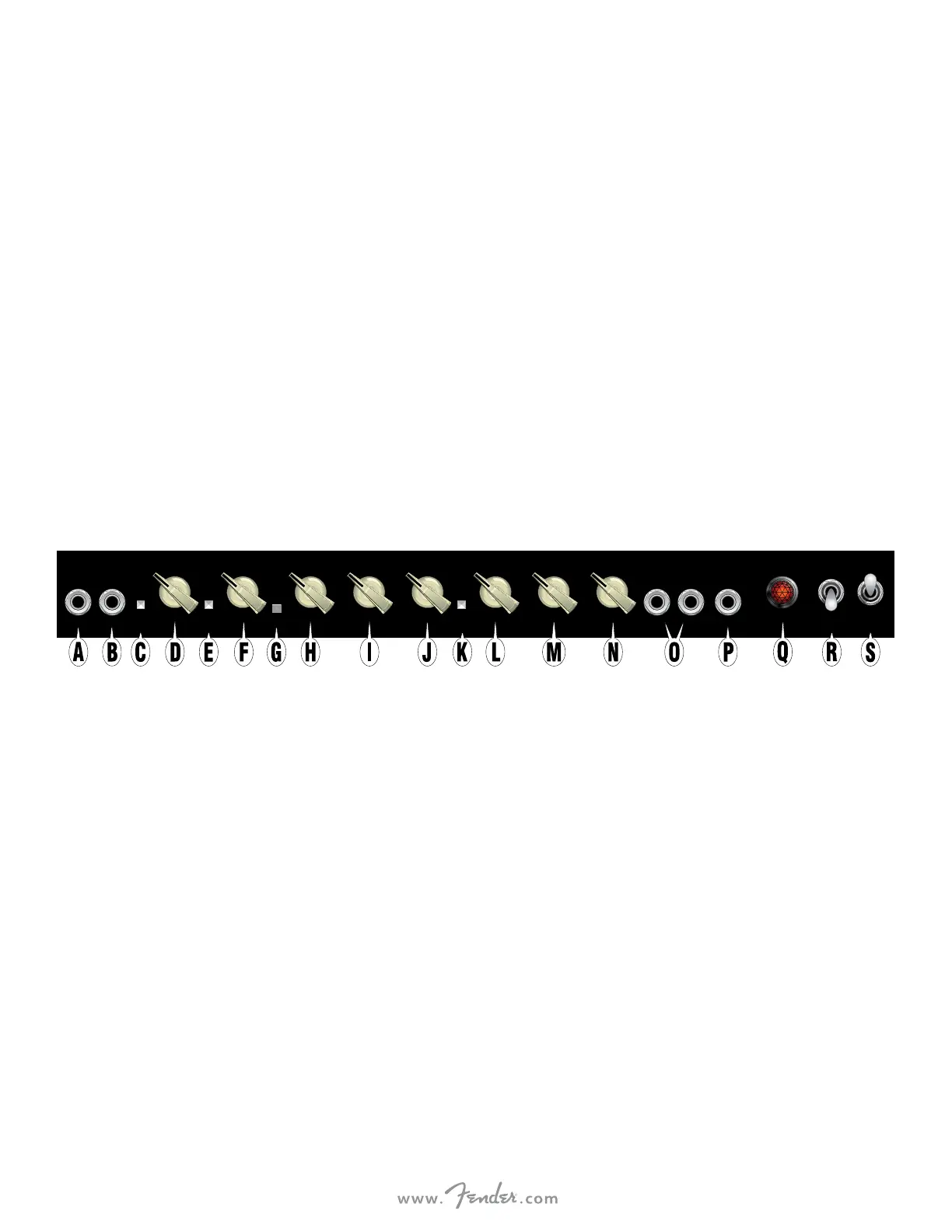

CONTROL PANEL
A. INPUT 1: Normal sensitivity input ideal for use with most
guitars. Either input jack can be used with any type of
guitar depending on the tonal character you prefer.
Experiment and use the input that sounds best to you.
B. INPUT 2: Lower sensitivity input (-dB) provides cleaner
response with high-output and pre-amplified guitars. You
can use input 1 and Input 2 simultaneously with two
guitars or a guitar and a microphone, for example. Input
sensitivities become equal when used simultaneously.
C. NORMAL/BRIGHT: Press in to boost high-frequency
tones of NORMAL channel.
D. VOLUME: Adjusts volume of NORMAL channel.
E. MORE DRIVE: Press in to boost gain and distortion of
the DRIVE channel.
F. DRIVE: Increase DRIVE setting to produce more
distortion and sustain. Use lower DRIVE settings to
produce cleaner sounds.
G. CHANNEL INDICATOR: NORMAL channel (off), DRIVE
channel (yellow), MORE DRIVE channel (red).
H. TREBLE: Adjusts high-frequency tone.
I. BASS: Adjusts low-frequency tone.
J. MIDDLE: Adjusts mid-frequency tone.
K. CHANNEL SELECT: NORMAL channel (out), DRIVE
channel (in).
L. MASTER: Use to adjust loudness of the DRIVE and MORE
DRIVE channels in conjunction with DRIVE (F).
M. REVERB: Adjusts level of the reverb effect.
N. PRESENCE: Adjusts tone at a point in the signal path
after the preamp circuitry to provide unique ultra high-
frequency tone shaping.
O. PREAMP OUT/POWER AMP IN: Multi-functional
input/output jacks that can be used in a variety of
configurations:
Effects Loop: Connect PREAMP OUT to the input of your
effects device and connect effects output to the POWER
AMP IN jack.
Multiple Hot Rod Amps: Connect PREAMP OUT on
primary unit to POWER AMP IN on auxiliary unit. The
primary unit is used to control all auxiliary units, except
HOT ROD DEVILLE™ IV and HOT ROD DELUXE™ IV

Fender Hot Rod Deluxe IV Specifications

General

Type	Tube
Total Power	40 Watts
Speaker Size	12 inches
Speaker	Celestion A-Type
Preamp Tubes	3 x 12AX7
Power Tubes	2 x 6L6
Reverb	Yes
EQ	3-band EQ
Footswitch	2-button footswitch included
Weight	41 lbs (18.59 kg)
Channels	2 (Normal and Drive)
Outputs	1 x 1/4 inch (speaker)
