GENERAL INFORMATION
Operator's Manual Combines FENDT 5220E-5250E-6250E- EN - LA327186015 - 12/2009 1-5

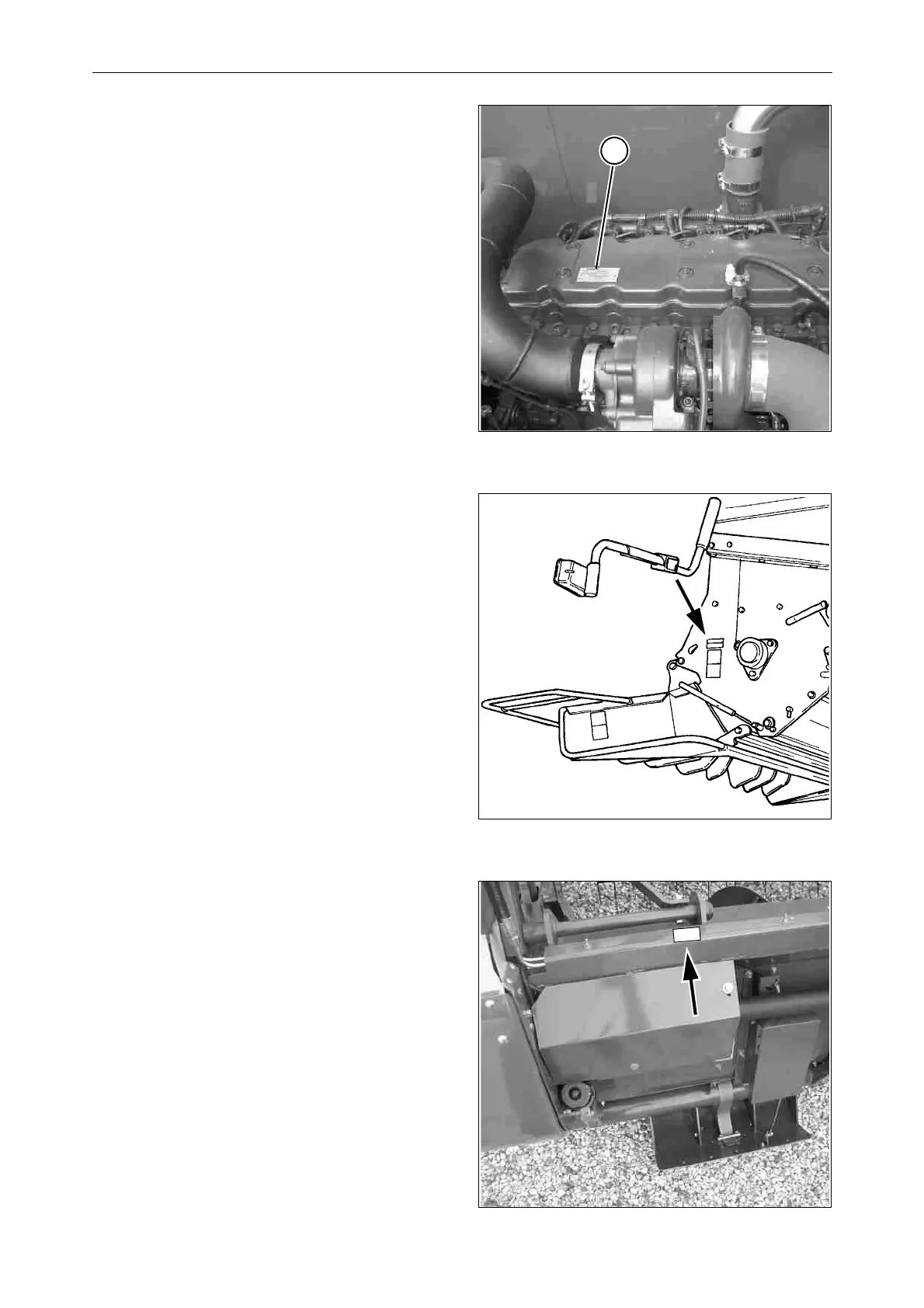

Engine identification - Fig. 4
The engine is identified by the plate (1) on the
engine cover.
The plate shows:
•Family.
•Type.
• Serial number.
• Type approval number (identifies the compli-
ance with the gas emissions directive).
Straw chopper identification (if fitted) - Fig. 5
The type plate is located on the right-hand side
next to the straw chopper rotor support.
Cutting table identification details - Fig. 6
The type and serial number are stamped on the
type plate located on the left-hand side of the
frame.
Fig. 4
1
Fi
. 5
Fig. 6
