Ferm 11
FERM FBJ-710 BISCUIT JOINTER
USERS MANUAL
TECHNICAL SPECIFICATIONS
PACKAGE CONTENTS
The package contains:
1 Biscuit jointer
1 Saw blade
1 Wrench
1 Adjustment plate
1 Allen wrench
1 Dust collection bag
1 Instruction manual
1 Safety instructions
1 Guarantee card
PRODUCT INFORMATION

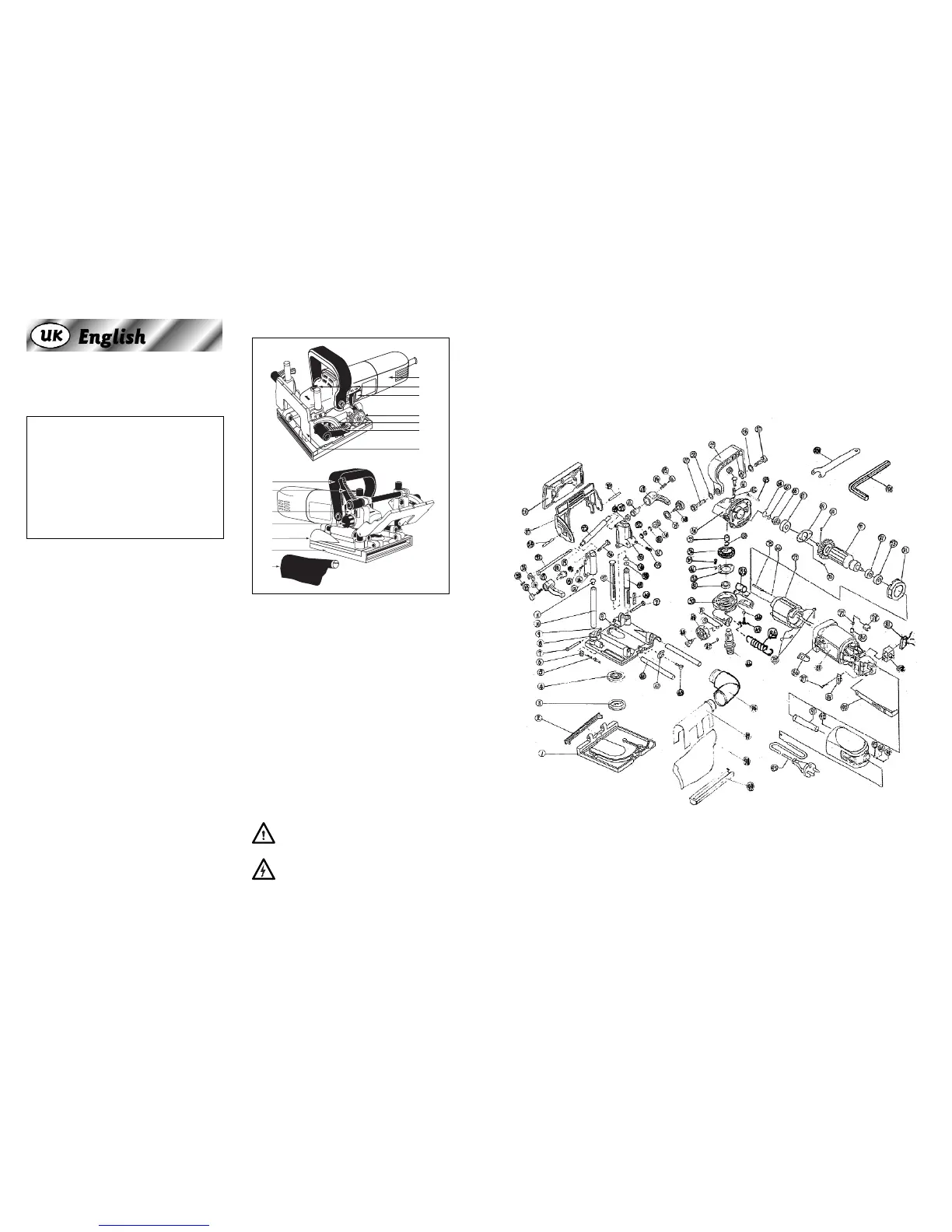

Fig. A
The FBJ-710 Biscuit Jointer is suitable for cutting grooves
for biscuit dowel joints in solid wood, plywood, chipbo-
ard, fibre board, plexiglass and artificial marble.
1. On/off switch
2. Auxiliary handle
3. Spindle lock
4. Angle stop
6. Scale for the fence angle
7. Cutting depth adjustment knob
8. Clamping lever for angle adjustment
9. Clamping lever for height adjustment
10. Knob for height adjustment
11 Scale for the height adjustment
12. Base plate
13. Dust bag connection
14. Dust bag
15. Motor base
SAFETY INSTRUCTIONS
The following symbols are used throughout this manual:
Denotes risk of personal injury, loss of life or
damage to the tool in case of non-observance of the
instructions in this manual.
Denotes risk of electric shock
Voltage | 230 V~
Frequency | 50 Hz
Power input | 710 W
No-load speed | 11000/min
Disc diameter | 100 mm
Blade bore diameter | 20 mm
Max. cutting depth | 22 mm
Fence adjustment | 0 - 90°
Spindle dimension | M10
Weight | 3.0 kg
Lpa (sound pressure) | 89.6 dB(A)
Lwa (sound power level) | 102.6 dB(A)
Vibration value | 1.9 m/s2
2 Ferm
SPARE PARTS LIST
