Regular Maintenance
Fuse Locations
The fuse blocks are located on the side of the instrument
control panel installed in the right hand fuel tank. Refer to
Figure 54 for the location and amperage of the fuses used in
this machine.
A. Charge Circuit: 20 amp fuse
B. Actuator: 30 amp fuse
C. Accessory: 20 amp fuse
D. Auxillary: 20 amp fuse
E. Main: 40 amp fuse
F. Spare: 20 amp fuse
G. PTO Clutch: 20 amp fuse
H. Fuel Solenoid: 10 amp fuse

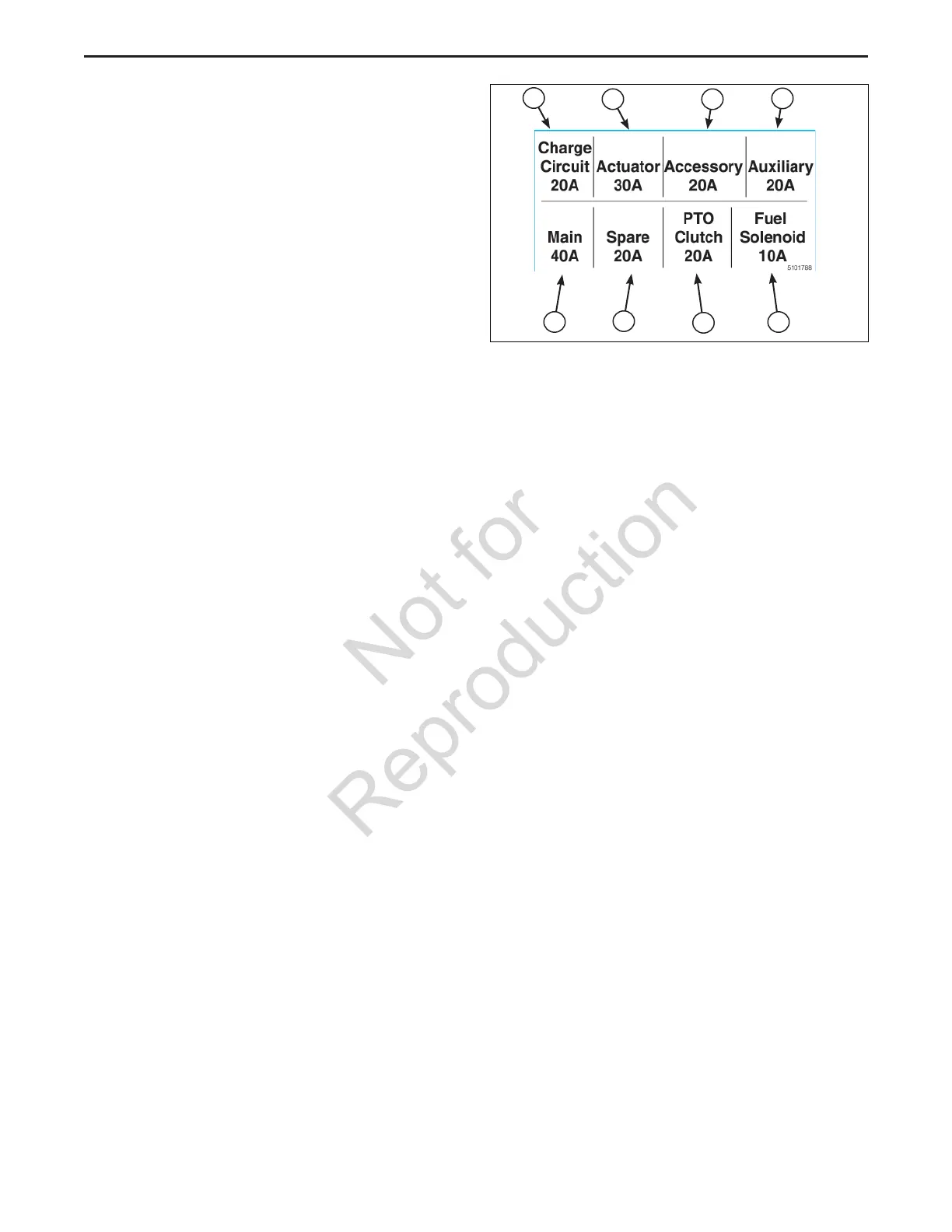

Figure 54. Fuse Location Decal
A. Charge Circuit
B. Actuator
C. Accessory
D. Auxillary
E. Main
F. Spare
G. PTO Clutch
H. Fuel Solenoid
A
B
C
D
E
F
G
H
