BLUEHELIX TECH RRT H
94 ES
cod. 3541C673 - Rev. 00 - 11/2020
4. Características y datos técnicos
4.1 Dimensiones y conexiones
7 Entrada de gas - Ø 3/4"
10 Ida a calefacción - Ø 3/4"
11 Retorno de calefacción - Ø 3/4"
209 Ida al acumulador - Ø 1/2”
210 Retorno del acumulador - Ø 1/2”
231 Empalme de llenado
A6 Conexión descarga de condensado

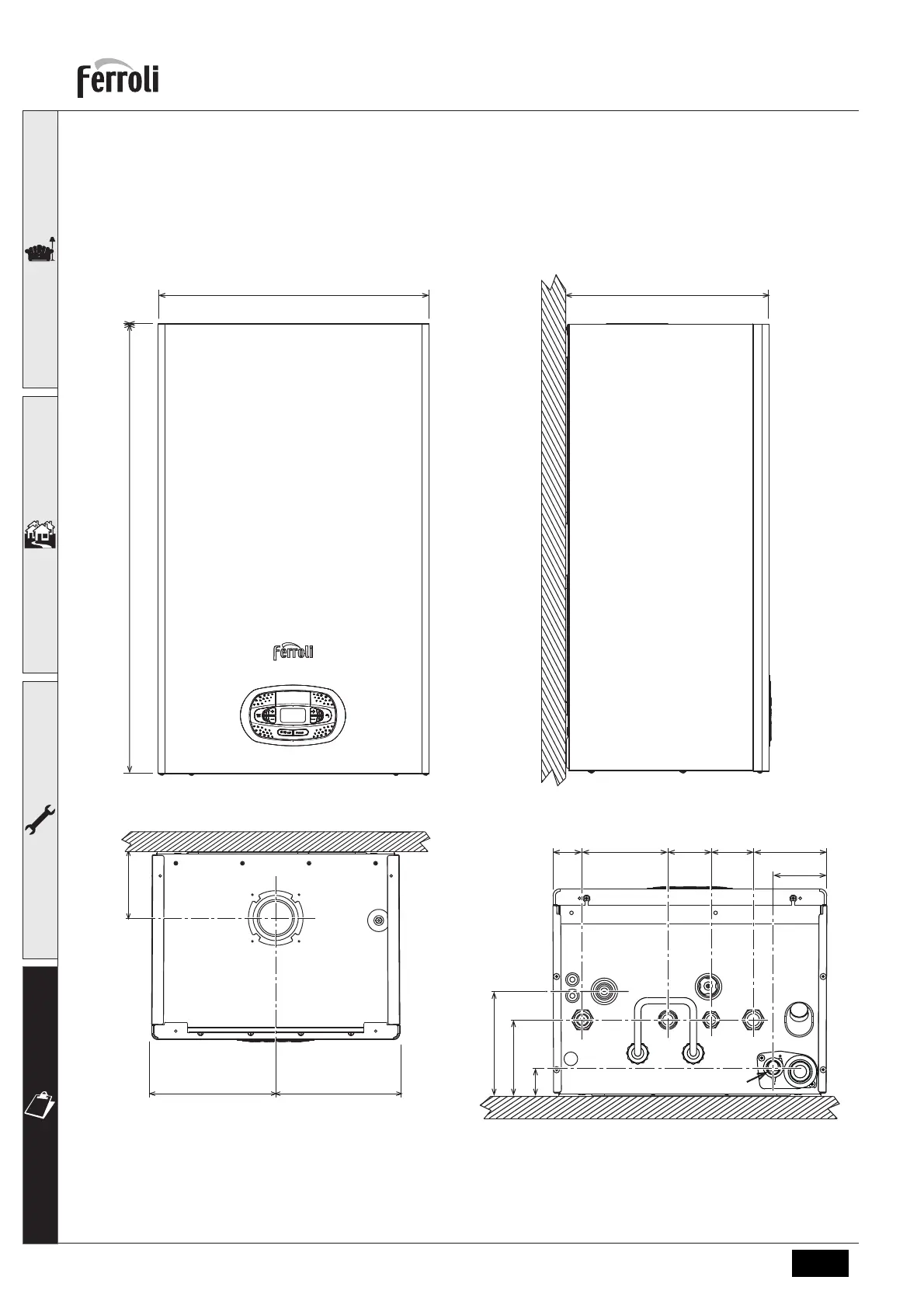

fig. 49- Vista frontal
fig. 50- Vista lateral
fig. 51- Vista superior
fig. 52- Vista inferior
420
700
320
110
210 210
160
115
45 131 66 65 113
10 7 11
44
80
A6
231
209 210
