ACCESSORIES

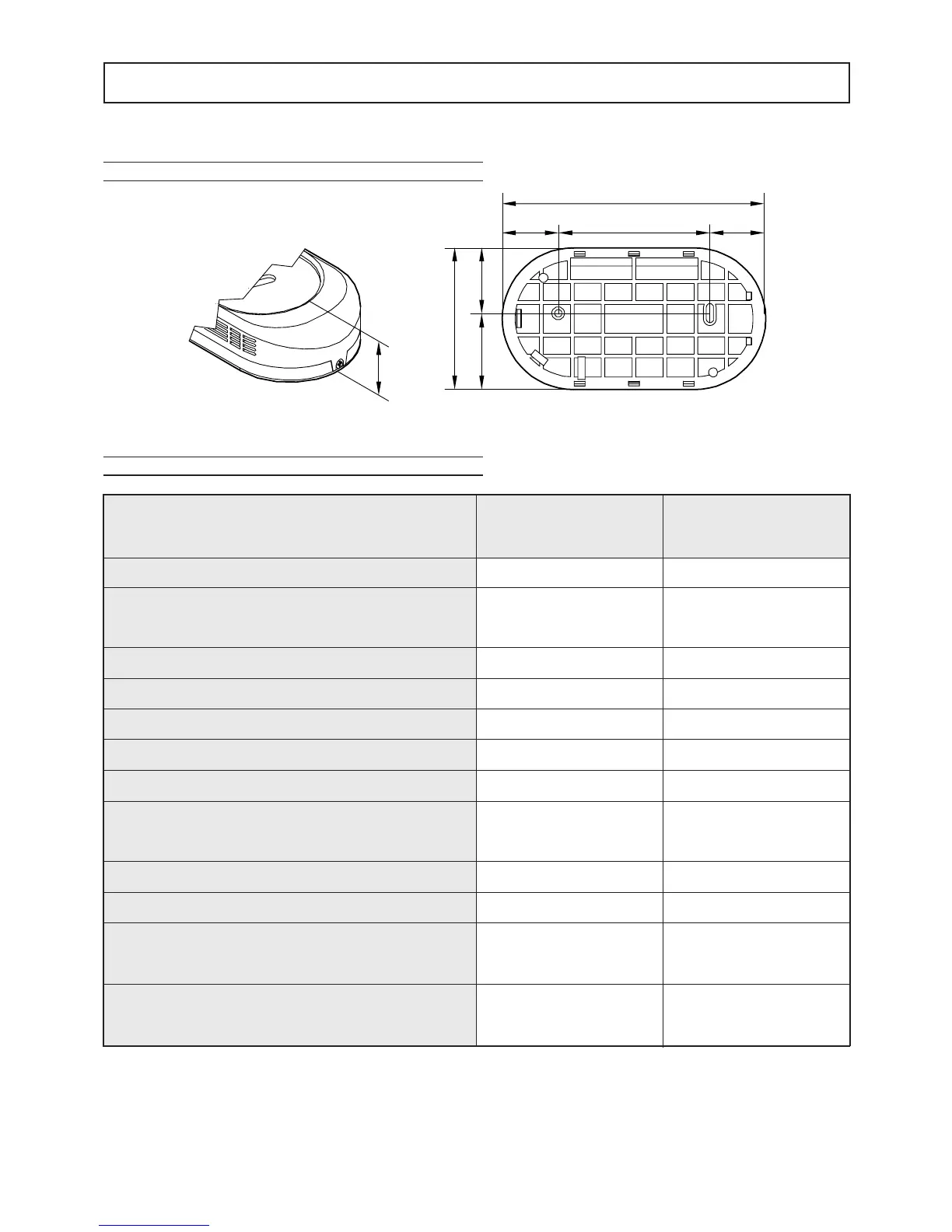

OVERALL DIMENSIONS OF CONTROL PANEL
TECHNICAL SPECIFICATIONS
78
42
33
36
30.75
30.75
83.5
145
ELECTRICAL SPECIFICATIONS
WALL-MOUNTED
VERSION
VERSION ON
MACHINE
Power source voltage rating
230V ± 10%
230V ± 10%
Power source frequency
50Hz
50Hz
Maximum power draw
--
Protection degree
Lower than IP40 Lower than IP40
Operating ambient temperature
0 to 50°C 0 to 50°C
Non-condensing room humidity
10 to 90% 10 to 90%
Storage temperature
-20 to 85°C -20 to 85°C
Non-condensing storage humidity
10 to 90%
10 to 90%
Max. current of valve and/or heating element relay
control output terminals
0.5A
0.5A
Max. current of fan output terminals
1A 1A
PROBES
Air probe NTC 10k-25°C - precision: err<1°C
between +5°Cand 50°C
Mounted on board
Mounted on air intake -
length = 600 mm
Air probe NTC 10k-25°C - precision: err<1°C
between +5°C and 50°C
Mounted in contact with
water bank - length
1800mm
Mounted in contact with
water bank - length
1800mm
Fig.18
Tab.18
