ACCESSORIES
UNIT MODEL 15 20 30 40 60 80 100 120
A (mm)
390 390 590 590 790 790 990 990
Accessory model
FMD-F1 FMD-F1 FMD-F2 FMD-F2 FMD-F3 FMD-F3 FMD-F4 FMD-F4
UNIT MODEL 15 20 30 40 60 80 100 120
A(mm)
392 392 592 592 792 792 992 992
Accessory model
FMP-F1 FMP-F1 FMP-F2 FMP-F2 FMP-F3 FMP-F3 FMP-F4 FMP-F4

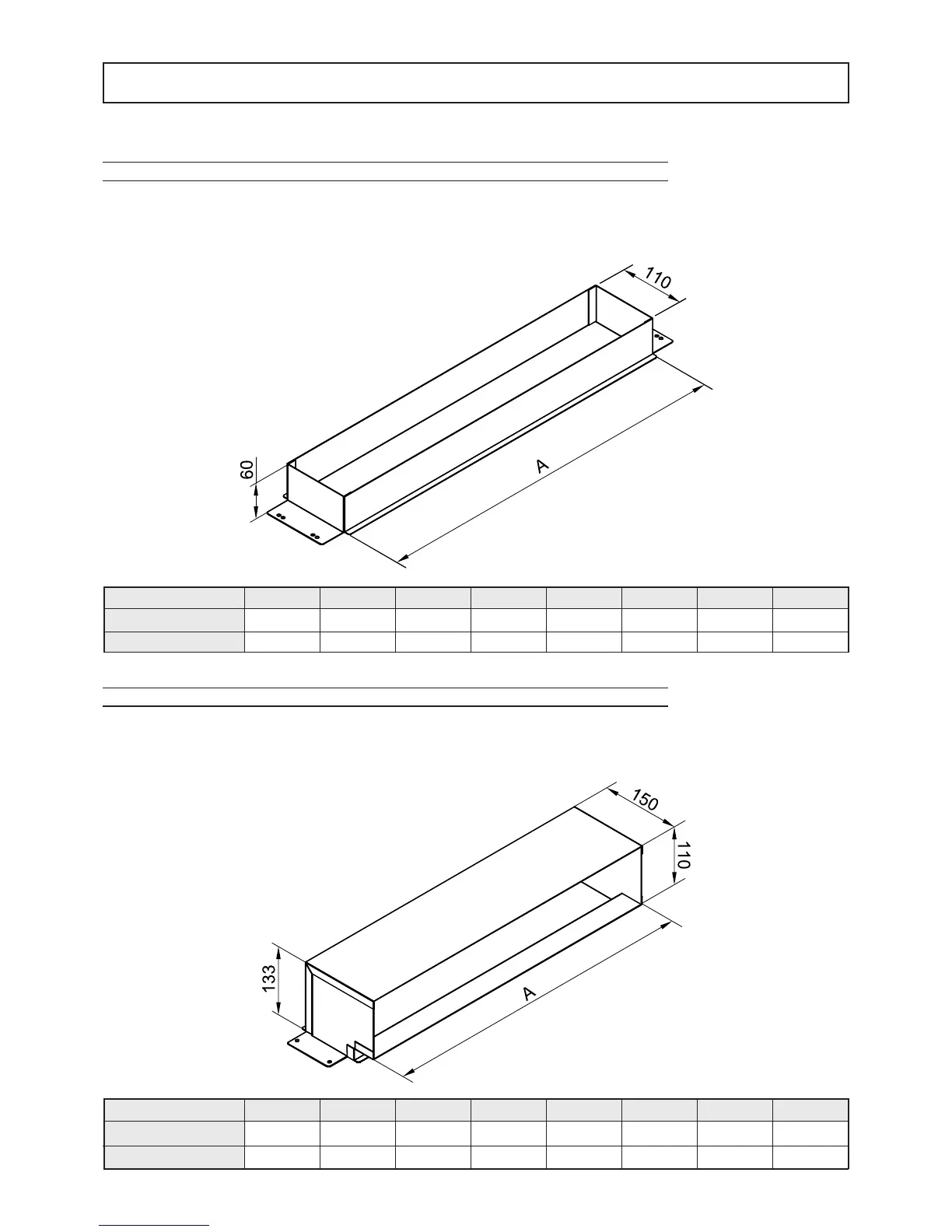

OVERALL DIMENSIONS OF STRAIGHT DELIVERY FLANGE (FMD-F)
Made of galvanized sheet metal, this is used to convey the air in vertical or horizontal built-in installations.
OVERALL DIMENSIONS OF PERPENDICULAR DELIVERY FLANGE (FMP-F)
This is made of galvanized sheet metal and is used to convey the air in vertical or horizontal built-in installations.
Fig.25
Fig.26
