System manual CECX / Digital input/output module CECX-D-8E8A-NP-2
CECX-II 17-14

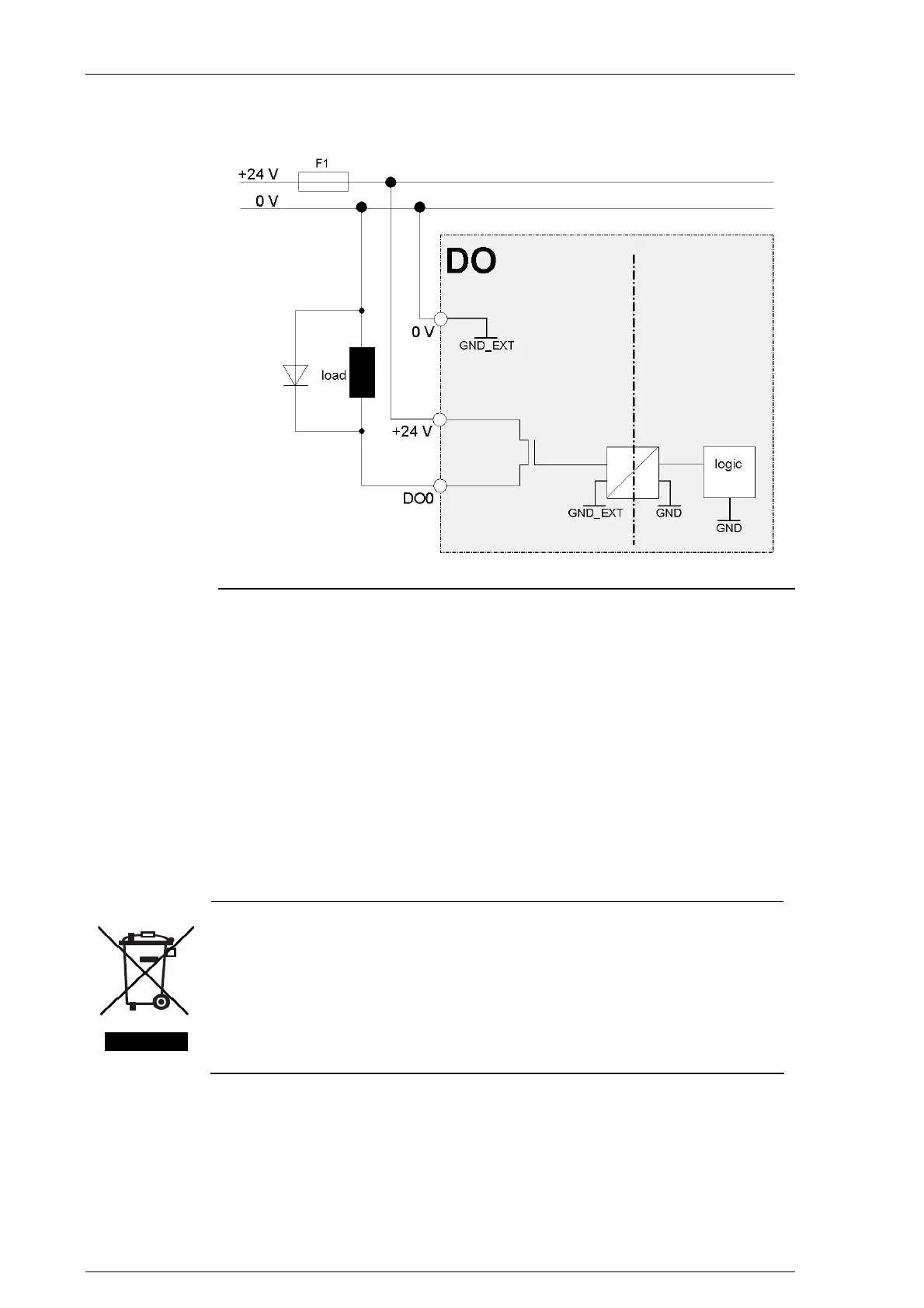

Schematic diagram for the use of a freewheeling diode
17.6.4 Parallel arrangement of outputs
Outputs can be shunted parallel; two outputs can be shunted parallel.
This will not increase the load capacity of the digital outputs through induc-
tive loads.
17.7 Disposal
17.7.1 Disposal of the module
• The symbol with the crossed-out waste container means that electrical
and electronic devices including their accessories must not be dis-
posed of in the household garbage.
• The materials are recyclable in accordance with their labeling. By dis-
posing of such used devices correctly, you can ensure that they can be
reused, their raw materials recycled or put to another use, and you will
be making an important contribution to the protection of our environ-
ment!
