CECX modular control system

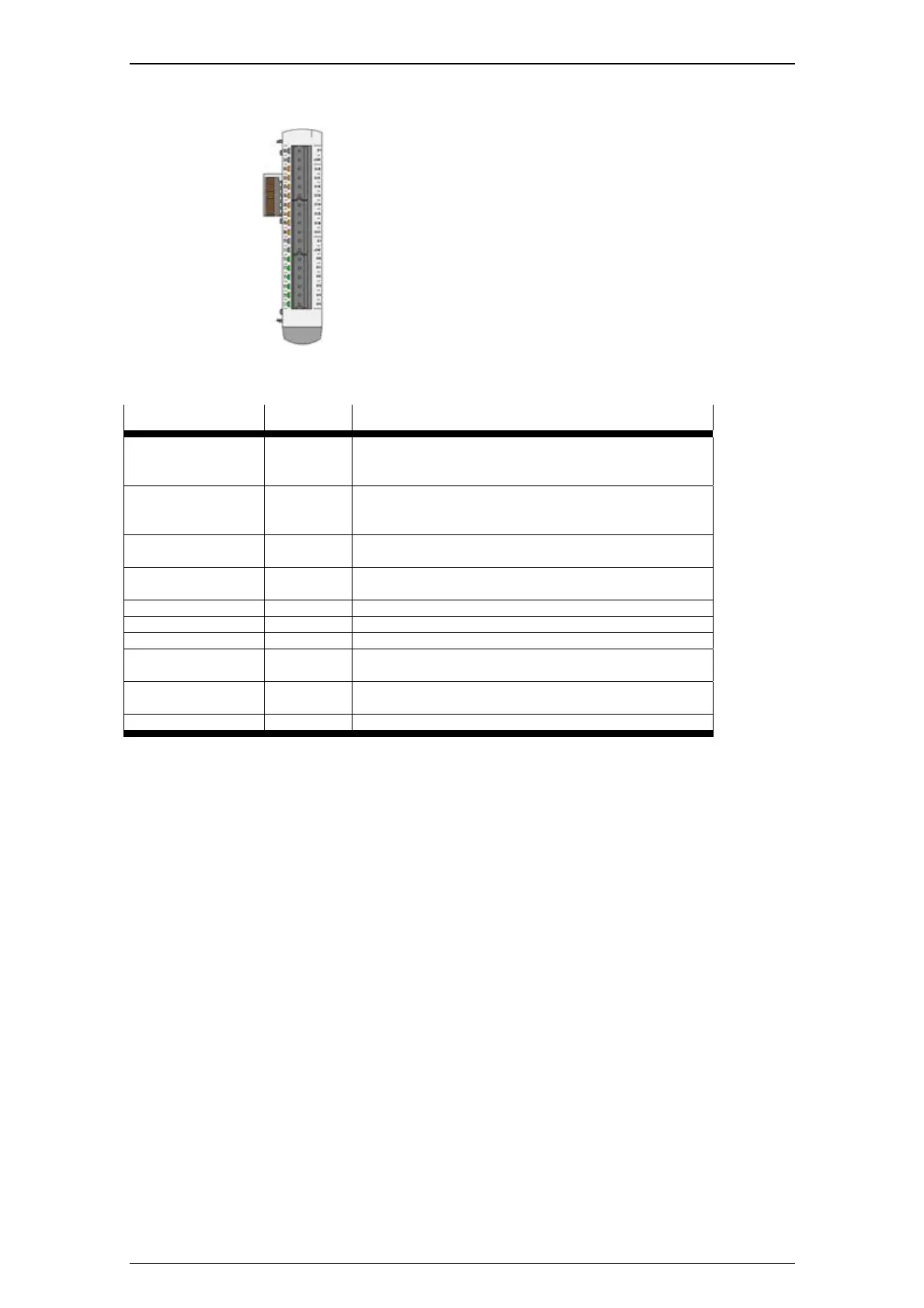

CECX-D-6E8A-PN-2
Digital input/output module
ï‚· 6 digital inputs source, of which 2 are
interruptible
ï‚· 8 digital outputs 2A sink at 50% coincidence,
short-circuit protected, overload protection,
short-circuit detection, group cut-off
Module parameters
Name Value Description
Address Auto The address set on the hex switch on the module is
recognized and taken over automatically. See chapter
"Address setting for modules".
0 - F The address set here (specified in hexcode) must be
brought into agreement with the position of the address
switch on the module.
short circuit scan None The short-circuit detection deactivates all active outputs
of the output group.
scan The short-circuit detection reactivates the outputs not
affected by the short circuit.
DI0 – DI5: despike None Debouncing time 1 ms.
100 ms Debouncing time 100 ms.
DI0 - DI1: Interrupt None No edge evaluation.
Rising
edge
Signal change at rising edge. *)
Falling
edge
Signal change at falling edge. *)
Both Signal change at every signal edge. *)
*) The two inputs DI0 and DI1 can be interrupted. i.e. they can trigger system events when corresponding
module parameters have been set. They can be evaluated with the functions of the 'EventData.lib" library.
CECX-I 20
