CECX modular control system
You can find more detailed information in the specification of the protocol PROFIBUS-DP (Decentralized
Peripherals) in the relevant field bus literature.

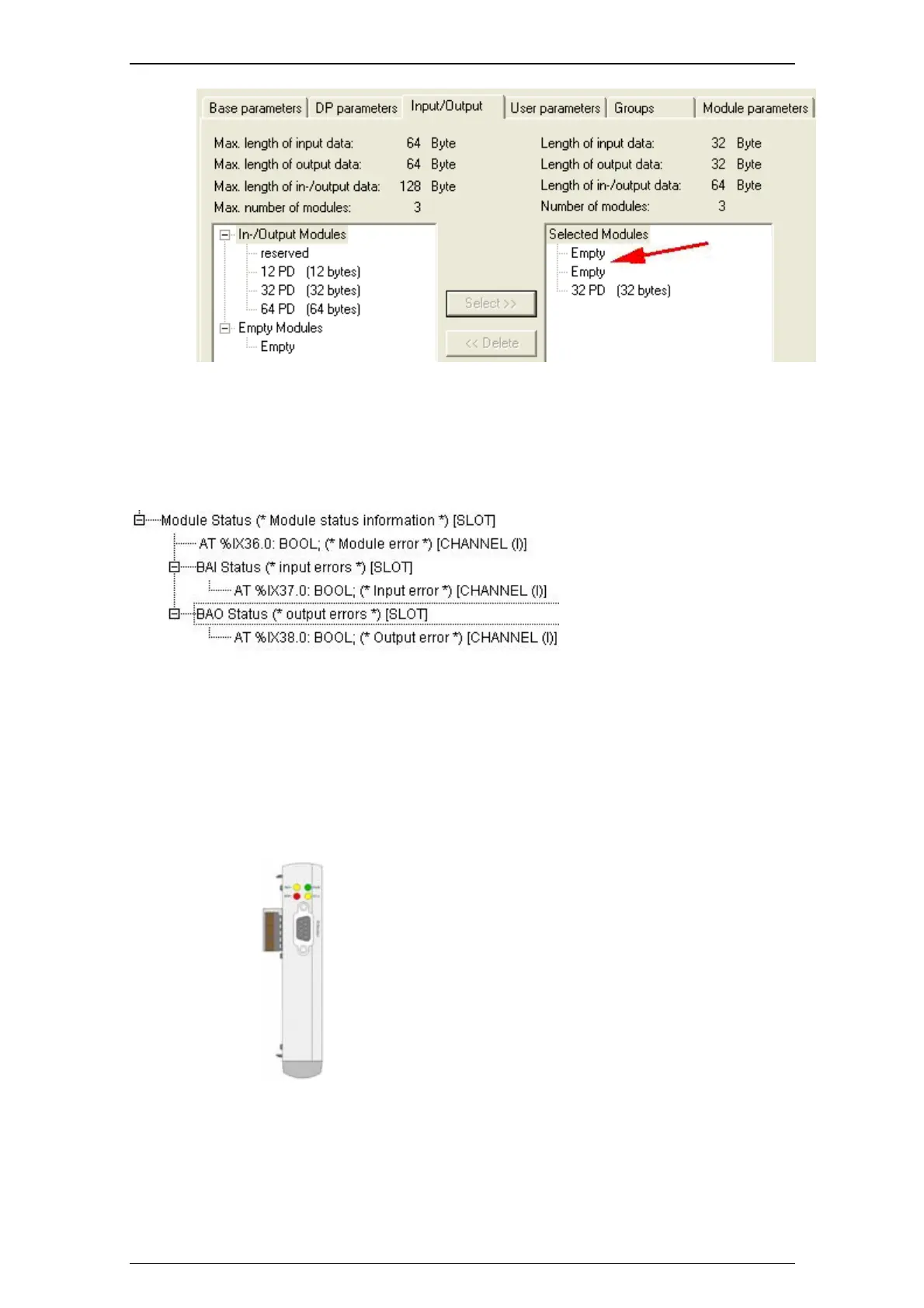

Status values as diagnosis information
The following status values are created for this module (example for 32-byte module):
Possible error states (when status = TRUE)
Module status: module is defective or missing.
BAI status: none.
BAO status: none.
CECX-F-PB-V1
PROFIBUS Master interface module
ï‚· PROFIBUS Master DPV1.
The module is configurable in the PLC configuration at the lower-most "unused[SLOT]" (see image).
CECX-I 28
