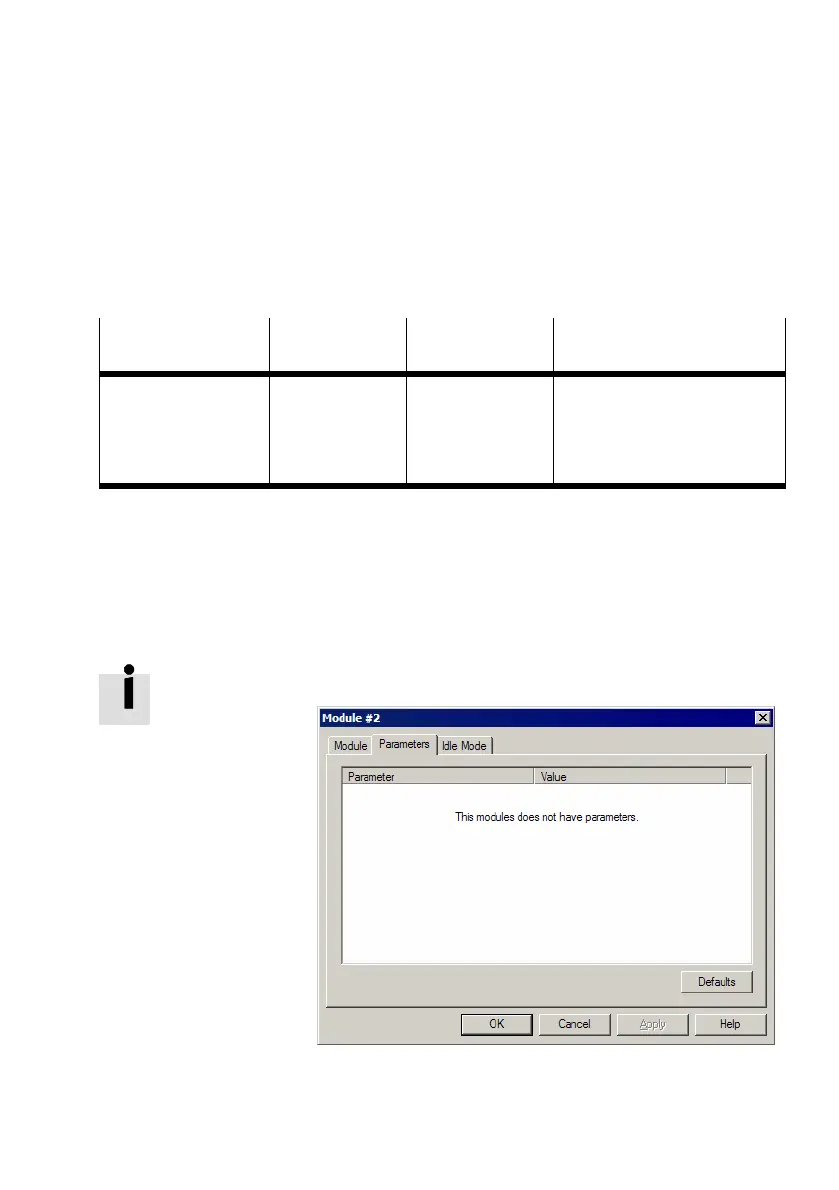

C. Configuration with CPX node
C−29
Festo P.BE−CPX−CMA X−CONTROL−EN en 0908NH
Input word / Output word addresses
Set the start address of the input word and output word of
the CMAX.
Module
Module
identifiers
Allocated
address space
Remarks
CPX−CMAX T21 CMAX−1 4 Input words
(8 bytes)
4 Output words
(8 bytes)
For assignment of the addresses
depending on the operating
mode, see section 2.2.
For an example, see section
C.3.4.
Tab.C/8: Technology module CMAX
C.3.2 CMAX parametrisation
The CMAX has no module parameters.
Fig.C/14: No module parameters
