Movement monitoring (SPOS.MOV)
The bit SPOS.MOV indicates that the drive is moving. For this,
CMAX checks whether the speed signal exceeds the internal
limit (4 mm/s).
The internal status Drive in motion" is additionally filtered
with the switch−off time to simplify the evaluation in a PLC
program.
1 Target setpoint value
2 Reference setpoint
value
3 Actual value
4 Speed
5 Speed tolerance
6 Motion Complete
(SPOS.MC)
7 Internal status
Drive in motion"
8 Axis is moving
(SPOS.MOV)
9 Switch−off time T
OFF
1
2
3
4
5
6
7
9
8
99

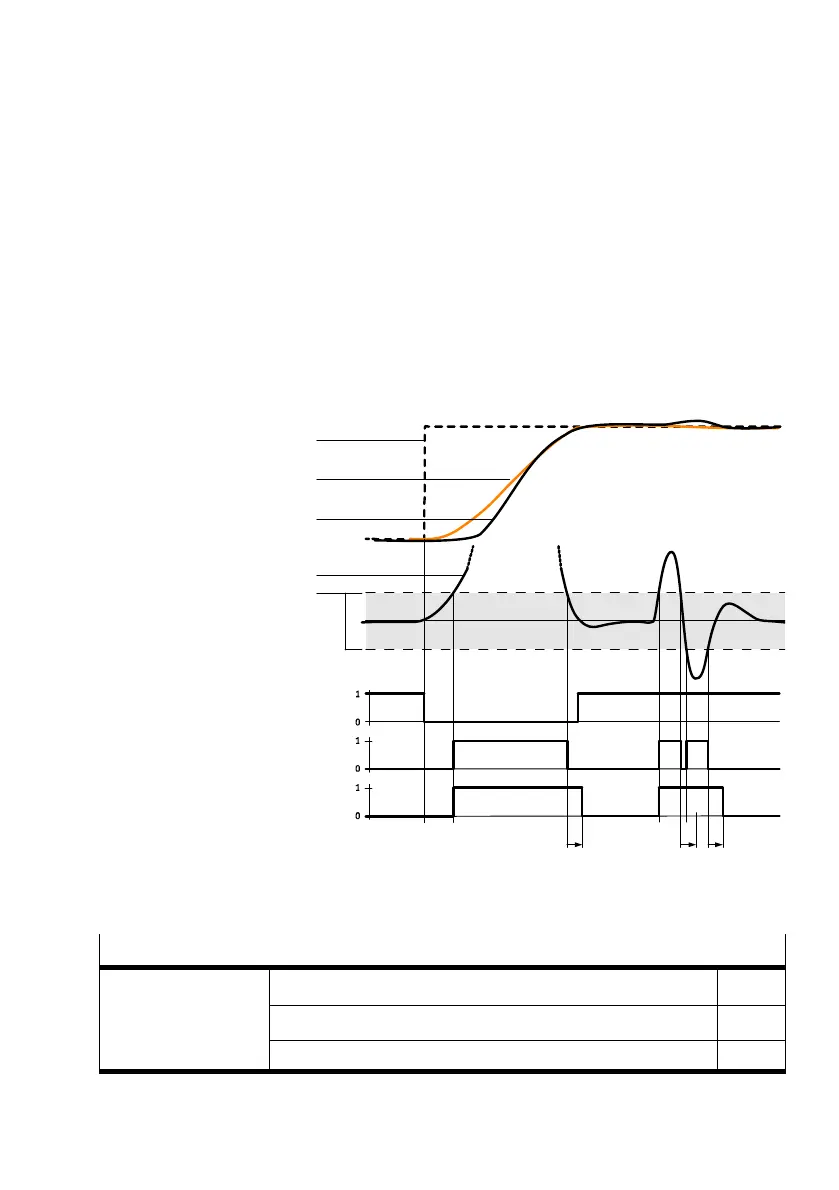

Fig.3/5: Movement monitoring
Overview of parameters involved
Parameters involved Description PNU
Speed tolerance (fixed: ±4 mm/s or 0.16 in/s) 
Switch−off time T
OFF
(fixed: 30 ms) 
Tab.3/7: Parameters involved in movement monitoring
