Radar Training System, LabVolt Series
© Festo Didactic 18
•
•
•
•
•
•
•
•
•
•
Manual
Table of Contents of the Manual(s)
The Phased Array Antenna (Workbook) (580428 (38547-00))
1-1 Familiarization with the Phased Array Antenna
1-2 The True Time-Delay Rotman Lens
1-3 The Switching Matrix
2-1 Beamwidth Measurement
2-2 Radiation Pattern Measurement
2-3 Angular Separation Measurement
2-4 Phased Array Antenna Gain Measurement
2-5 Maximum Scan Angle Measurement
2-6 Target Bearing Estimation
2-7 Target Speed Estimation
RCS and ISAR Measurement Training System (add-on to Radar level 2 and 3)
8122693 (8097-A0)
The RCS and ISAR Measurement Training System
adds on to the Radar Processor/Display, Model
8097-2, to form a computer-based, pulse-mode
system that can measure the radar cross section
(RCS) of targets and produce inverse synthetic-
aperture radar (ISAR) images of targets.
The system can generate RCS patterns of targets
of up to 75 cm (30 in) in length when the longest
pulse width is used. The system can also generate
high-resolution ISAR images of much larger
targets when the shortest pulse width is used.
Because the system is based on pulse operation,
it does not need to be operated in an anechoic
chamber or in an outdoor range. Background
clutter is rejected using time-gating and subtraction techniques during the measurement process.

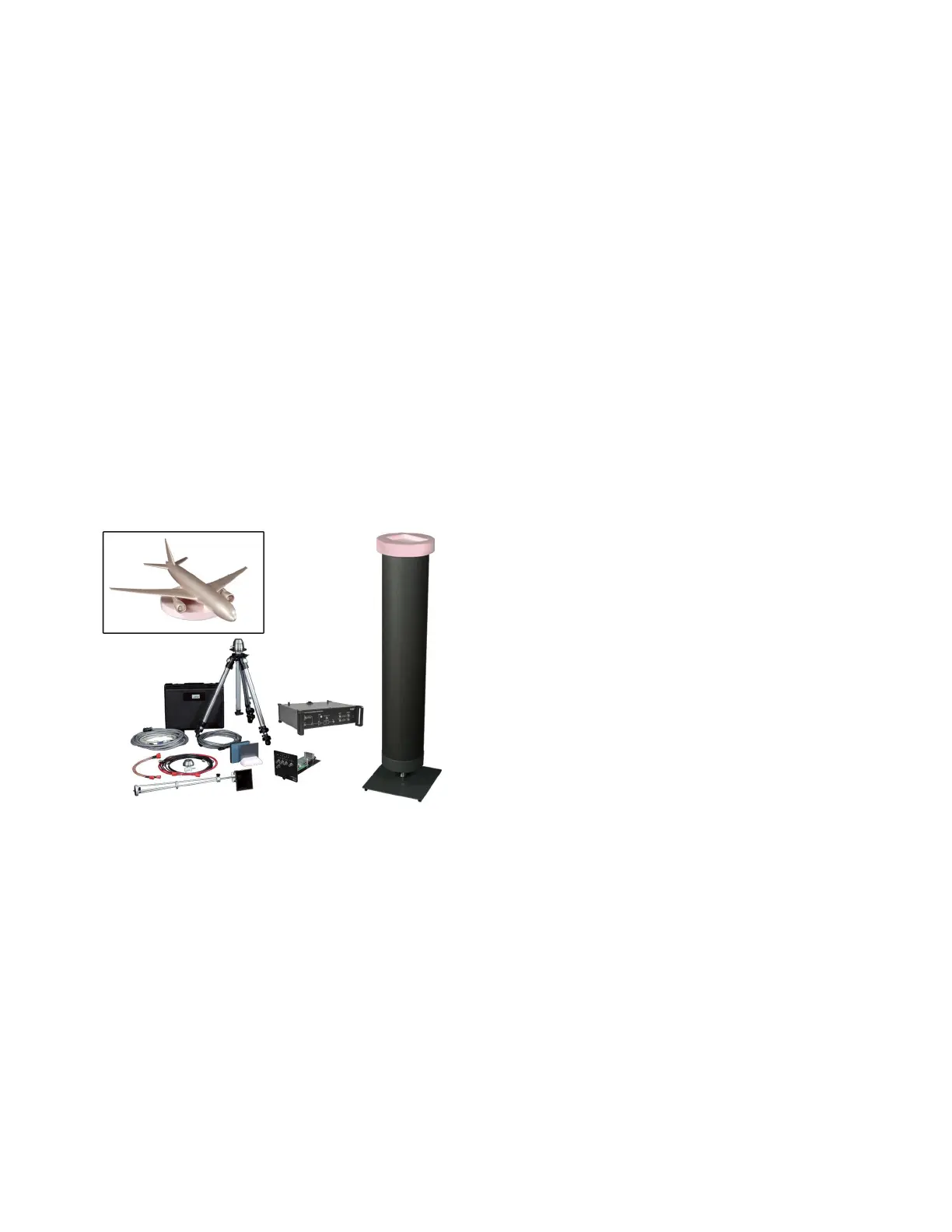

The RCS and ISAR Measurement Training System includes a low-RCS target support to achieve precise RCS
measurements; an RCS/ISAR data acquisition interface; an RCS measurement/ISAR imagery software included
in the LVRTS software; an RCS/ISAR measurement interface module; a set of accessories including a reflective
scale model of a 777 Boeing aircraft; and a system user guide. Note that RTM 9431-2 (or newer) from the Radar
Processor/Display add-on is required to use this add-on. Other reflective scale models are optionally available.
Description
Manual
number
The Phased Array Antenna (Workbook) ________________________________________________ 580428 (38547-00)
