Radar Training System, LabVolt Series
31 © Festo Didactic
Parameter Value
Voltage Range -10 to +10 V (to cover 8 to 12 GHz)
Modulating Frequency Range DC to 130 kHz
Impedance 10 kΩ
Internal Amplitude Modulation
Type On-Off
Frequency Selectable, 0.25, 0.5, 1, 2, 3, 4, 5, 140, 141, 142, 143, 144, 145, 146, 147, and 148 Hz
Amplitude Modulation Input (on-off modulation)
Level TTL
Delay Time / Transition Time 150 ns / 50 ns
Auxiliary RF Output
Frequency Range 8 to 12 GHz
Output Power -30 to +10 dBm, adjustable in 1 dB steps
Impedance 50 Ω
Signal Repeater (Programmable Delay Line)
Maximum Input Power +10 dBm
Range of Delay 2.66 to 5.60 ns (40 to 84.2 cm), adjustable in 7 steps of 0.42 ns (6.3 cm)
RGPO Walk-Off Time Selectable, 0.8, 1.6, 4.0, and 8.0 s
Physical Characteristics
Dimensions (H x W x D) 150 x 170 x 440 mm (5.9 x 6.7 x 17.3 in)
Net Weight 3.4 kg (7.5 lb)

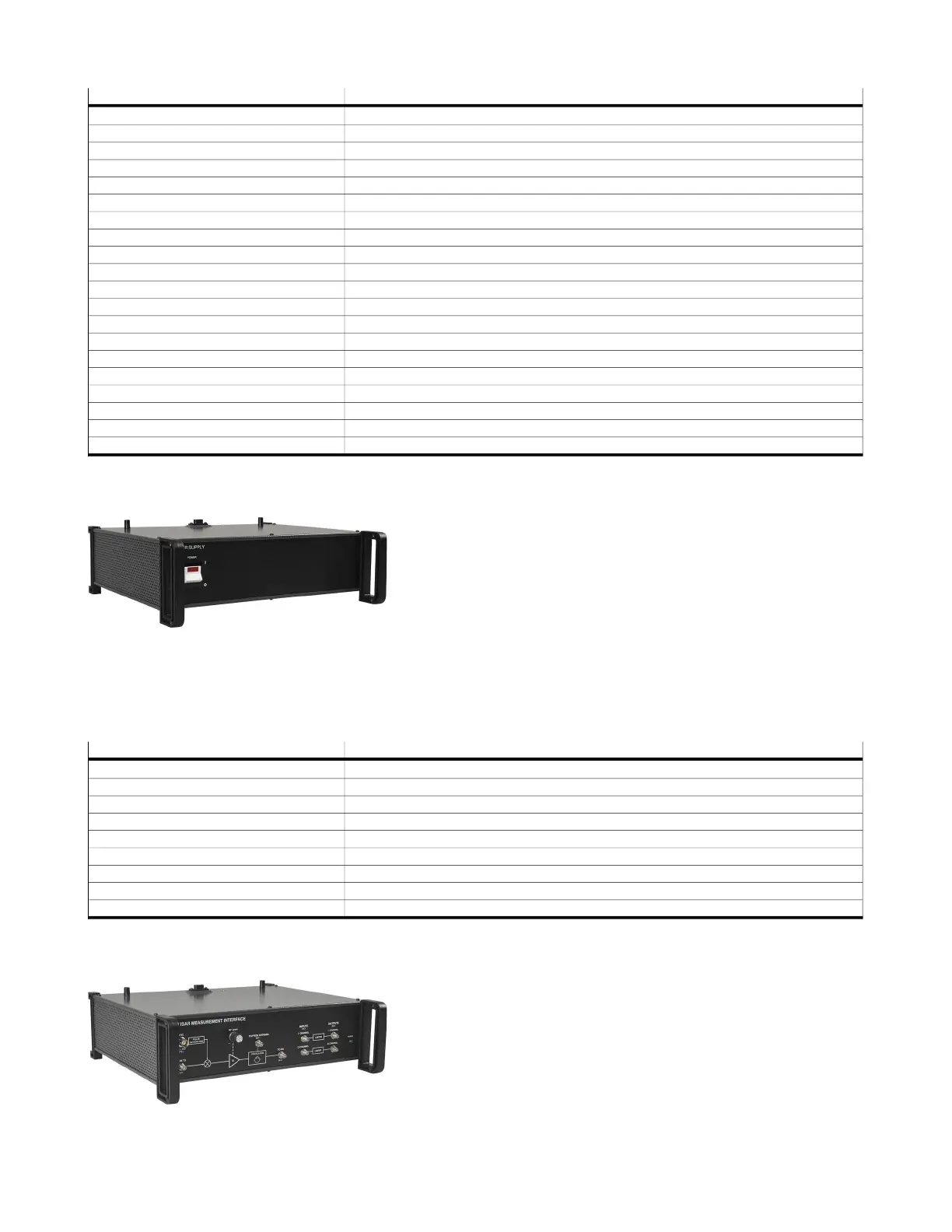

Power Supply (Radar Electronic Warfare)
8095962 (9609-10)
The Power Supply can be installed under the surface of the
Target Positioning System, Model 9607, to provide power to the
Radar Jamming Pod Trainer, Model 9608. It provides the same
unregulated DC voltages as the Power Supply / Antenna Motor
Driver, Model 9601, through a multi-pin connector located on its
top panel. This connector is identical to the power connector
used on several other modules of the system and has the same
pin configuration.
Specifications
Parameter Value
Power Requirement
Current 1.5 A (for 120 V)
Service Installation Standard single-phase ac outlet
Unregulated DC Outputs -25 V typ. -1.0 A max.; +11 V typ. -1.5 A max.; +25 V typ.-1.0 A max.
Line Input Protection 2 A / 1 A circuit breaker
Unregulated DC Output Protection 1.0 A and 1.5 A circuit breaker
Physical Characteristics
Dimensions (H x W x D) 112 x 330 x 300 mm (4.4 x 13 x 11.8 in)
Net Weight 6.7 kg (14.8 lb)
RCS/ISAR Measurement Interface
581960 (9610-00)
The RCS/ISAR Measurement Interface contains additional RF
circuitry that allows RCS and ISAR measurements to be
performed using the Basic Radar Training System, Model
8096-1. This RF circuitry also allows the Basic Radar Training
System to be converted into a synthetic aperture radar (SAR).
The additional RF circuitry in the RCS/ISAR Measurement
Interface consists of a time-gated, variable-gain amplifier; a
