3. Installation
3-30
Festo P.BE-SPC11-SYS-ASI -EN en 0203NH

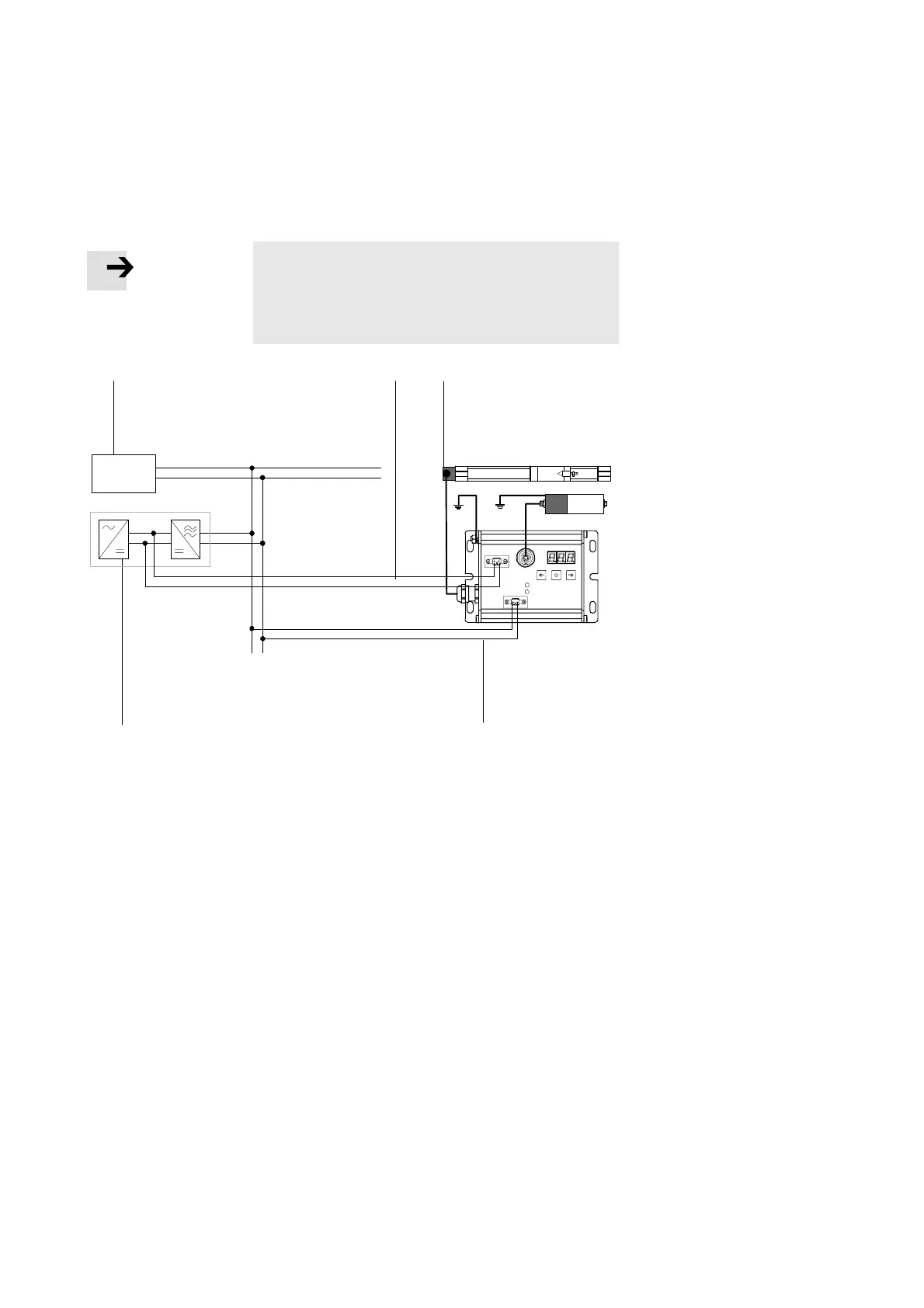

Connection example type SPC11-...-...
Please note
With measuring systems type MLO-PO T-...-LWG:
In order to earth the system, connect the earthing cable on
the flat plug of the measuring system to the earth connec-
tion on the SPC11.
123
45
ASI +
ASI -
1 AS-Interface master
2 Operating voltage (black cable)
3 With linear drives, end position 1
lies on the side with the electrical
connections to the measuring system
4 AS-Interface bus (yellow cable)
5 AS-Interface combi power pack
Fig. 3/14: Connection example type SPC11-...-...-ASI
