8.1 Setting device up for use at floor
level
The grazing light can be set up in two dif-
ferent positions
[3 A]+[3 B]
.
8.2 Setting device up for use above
floor level
Only use the device together
with the Festool tripod ST
DUO 200 and the Festool
adapter AD-ST DUO 200
(some items not included).
Please follow the instructions contained
in the operating manual for the tripod
and the adapter.
Place the tripod on a dry, level and stable
surface. Fold out the tripod legs to the
limit stop.

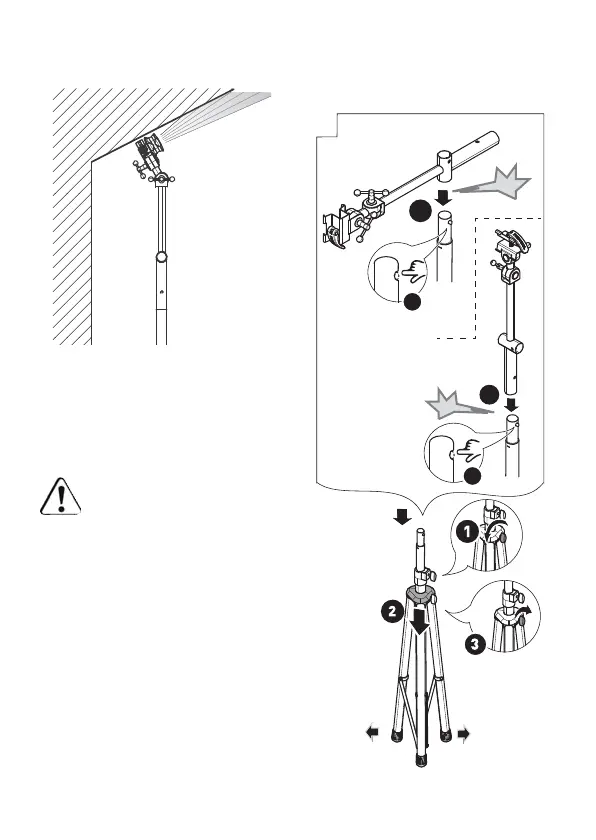

Connecting the tripod and adapter [4]
Open the tripod to the limit stop.
Place the adapter in the required posi-
tion on the tripod up to the limit stop.
Turn the adapter until it clicks into
place.
4
ST DUO 200
click
5
AD-ST DUO 200
5
4
4
click
