13
STEERING COL-
UMN STALKS

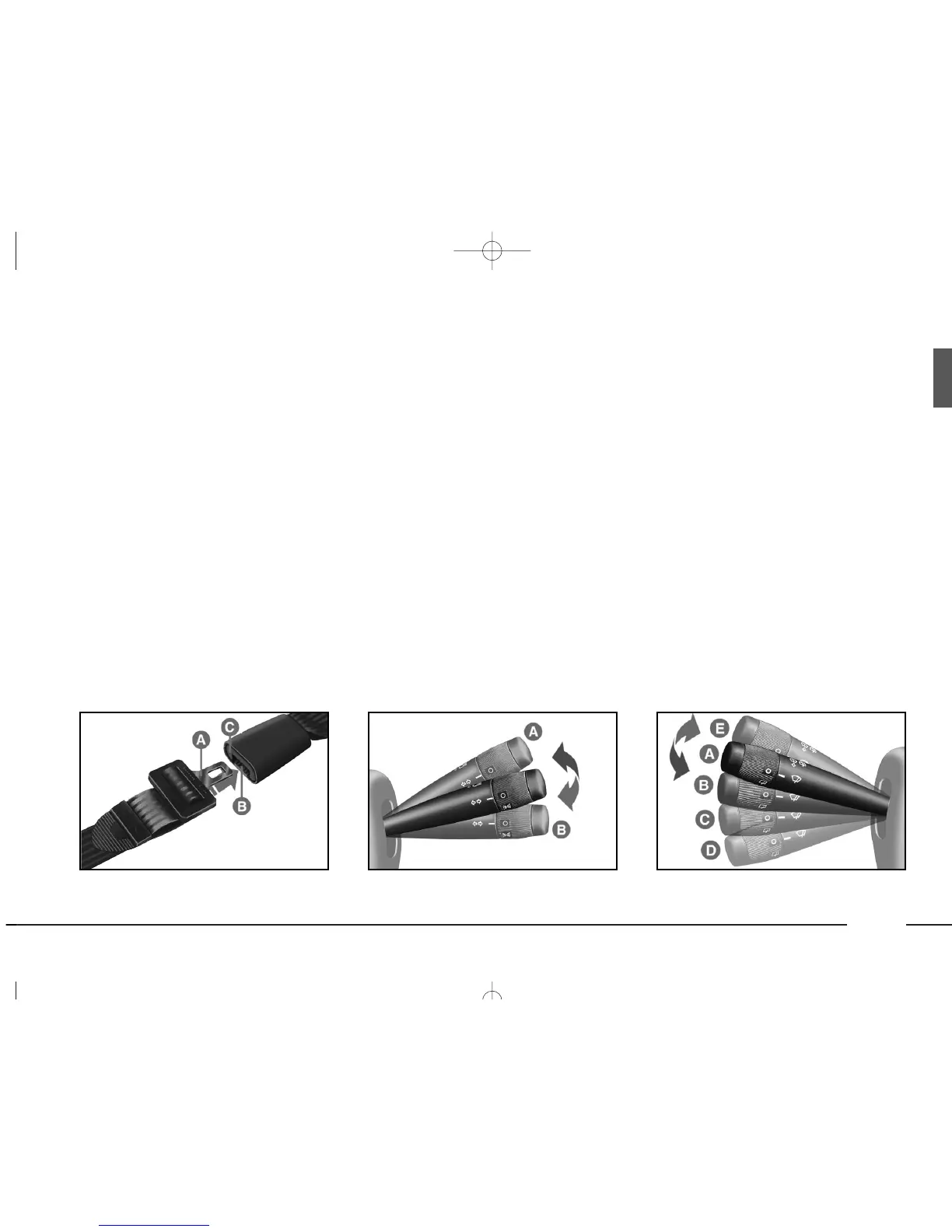

RIGHT-HAND STALK fig. 12
In position A = left turn indicator
lights on.
In position
B = right turn indicator
lights on.
Pulled towards the steering wheel
= flicks.
Ring turned on
O = lights switched
off.
Ring turned on 3
= parking
lights on.
Ring turned on
2
= Low beams.
With ring turned on
2
& stalk
towards the dashboard = high beams.
Fig. 11
To fasten:
insert tongue A in B
on the buckle.
To loosen: press button C.
fig. 11
P4E01355
fig. 12
P4E02023
LEFT-HAND STALK fig. 13
Position A = Windscreen wipers
OFF.
Position
B = Intermittent wipe.
Position
C = Slow continuous
wipe.
Position
D = Quick continuous
wipe.
Position
E (not fixed) = Quick con-
tinuous wipe. This is a unique anti-
panic feature.
Stalk pulled towards the steering
wheel = windscreen washer activated.
Thrust towards the dashboard =
rear window washer/wiper.
Ring on O position = Rearwind
screen wiper OFF.
Ring at
''
position = Rear wind-
screen wiper ON.
fig. 13
P4E01682
