125
IF AN EXTERIOR LIGHT
STOPS WORKING
MAIN BEAM AND
DIPPED HEADLIGHTS
To replace the halogen bulbs of main
beam or dipped headlights, proceed
as follows:
Single-lens headlights

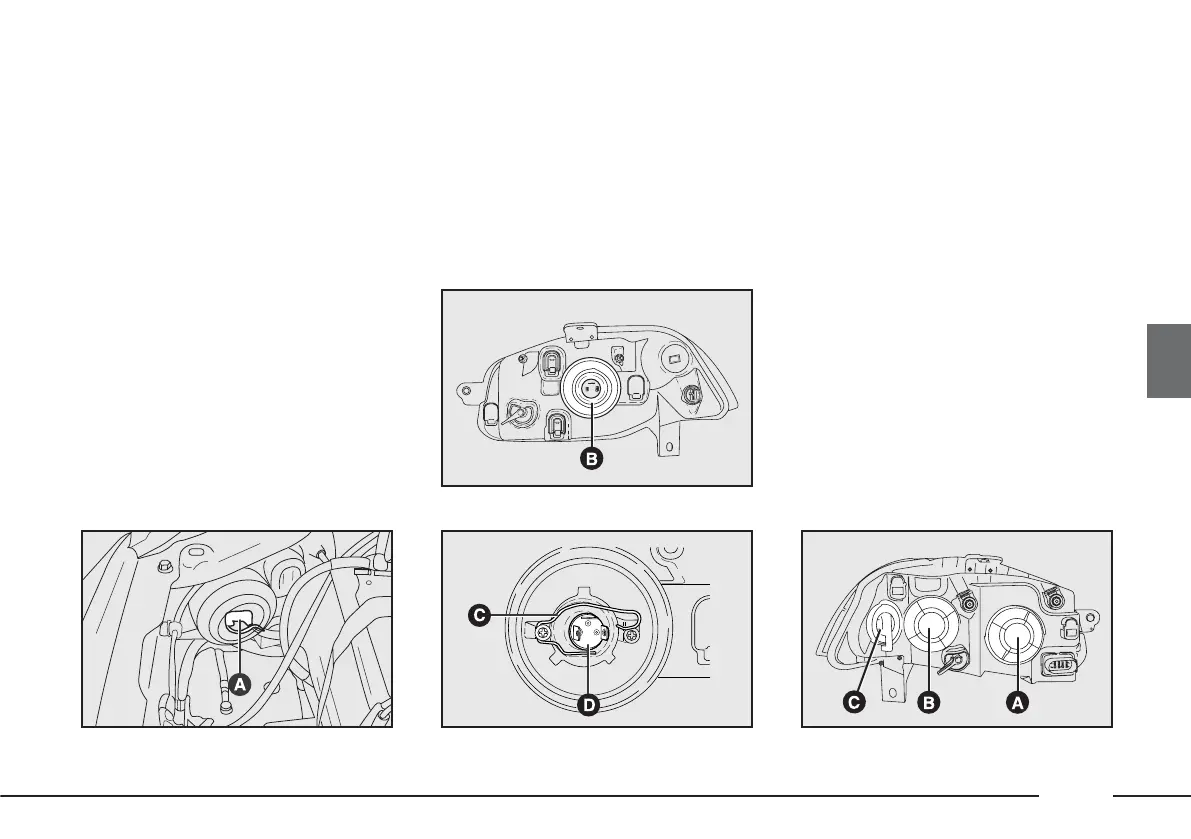

– disconnect connector A-fig. 120;
– remove rubber gaiter B-fig. 121;
– release fixing spring C-fig. 122
then remove bulb D;
– insert the new bulb, aligning the
tabs of the metal part with the
grooves on the curve of the
headlight;
– reattach the fixing spring, refit the
gaiter and reconnect the
connector.
Polyelliptical headlights
– remove cover A-fig. 123 to
replace the dipped beam bulb or B
to replace the main beam bulb;
fig. 123
F0X0104m
fig. 122
F0X0103m
fig. 120
F0X0101m
fig. 121
F0X0102m
