27

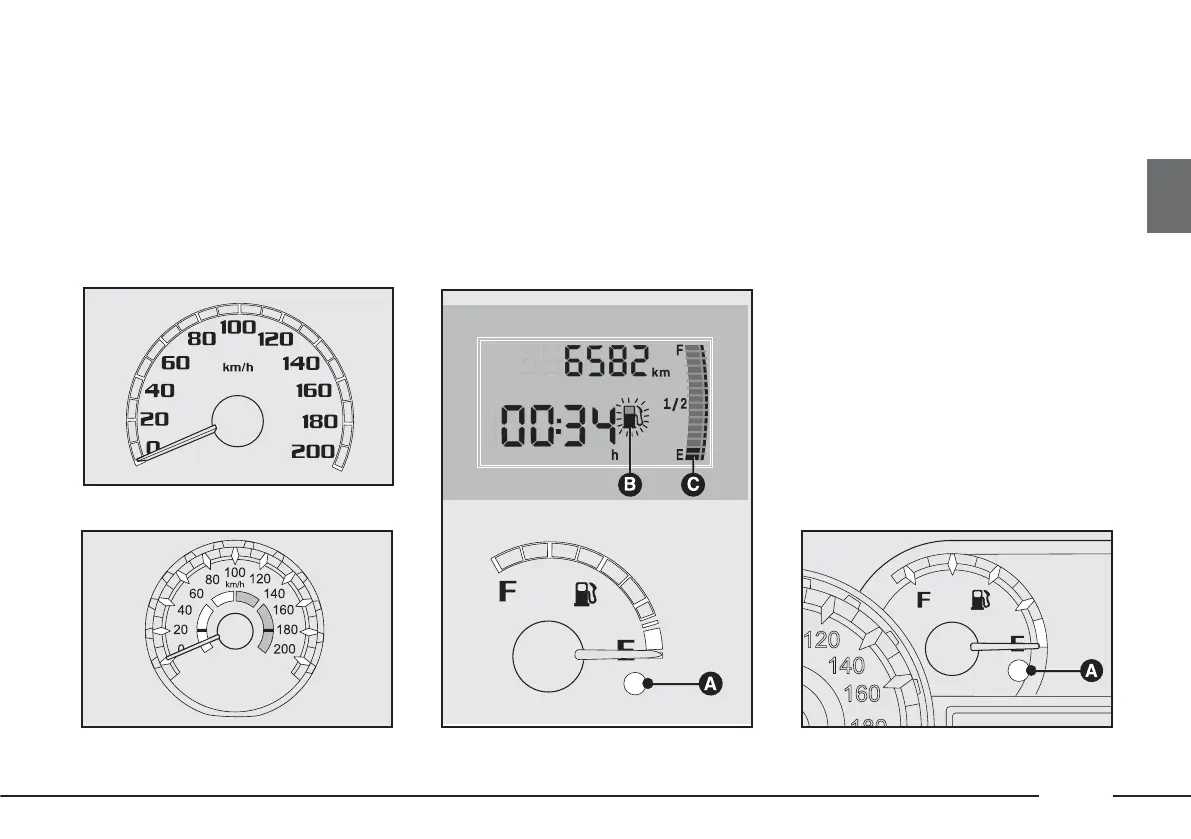

FUEL LEVEL GAUGE
fig. 35-36
The needle shows the amount of
fuel which should be left in the tank.
The reserve warning light A switches
on constantly to indicate that
approximately 5.5–7.5 litres of fuel
are left in the tank. On some
versions, the same indication is
provided by warning light B, which
flashes on the display.
Do not travel with the fuel tank
almost empty: any gaps in fuel
delivery could damage the catalytic
converter.
E - tank empty.
F - tank full.
fig. 34
F0X0300m
fig. 36
F0X0039m
ON BOARD
INSTRUMENTS
SPEEDOMETER fig. 33-34
Depending on the version, the
speedometer may have different full
scale values.
fig. 35
F0X0037m
fig. 33
F0X0018m
