ADJUSTABLE DIFFUSERS
fig. 56-57
The diffusers can be rotated
upwards and downwards.
A - Air flow adjustment control:
– turned to ❏: diffuser open;
– turned to ■: diffuser closed.
B - Lateral air flow adjustment
control.
The diffusers can be rotated
upwards and downwards.
C - Fixed diffusers for side windows
fig. 57.
HEATING AND
VENTILATION
CONTROLS fig. 58
A - Knob to regulate the air
temperature (mixing hot and
cold air).
B - Cursor to control the
recirculation function, preventing
the entrance of air from the
outside.
C - Knob to activate the fan.
D - Air distribution knob.

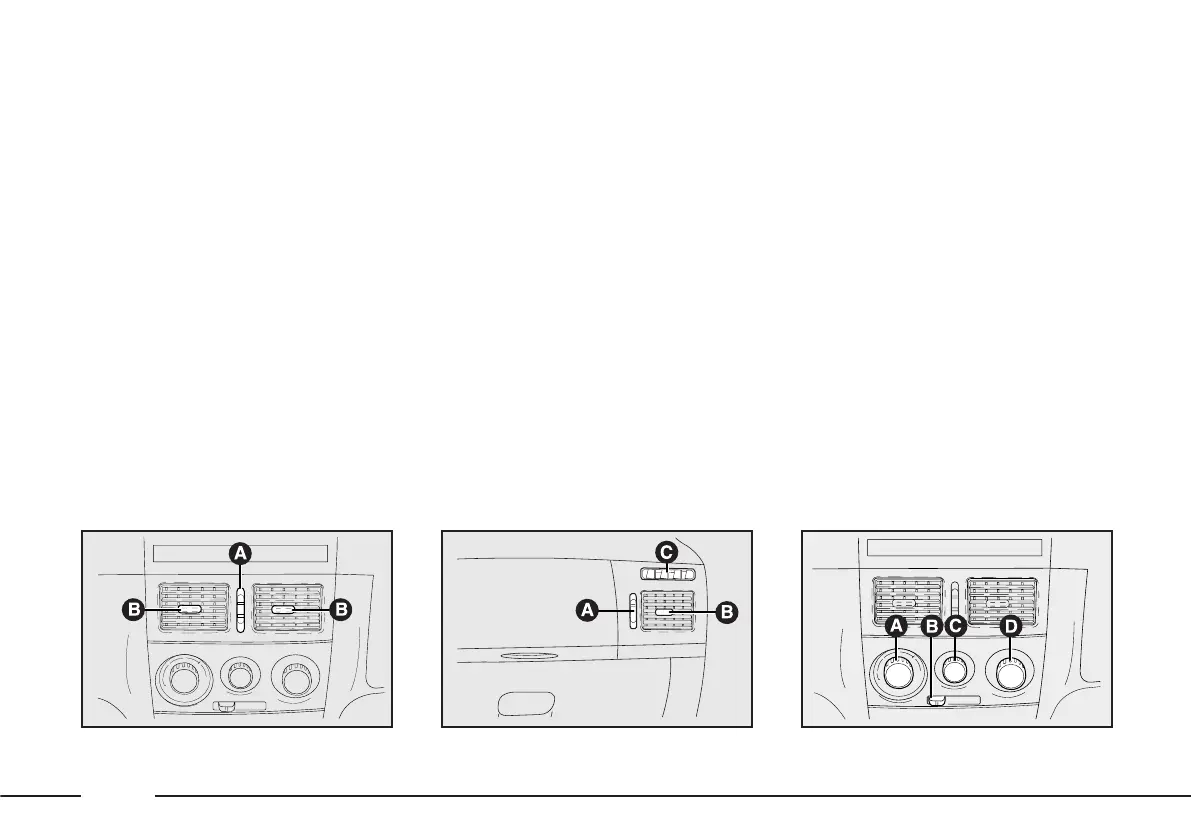

fig. 56 fig. 57
F0X0032m
F0X0031m
fig. 58
F0X0033m
66
