FIBARO RGBW Controller User Manual

XIII Advanced configuration
GENERAL:
1. ALL ON / ALL OFF function activation
Default setting: 255
0 - ALL ON inactive, ALL OFF inactive
1 - ALL ON inactive, ALL OFF active
2 - ALL ON active, ALL OFF inactive
255 - ALL ON active, ALL OFF active
Parameter size: 1 [byte]
6. Associations command class choice
Default setting: 0
0 - NORMAL (DIMMER) - BASIC SET/SWITCH_MULTILEVEL_-
START/STOP
1 - NORMAL (RGBW) - COLOR_CONTROL_SET/STAR-
T/STOP_STATE_CHANGE
2 - NORMAL (RGBW) - COLOR_CONTROL_SET
3 - BRIGHTNESS - BASIC SET/SWITCH_MULTILEVEL_STAR-
T/STOP
4 - RAINBOW (RGBW) - COLOR_CONTROL_SET
Parameter size: 1 [byte]
IN/OUT:
8. Outputs state change mode
Default setting: 0
0 - MODE1 (related parameters: 9-step value, 10-time between
steps)
1 - MODE2 (related parameters: 11-time to change value, relevant
for RGB/RGBW)
Parameter size: 1 [byte]
MODE1
Example: change saturation level from 0% to 99%
Parameter 9: Step = 5
Parameter 10: Time between steps: 10ms
9. Step value (relevant for MODE1)
Default setting: 1
Available settings: 1 - 255
Parameter size: 1[byte]
10. Time between steps (relevant for MODE1)
Default setting: 10 (10ms)
0 - immediate change of state
1-60000 - (1-60000 ms)
MODE2
Example: change saturation level from 0% to 99%
Parameter 11: time for changing from start to end value = 500sec
11. Time for changing from start to end value
Default setting: 67 (3s)
0 - immediate change
1-63 - 20-126- [ms] value*20ms
65-127 - 1-63 [s] [value-64]*1s
129-191 - 10-630[s] [value-128]*10s
193-255 - 1-63[min] [value-192]*1min
Parameter size: 1[byte]
12. Maximum brightening level
Default setting: 255
Available settings: 3-255
Parameter size: 1[byte]
13. Minimum dim level
Default setting: 2
Available settings: 3-255
Parameter size: 1[byte]
14. Inputs / Outputs configuration - relevant for main
controllers other than Home Center 2 only
Default setting: 4369 Controlled device: RGBW, toggle switch
inputs (NORMAL MODE)
Each 4bit refer to given IN/OUT (channel) settings
Note
The maximum leven cannot be lower than
minimum level.
i
Channel 1
(4 bit)
Channel 2
(4 bit)
Channel 3
(4 bit)
Channel 4
(4 bit)
0000 0000 0000 0000
.... .... .... ....
1111 1111 1111 1111
If RGB/RGBW mode is chosen, settings for all 4 channels are
identical. Settings marked with X are forbidden and cannot be sent
to the module.
Settings available for single channel
16. Memorize device status at power cut. Device will be set to
status memorized before power cut.
Default setting: 1
0 - device does not memorize its status at the power cut. Load is
disconnected.
1 - device memorizes its status at the power cut. Load will be set
to the status from before power cut (parameters, current outputs
status, energy)
Parameter size: 1[byte]
ALARM:
30. Alarm of any type (general alarm, flood alarm, smoke
alarm: CO, CO2, temperature alarm).
Default setting: 0
0 - INACTIVE - the device doesn't respond to alarm frames
1 - ALARM ON - the device turns on once alarm is detected (all
channels set to 99%)
2 - ALARM OFF - the device turns off once alarm is detected (all
channels set to 0%)
3 - ALARM PROGRAM - alarm sequence turns on (program
selected in parameter 38)
Parameter size: 1[byte]
38. Alarm sequence program
Default setting: 10
1 - 10 (1-10 specifies alarm program number)
Parameter size: 1[byte]
39. Active PROGRAM alarm time
Default setting: 600
1-65534 (1s-65534s)
Parameter size: 2[byte]
REPORTS:
42. Command class reporting Outputs status change
Default setting: 0
0 - reporting as a result of inputs and controllers actions (SWITCH
MULTILEVEL)
1 - reporting as a result inputs actions (SWITCH MULTILEVEL)
2 - reporting as a result of inputs actions (COLOR CONTROL)
Parameter size: 1[byte]
43. Reporting 0-10v analog inputs change threshold.
Parameter defines a value by which input voltage must change in
order to be reported to the main controller. New value is calculated
based on last reported value:
Default setting: 5 (0,5V)
1-100 - (0,1 - 10V)
Parameter size: 1[byte]
44. Power load reporting frequency (if last reported value differs
from the current value). Reports will also be sent in case of polling.
Default setting: 30 (30s)
1 - 65534 (1s-65534s) - time between reports,
0 - reports are not sent. Reports will only be sent in case of polling
or at turning OFF the device.
Parameter size: 2[byte]
45. Reporting changes in energy consumed by controlled
devices. New, reported energy value is calculated based on last
reported value.
Default setting: 10 (0,1 kWh)
1 - 254 (0,01kWh - 2,54kWh)
0 - changes in consumed energy will not be reported. Reports will
be sent only in case of polling.
Parameter size: 1[byte]
OTHER:
71. Response to BRIGHTNESS set to 0%
Default setting: 1
0 - illumination colour set to white (all channels controlled together)
1 - last set colour is memorized
Parameter size: 1[byte]
72. Starting predefined program when device set to work in
RGB/RGBW mode (parameter 14) - relevant for main
controllers other than Home Center 2 only.
Default setting: 1
1-10 animation program number
Parameter size: 1[byte]
73. Triple click action
Default setting: 0
0 - NODE INFO control frame is sent,
1 - starting favourite program
Parameter size: 1[byte]
MSB LSB
Controlled
device
0
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
(RGBW)
X
(RGBW)
MOMENTARY
(NORMAL MODE)
(RGBW)
MOMENTARY
(BRIGHTNESS MODE)
(RGBW)
MOMENTARY
(RAINBOW MODE)
(RGBW)
TOGGLE
(NORMAL MODE)
(RGBW)
TOGGLE
(BRIGHTNESS MODE)
(RGBW)
TOGGLE W. MEMORY
(NORMAL MODE)
(RGBW)
TOGGLE W. MEMORY
(BRIGHTNESS MODE)
(IN)
ANALOG 0-10V
(SENSOR)
(OUT)
MOMENTARY
(NORMAL MODE)
(OUT)
X
X
(OUT)
(OUT)
TOGGLE
(NORMAL MODE)
(OUT) X
(OUT)
TOGGLE W/MEMORY
(NORMAL MODE)
0 0 0 0
0 0 0 1
0 0 1 0
0 0 1 1
0 1 0 0
0 1 0 1
0 1 1 0
0 1
1 1
1 0
0 0
1 0
0 1
1 0
1 0
1 0
1
1
1 1
0 0
1 1
0 1
1 1
1 0
1 1
1 1 (OUT)
X

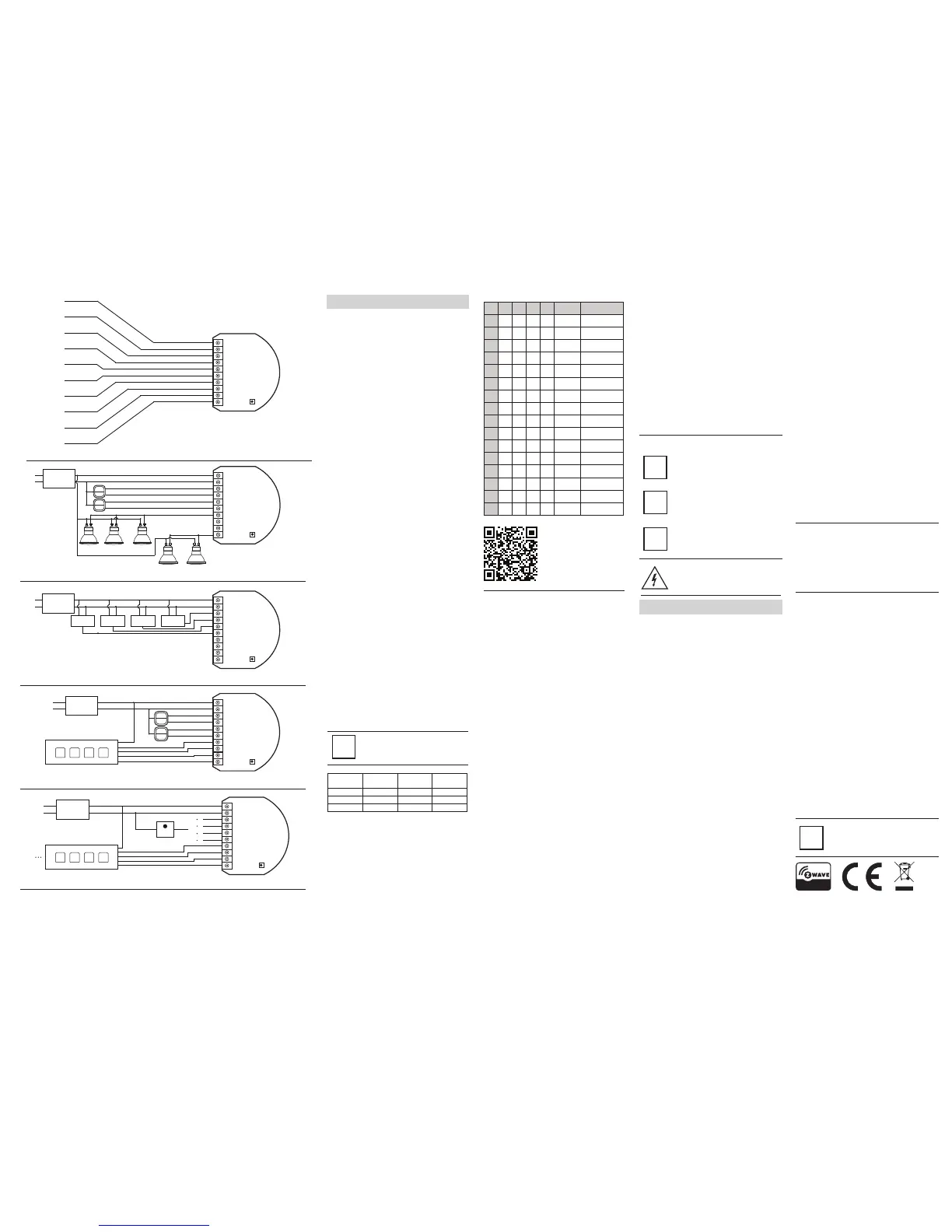

Fig. 6- Terminals description
Fig. 7 - Connecting halogen lighting
Fig. 8 - 0-10 V sensors wiring diagram
Fig. 9 - RGBW strip wiring diagram
Fig 10. - RGBW strip with 0-10 V potentiometer wiring diagram
NOTES FOR THE DIAGRAM
12/24VDC - power supply signal
GND - power supply ground signal
IN1 - potential free / 0-10V input 1
IN2 - potential free / 0-10V input 2
IN3 - potential free / 0-10V input 3
IN4 - potential free / 0-10V input 4
R - output assigned to IN1
G - output assigned to IN2
B - output assigned to IN3
W - output assigned to IN4
Note!
Parameter 14 recommended
settings, for controllers other than
Home Center 2, are available under
the following link:
http://manuals.fibaro.com/
ras-rgbw-controller-en.pdf
Locate the antenna as far from metal elements as
possible (connecting wires, bracket rings, etc.) in
order to prevent interferences.
i
Metal surfaces in the direct vicinity of the antenna
(e.g. flush mounted metal boxes, metal door frames)
may impair signal reception!
i
TIPS FOR ARRANGING THE ANTENNA:
Do not cut or shorten the antenna - its length is
perfectly matched to the band in which the system
operates
i
Input type:
- ANALOG - sensor with analog, 0-10V interface. Impossible to
control from main controllers interface.
- MOMENTARY - momentary switch,
- TOGGLE - toggle switch,
- TOGGLE W/MEMORY - toggle switch (ON active for closing
switch terminals; OFF active for opening switch terminals)
Input operating mode (controlled with switch keys):
- NORMAL - each given switch key assigned to one output
channel,
- BRIGHTNESS - all of the channels are controlled together,
- RAINBOW - transition through all colours spectrum (operates on
3 RGB channels only)
Parameter size: 2[byte]
FIBARO
RGBW
CONTROLLER
B
IN1
GND
IN2
IN3
IN4
R
G
B
12/24VDC
W
B
12/24 VDC
Adapter
Wind
Sensor
Temperature
Sensor
Humidity
Sensor
Light
Sensor
12V
GND
IN1
IN2
IN3
IN4
Red
Green
Blue
White
FIBARO
RGBW
CONTROLLER
FIBARO
RGBW
CONTROLLER
B
12/24 VDC
Adapter
230V AC
12V
GND
IN1
IN2
IN3
IN4
Red
Green
Blue
White
FIBARO
RGBW
CONTROLLER
B
12/24 VDC
Adapter
230V AC
0-10V
12V
GND
IN1
IN2
IN3
IN4
Red
Green
Blue
White
12V
R
G
B
W
B
12/24 VDC
Adapter
12V
GND
IN1
IN2
IN3
IN4
Red
Green
Blue
White
FIBARO
RGBW
CONTROLLER
12V
R
G
B
W
12V
R
G
B
W
12V
R
G
B
W
EPILEPSY WARNING:
Stroboscope effect and rapid light changes may
potentially trigger seizures for people with
photosensitive epilepsy!
XIX. GUARANTEE
This Device may be used with all devices
certified with Z-Wave certificate and should be
compatible with such devices produced by
other manufacturers.
Any device compatible with Z-Wave may be added
to Fibaro system.
i
1. FIBAR GROUP S.A. with its registered office in Poznan, ul.
Lotnicza 1, 60-421 Poznań, entered into the Register of
Entrepreneurs of the National Court Register maintained by the
District Court for Poznań-Nowe Miasto and Wilda in Poznań, VIII
Commercial Division of the National Court Register (KRS) under
number: 553265, NIP 7811858097, REGON: 301595664, share
capital PLN 1,182,100 paid in full, other contact information is
available at: www.fibaro.com (hereinafter "the Manufacturer")
guarantees that the device sold (hereinaftr: "the Device" is free from
material and manufacturing defects.
2. The Manufacturer shall be responsible for malfunctioning of the
Device resulting from physical defects inherent in the Device that
cause its operation to be incompatible with the specifications within
the period of:
- 24 months from the date of purchase by the consumer,
- 12 months from the date of purchase by a business customer (the
consumer and business customer are further collectively referred to
as "Customer").
3. The Manufacturer shall remove any defects revealed during the
guarantee period, free of charge, by repairing or replacing (at the
sole discretion of the Manufacturer) the defective components of the
Device with new or regenerated components. The manufacturer
reserves the right to replace the entire Device with a new or
regenerated device. The Manufacturer shall not refund money paid
for the device.
4. Under special circumstances, the Manufacturer may replace the
Device with a different device most similar in technical characteristics.
5. Only the holder of a valid guaranty document shall be entitled to
make claims under guarantee.
6. Before making a complaint, the Manufacturer recommends using
the telephone or online support available at https://www.fibaro.com/-
support/.
7. In order to make a complaint, the Customer should contact the
Manufacturer via the email address given at https://www.fibaro.com/-
support/.
8. After the complaint has been properly filed, the Customer will
receive contact details for the Authorized Guarantee Service
("AGS"). The customer should contact and deliver the Device to
AGS. Upon receipt of the Device, the manufacturer shall inform the
Customer of the return merchandise authorization number (RMA).
9. Defects shall be removed within 30 days from the date of
delivering the Device to AGS. The guarantee period shall be
extended by the time in which the Device was kept by AGS.
10. The faulty device shall be provided by the Customer with
complete standard equipment and documents proving its purchase.
11. The cost of transporting the Device in the territory of the Republic
of Poland shall be covered by the Manufacturer. The costs of the
Device transport from other countries shall be covered by the
Customer. For unjustified complaints, AGS may charge the
Customer with costs related to the case.
12. AGS shall not accept a complaint claim when:
- the Device was misused or the manual was not observed,
- the Device was provided by the Customer incomplete, without
accessories or nameplate,
- it was determined that the fault was caused by other reasons than
a material or manufacturing defect of the Device
- the guarantee document is not valid or there is no proof of
purchase,
13. The guarantee shall not cover:
- mechanical damages (cracks, fractures, cuts, abrasions, physical
deformations caused by impact, falling or dropping the device or
other object, improper use or not observing the operating manual);
- damages resulting from external causes, e.g.: flood, storm, fire,
lightning, natural disasters, earthquakes, war, civil disturbance, force
majeure, unforeseen accidents, theft, water damage, liquid leakage,
battery spill, weather conditions, sunlight, sand, moisture, high or low
temperature, air pollution;
- damages caused by malfunctioning software, attack of a computer
virus, or by failure to update the software as recommended by the
Manufacturer;
- damages resulting from: surges in the power and/or telecommuni-
cation network, improper connection to the grid in a manner
inconsistent with the operating manual, or from connecting other
devices not recommended by the Manufacturer.
- damages caused by operating or storing the device in extremely
adverse conditions, i.e. high humidity, dust, too low (freezing) or too
high ambient temperature. Detailed permissible conditions for
operating the Device are defined in the operating manual;
- damages caused by using accessories not recommended by the
Manufacturer
- damages caused by faulty electrical installation of the Customer,
including the use of incorrect fuses;
- damages caused by Customer's failure to provide maintenance and
servicing activities defined in the operating manual;
- damages resulting from the use of spurious spare parts or
accessories improper for given model, repairing and introducing
alterations by unauthorized persons;
- defects caused by operating faulty Device or accessories.
14. The guarantee shall not cover natural wear and tear of the Device
and its components listed in the operating manual and in technical
documentation as such elements have a defined operational life.
15. The Device Guarantee shall not exclude, limit or suspend the
Customer's warranty rights.
16. The Manufacturer shall not be liable for damages to property
caused by defective device. The Guarantor shall not be liable for
indirect, incidental, special, consequential or punitive damages, or
for any damages, including, inter alia, loss of profits, savings, data,
loss of benefits, claims by third parties and any other damages
arising from or related to the use of the Device.
This device complies with Part 15 of the FCC Rules
Operation is subject to the following two conditions:
1. This device may not cause harmful interference
2. This device must accept any interference received, including
interference that may cause undesired operation. This equipment
has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Industry Canada (IC) Compliance Notice
This device complies with Industry Canada license-exempt RSSs.
Operation is subject to the following two conditions: (1) this device
may not cause interference, and (2) this device must accept any
interference, including interference that may cause undesired
operation of the device.
Cet appareil est conforme aux normes d’exemption de licence RSS
d’Industry Canada. Son fonctionnement est soumis aux deux
conditions suivantes: (1) cet appareil ne doit pas causer d’interféren-
ce et (2) cet appareil doit accepter toute interférence, notamment les
interférences qui peuvent affecter son fonctionnement.
Note
Changes and modifications not expressly approved by the
manufacturer or registrant of this equipment can void your authority
to operate this equipment under Federal Communications
Commission’s rules.
Simplified EU declaration of conformity:
Hereby, Fibar Group S.A. declares that the device is in compliance
with Directive 2014/53/EU. The full text of the EU declaration of
conformity is available at the following internet address:
www.manuals.fibaro.com
WEEE Directive Compliance:
Device labelled with this symbol should not be disposed with other
household wastes. It shall be handed over to the applicable
collection point for the recycling of waste electrical and electronic
equipment.
Attention!
This product is not a toy. Keep away from children and animals!

FIBARO RGBW Controller Specifications

General

Brand	FIBARO
Model	RGBW Controller
Category	Controller
Language	English
