GAS 24 VAC APPLIANCE SECTION

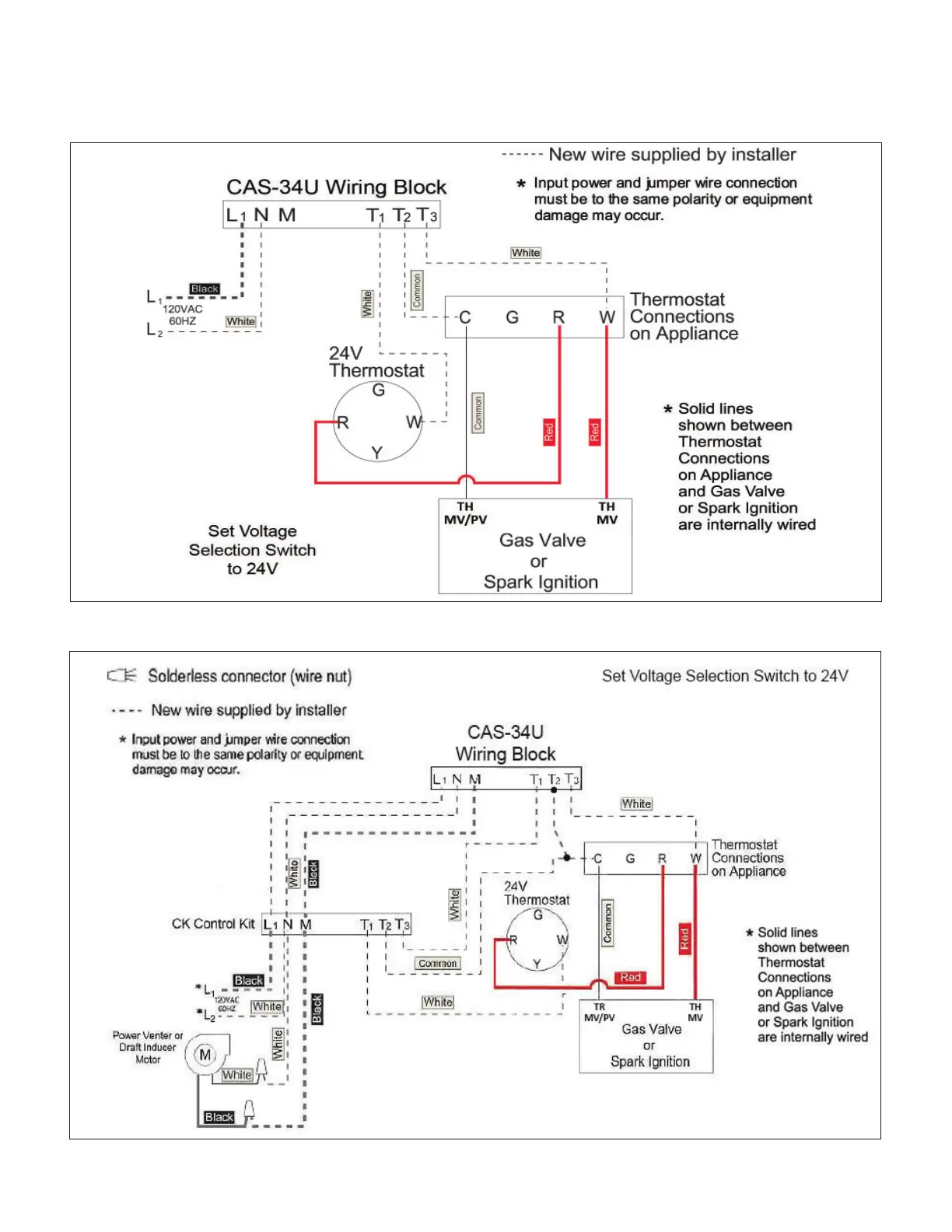

Diagram F - Power Vent Single 24V Furnace
EXTERNAL WIRING CONNECTIONS
Refer to Figures 7 thru 13 for appropriate wiring method.
Diagram E - Chimney Vent Single 24V Furnace
P/N 780107600 Rev B 05/23
