page 11 of 16

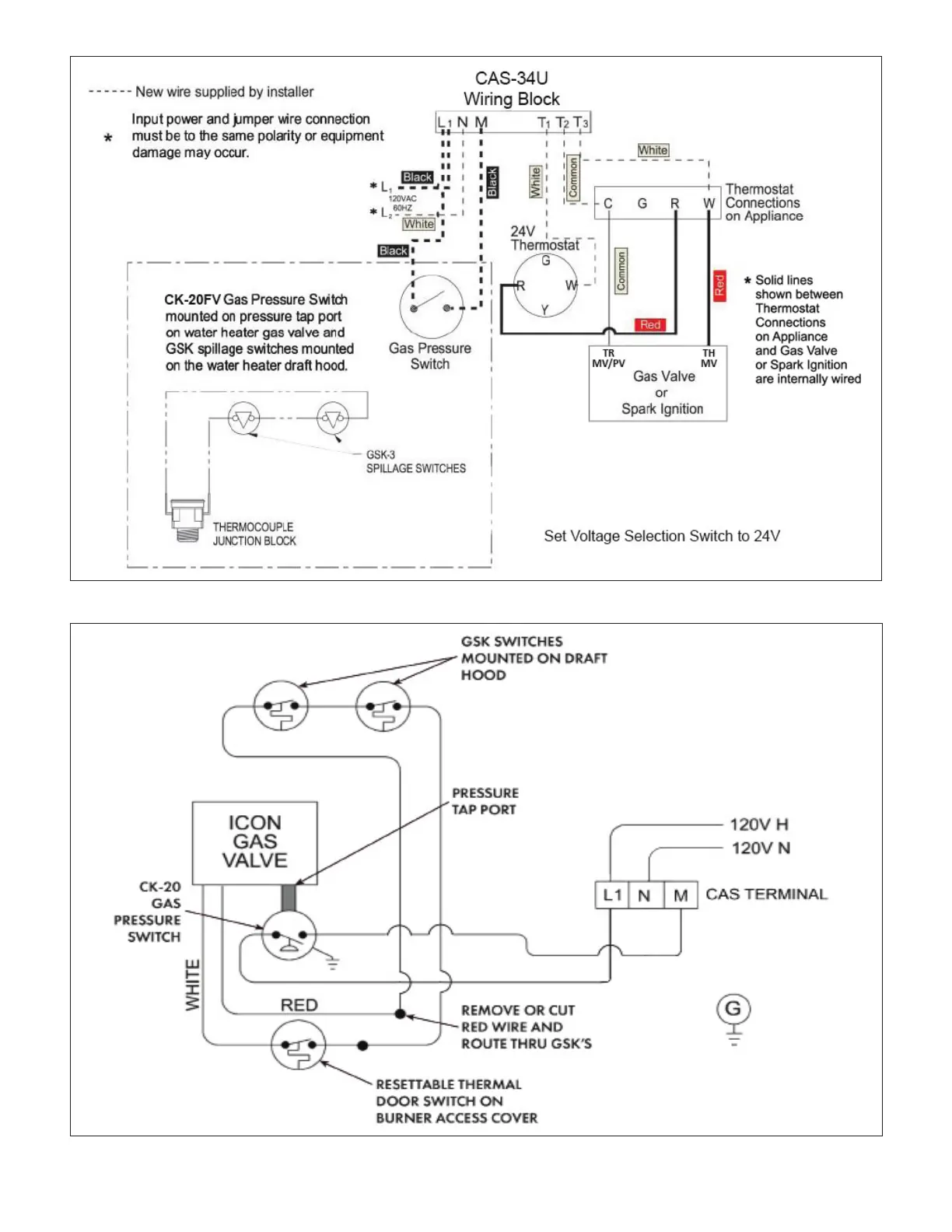

Diagram G - Chimney Vent 24V Furnace and 30 mV Water Heater with CK-20FV and CK-20FG

P/N 780107600 Rev B 05/23

Diagram H - Wiring with a Smart Valve Water Heater

Set Voltage Selection Switch to 24V
